RN9318

Description
Wide Band Low Power Amplifier, 10MHz Min, 1000MHz Max, SM-19, 4 PIN
CategoryWireless rf/communication    Radio frequency and microwave
File Size202KB,4 Pages
ManufacturerAPI Technologies
Websitehttp://www.apitech.com/about-api
Download Datasheet Parametric Compare View All

RN9318 Overview

Wide Band Low Power Amplifier, 10MHz Min, 1000MHz Max, SM-19, 4 PIN

RN9318 Parametric

Parameter NameAttribute value
MakerAPI Technologies
Reach Compliance Codecompliant
Other featuresI/P POWER-MAX (PEAK)=27DBM
structureCOMPONENT
Gain13.5 dB
Maximum input power (CW)13 dBm
Maximum operating frequency1000 MHz
Minimum operating frequency10 MHz
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
RF/Microwave Device TypesWIDE BAND LOW POWER
Maximum voltage standing wave ratio2
Cross Reference Guide
RN9318 / SRN9318*
* Part number for additional environmental screening.

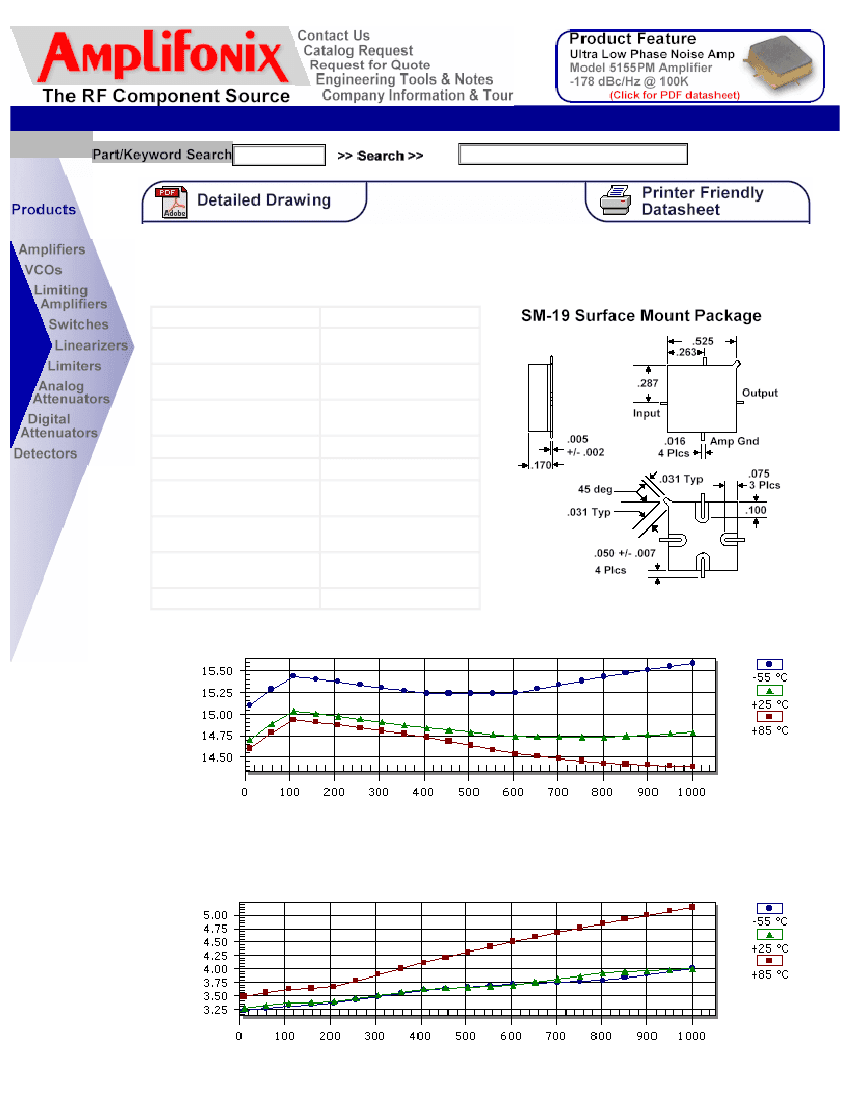

Performance Data
Frequency
Gain
Noise Figure
P
1dB
3
rd
Order Intercept
2
nd
Order Intercept
VSWR
Reverse Isolation
Power Supply
Operating Temperature
10.0 - 1000.0 MHz
14.7 dB Typical
13.5 dB Min
3.8 dB Typical
5.5 dB Max
16.0 dBm Typical
14.5 dBm Min
30.0 dBm Typical
42.0 dBm Typical
1.5/2.0 Input Typ/Max
1.5/2.0 Output Typ/Max
-18.5 dB Typical
-17.0 dB Min
15.0 Volts
47.0 mA
-55.0 - 85.0 °C
Package Drawing
Gain
dB
Frequency (MHz)
Noise Figure
dB
