M24308/24-2F datasheet, PDF - EEWORLD Datasheet

M24308/24-2F: Description15 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG; CategoryThe connector The connector; File Size395KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

M24308/24-2F Overview

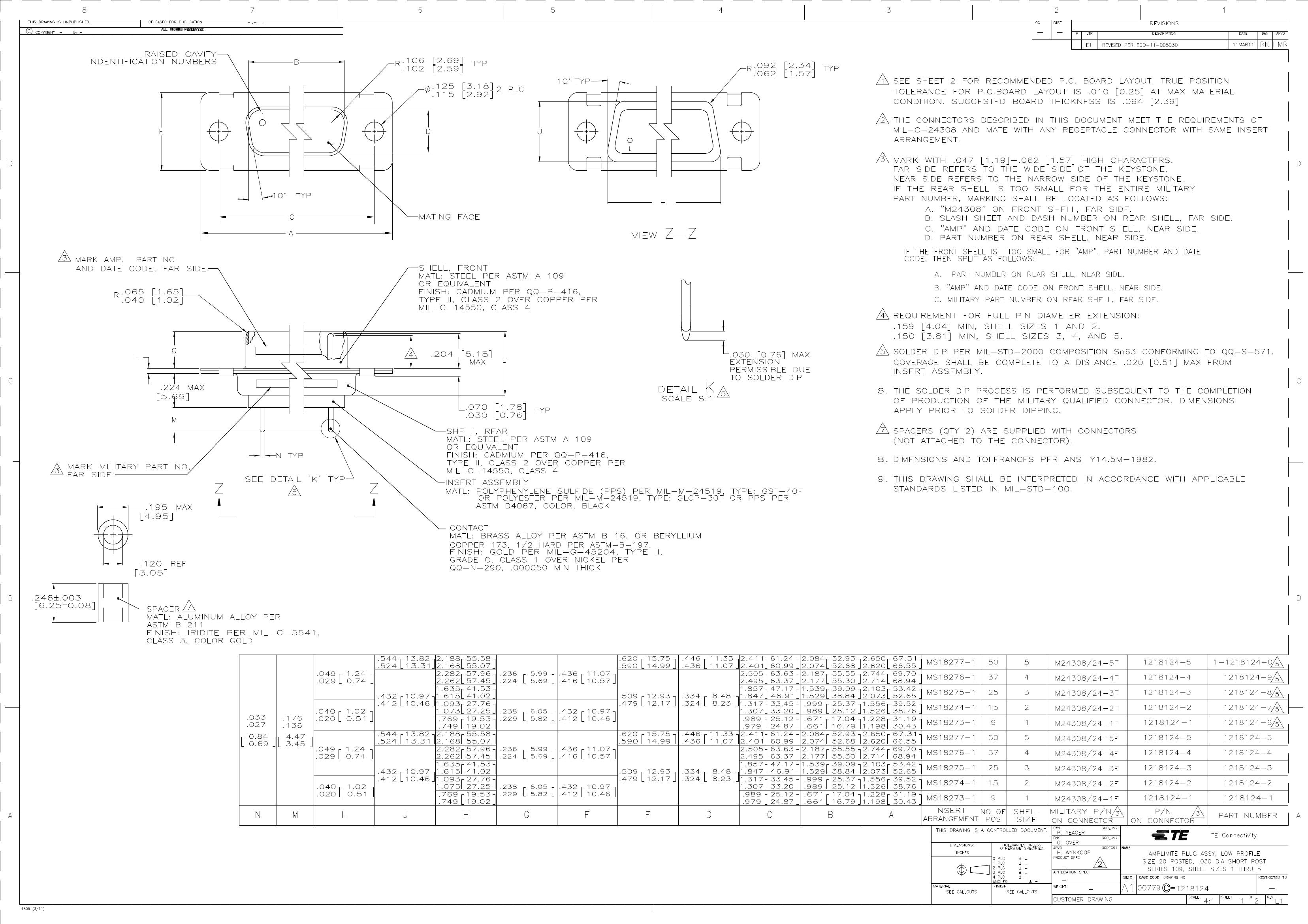

15 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	unknown
Factory Lead Time	8 weeks 4 days
Other features	STANDARD: MIL-C-24308, LOW PROFILE

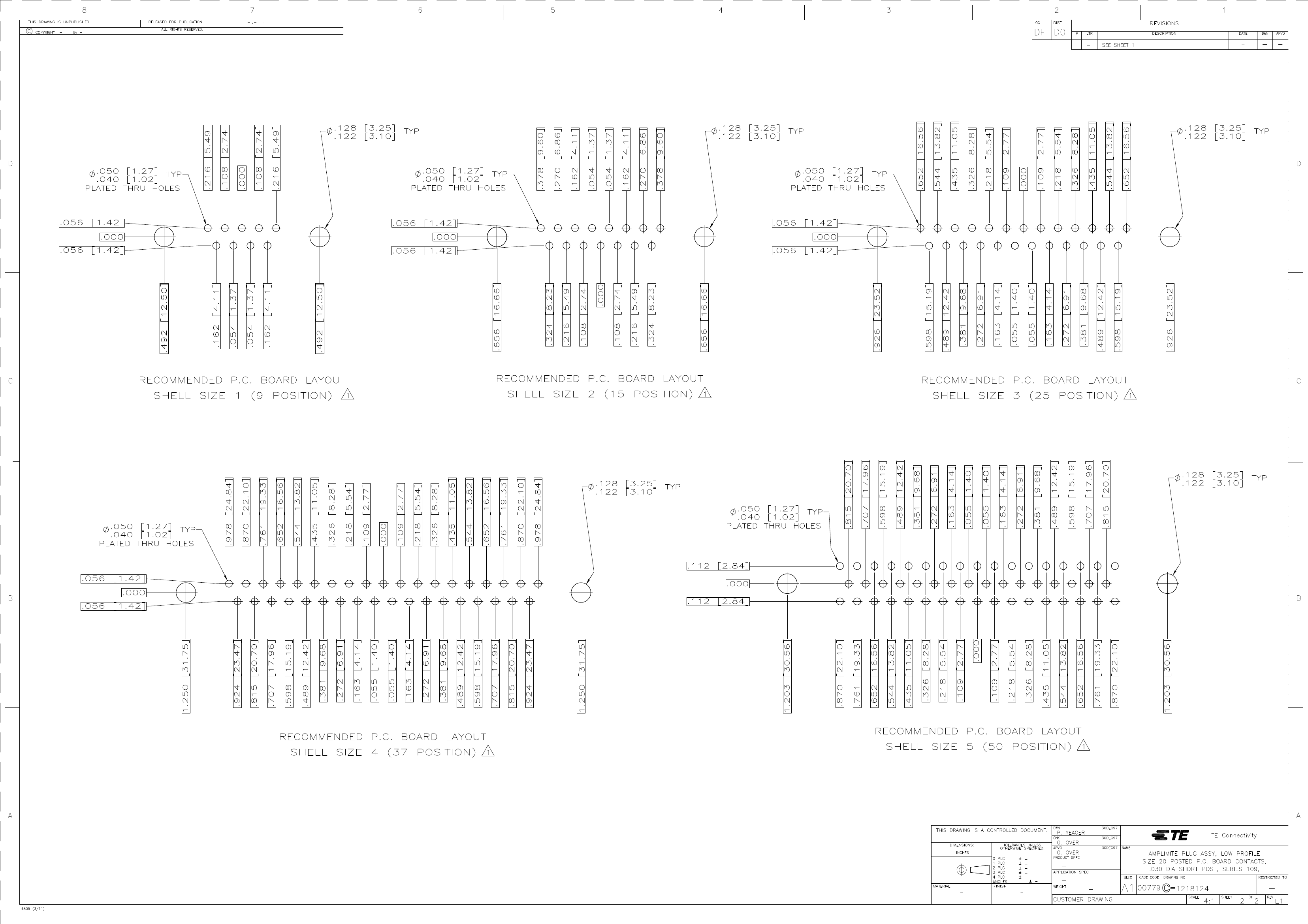

Board mount options	HOLE .118-.137
body width	0.509 inch
subject depth	0.273 inch
body length	1.556 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
contact mode	STAGGERED
Contact style	RND PIN-SKT
empty shell	NO
Filter function	NO
Insulator color	BLACK
insulator material	POLYPHENYLENE SULFIDE
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	HOLE .115-.125
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-50 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.84 mm
Plating thickness	50u inch
Shell surface	CADMIUM
Shell material	STEEL
Housing size	2/A
Terminal length	0.176 inch
Terminal pitch	2.74 mm
Termination type	SOLDER
Total number of contacts	15

	M24308/24-2F	M24308/24-5F
Description	15 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG	50 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG
Is it Rohs certified?	incompatible	incompatible
Maker	TE Connectivity	TE Connectivity
Reach Compliance Code	unknown	unknown
Other features	STANDARD: MIL-C-24308, LOW PROFILE	STANDARD: MIL-C-24308, LOW PROFILE
Board mount options	HOLE .118-.137	HOLE .118-.137
body width	0.509 inch	0.62 inch
subject depth	0.273 inch	0.273 inch
body length	1.556 inch	2.65 inch
Body/casing type	PLUG	PLUG
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	MALE	MALE
contact mode	STAGGERED	STAGGERED
Contact style	RND PIN-SKT	RND PIN-SKT
empty shell	NO	NO
Filter function	NO	NO
Insulator color	BLACK	BLACK
insulator material	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation option 1	HOLE .115-.125	HOLE .115-.125
Installation option 2	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	2	3
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-50 °C	-50 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED
PCB contact row spacing	2.84 mm	2.84 mm
Plating thickness	50u inch	50u inch
Shell surface	CADMIUM	CADMIUM
Shell material	STEEL	STEEL
Housing size	2/A	5/D
Terminal length	0.176 inch	0.176 inch
Terminal pitch	2.74 mm	2.77 mm
Termination type	SOLDER	SOLDER
Total number of contacts	15	50
