Part Number:
Status:
Overview:
Description:
0039000145
Active
minifit_jr
4.20mm (.165") Pitch Mini-Fit™ Crimp Terminal, Male, Brass, Gold (Au) Contact
Plating, Lead-free, 22-28 AWG, Reel
Documents:

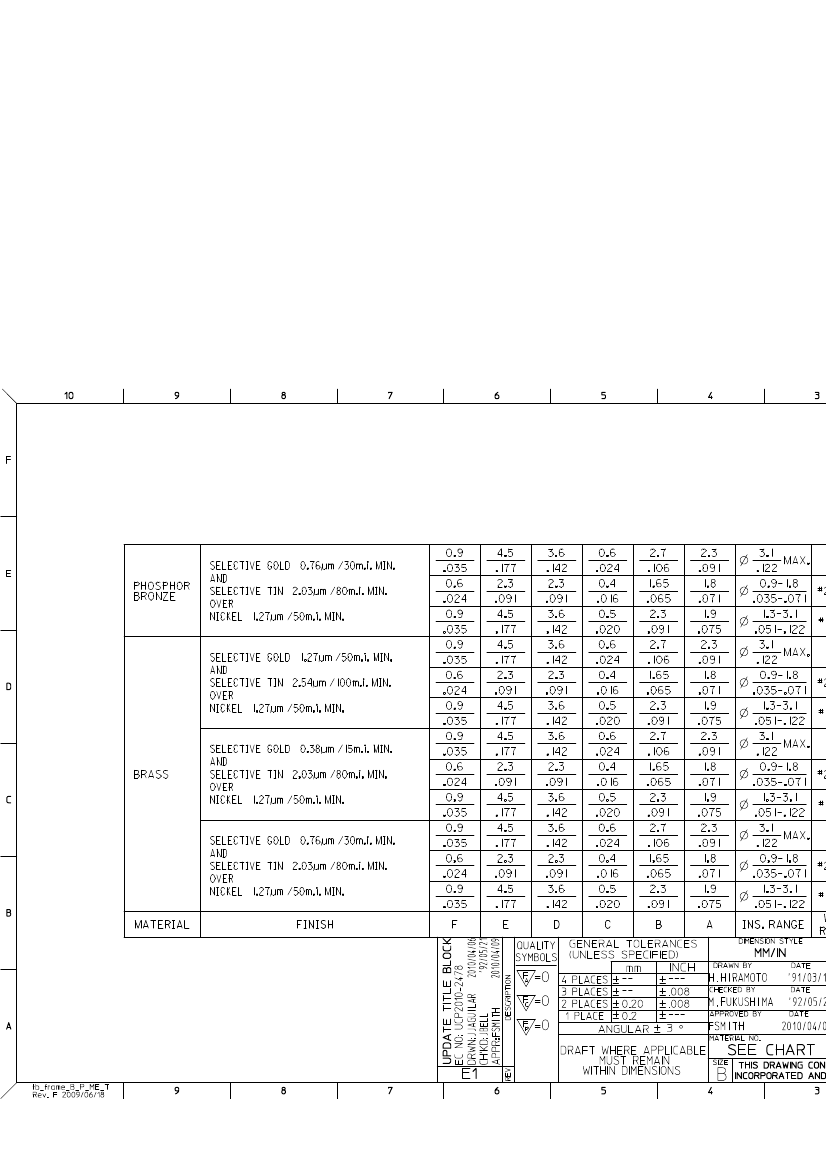

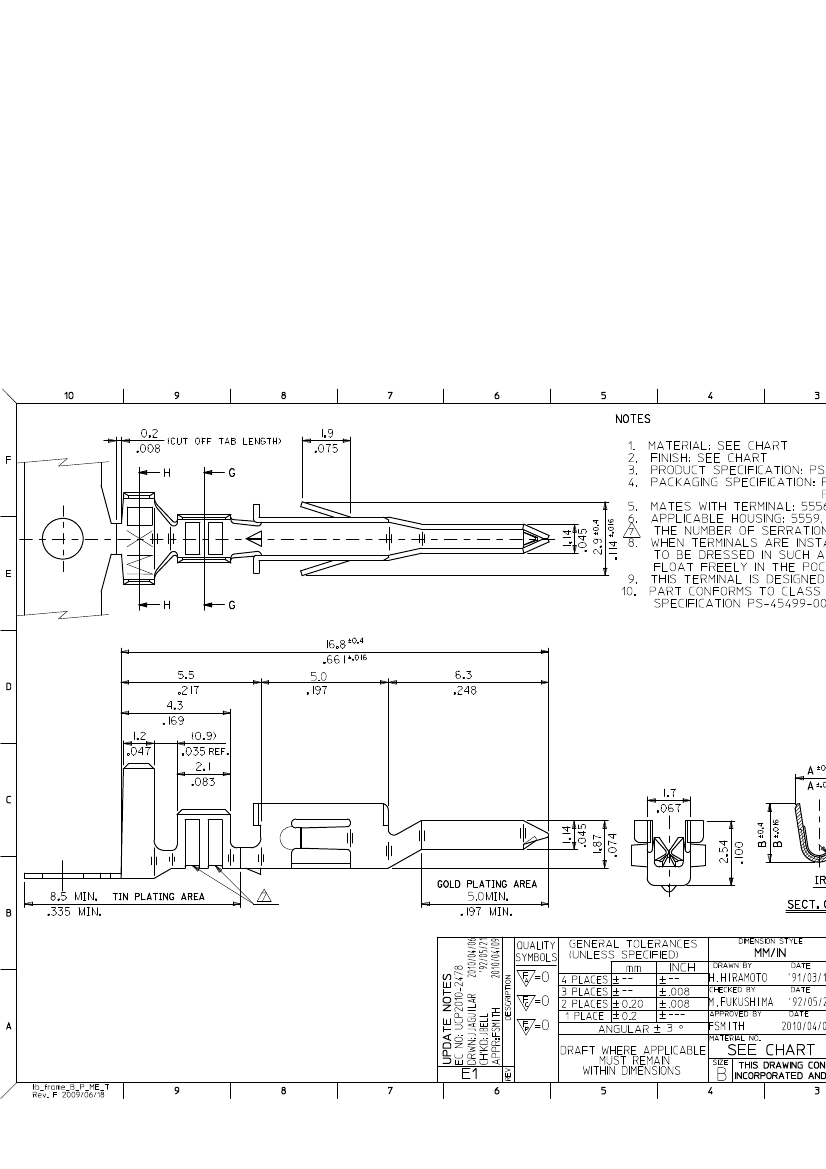

Drawing (PDF)
Product Specification PS-5556-001 (PDF)
Product Specification PS-5556-002 (PDF)
Product Specification PS-5556-003 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Crimp Quality Equipment
Overview
Product Name
Crimp Terminals
5558
Yes
minifit_jr
Mini-Fit®
Physical
Durability (mating cycles max)
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
30
Male
Brass
Gold
Tin
Reel
50.8
1.27
101.6
2.54
Crimp or Compression
0.90-1.80mm (.035-.071")
22, 24, 26, 28
N/A
EU RoHS
ELV and
Complia
REACH S
Contains
Halogen
Status
Halogen
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
5558Se
Electrical
Current - Maximum per Contact
Voltage - Maximum
9A
600V
Mates
5556 M
Material Info
Old Part Number
5558GS8
Use W
5559 M
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
Test Summary
PK-5558-001
PS-5556-001, PS-5556-002, PS-5556-003
SD-5558-002
TS-5556-002
Applic
Tooling
found b
Crimp H
contain
Specifi
Global
Descri
FineAd
Applica
T2 Term
Tooling
FineAd
Fit Jr.™
Termin
