BTY803P-FBB: DescriptionMicro-Change Molded Junction Box, Top Mount, 8 Ports, 2(IO) per port, LEDs for PNP sensors, with Integral; File Size132KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

BTY803P-FBB Overview

Micro-Change Molded Junction Box, Top Mount, 8 Ports, 2(IO) per port, LEDs for PNP sensors, with Integral

Preview

Download Datasheet

View All

This document was generated on 06/02/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

1201140083

Active

microchange_m12_connectors

Micro-Change® Molded Junction Box, Top Mount, 8 Ports, 2(IO) per port, LEDs for

PNP sensors, with Integral Mini-Change® Home Run Connector

Documents:

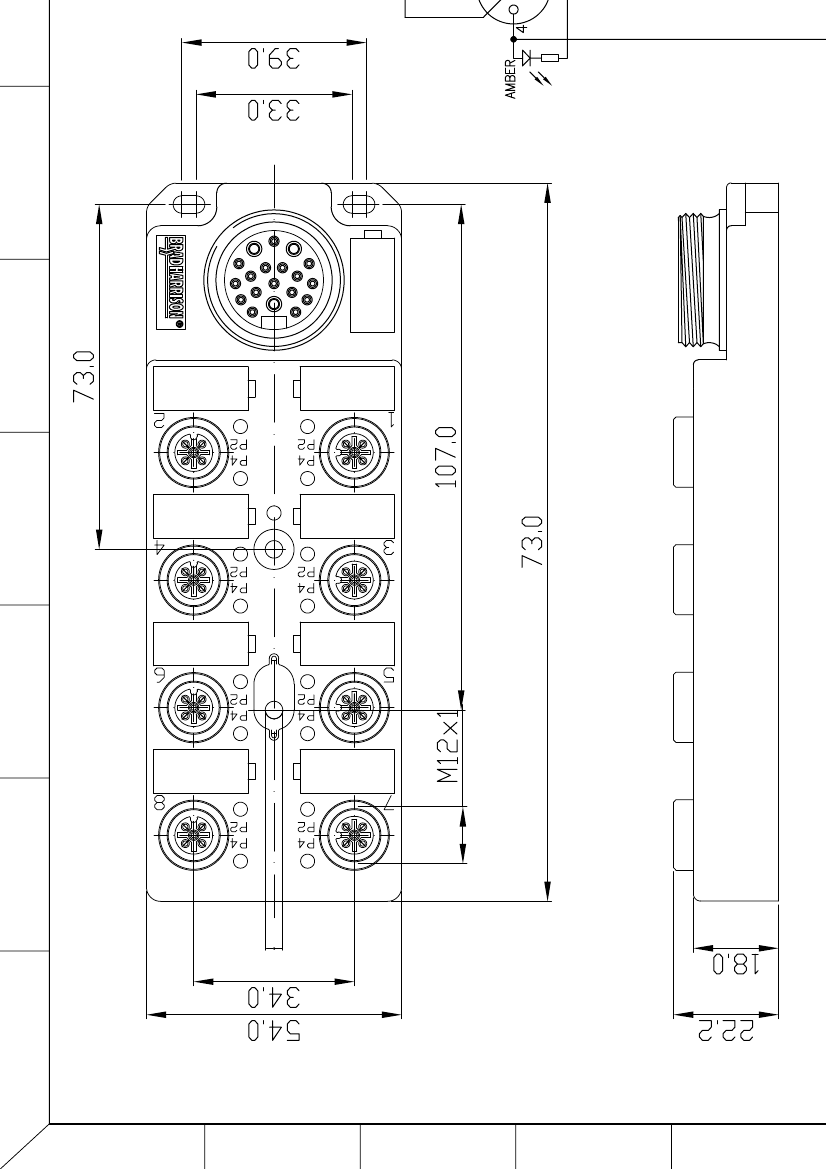

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR6837

E152210

EU RoHS

ELV and

Complia

REACH S

Not Revi

Halogen

Status

Not Revi

Need mo

environm

General

Product Family

Series

Comments

IP Rating

NEMA Rating

Overview

Product Name

Passive Distribution Boxes

120114

PNP SENSORS

IP68

NEMA 6

microchange_m12_connectors

Micro-Change® (M12)

Email pro

For a mu

Complian

Please vi

non-prod

120114

Physical

Bus I/O

Cable Connector Orientation

Cable Length

Home Run Cable Length

Home Run Connector

Home Run Interface

Keyway

LED Indicator

Material - Cable Jacket

Material - Housing

Material - Metal

Material - Plating Mating

Orientation

Poles

Poles (wired)

Ports

Temperature Range - Operating

Wiring Configuration

Micro-Change® (M12)

90° Angle

N/A

Mini-Change® - 19 pole

Integrated Connector

Single

Yes

N/A

PBT

Copper Alloy

Gold over Nickel

Top Mount

-25°C to +90°C

Dual I/O per Port

Electrical

Current - Maximum per Contact

Functional Wiring

Voltage - Maximum

12A per module, 4A per port

Parallel

10-30V DC

Material Info

Old Part Number

BTY803P-FBB

Reference - Drawing Numbers

Sales Drawing

SD-120114-075

This document was generated on 06/02/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
