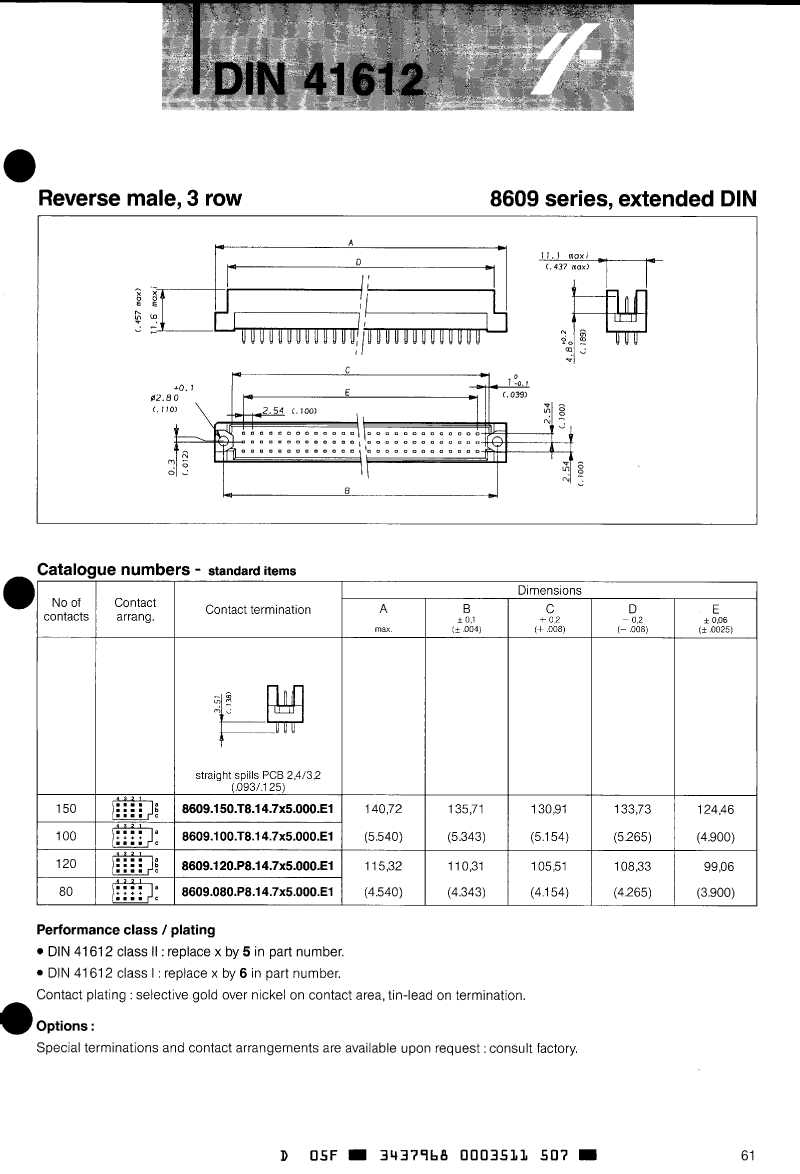

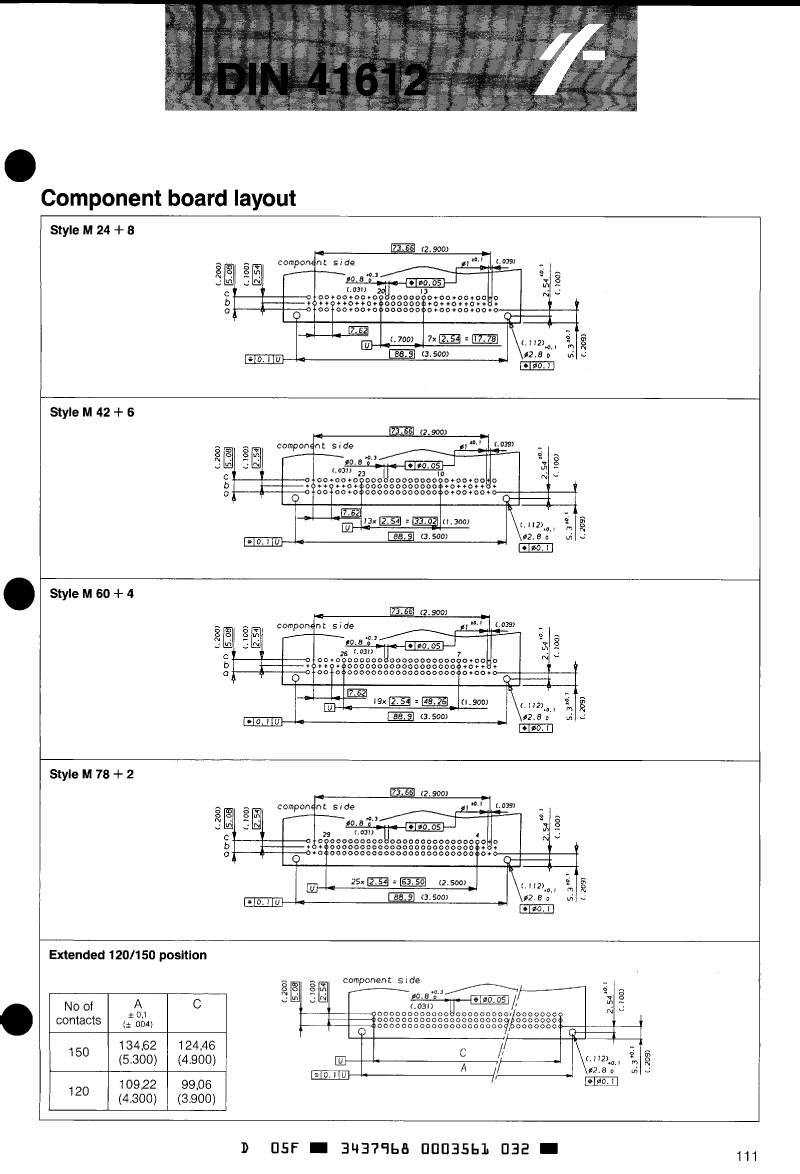

Board Euro Connector, 80 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle
| Parameter Name | Attribute value |
| Maker | Amphenol |
| Reach Compliance Code | compliant |
| body width | 0.437 inch |
| subject depth | 0.457 inch |
| body length | 4.54 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD EURO CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | GOLD |
| Contact point gender | MALE |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | YES |
| Dielectric withstand voltage | 1000VAC V |
| Durability | 250 Cycles |
| maximum insertion force | .9452 N |
| Insulation resistance | 1000000000000 Ω |
| Manufacturer's serial number | 8609 |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Loaded row name | A,C |
| PCB row number | 3 |
| Number of rows loaded | 3 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.54 mm |
| polarization key | ENDS |
| Rated current (signal) | 1.5 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.138 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 80 |
| Evacuation force-minimum value | .139 N |
| 8609.080.P8.14.765.000.E1 | 8609.120.P8.14.755.000.E1 | 8609.120.P8.14.765.000.E1 | 8609.150.T8.14.765.000.E1 | 8609.150.T8.14.755.000.E1 | 8609.080.P8.14.755.000.E1 | |
|---|---|---|---|---|---|---|
| Description | Board Euro Connector, 80 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle | Board Euro Connector, 120 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle | Board Euro Connector, 120 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle | Board Euro Connector, 150 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle | Board Euro Connector, 150 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle | Board Euro Connector, 80 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle |
| Maker | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant |
| body width | 0.437 inch | 0.437 inch | 0.437 inch | 0.437 inch | 0.437 inch | 0.437 inch |
| subject depth | 0.457 inch | 0.457 inch | 0.457 inch | 0.457 inch | 0.457 inch | 0.457 inch |
| body length | 4.54 inch | 4.54 inch | 4.54 inch | 5.54 inch | 5.54 inch | 4.54 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD EURO CONNECTOR | BOARD EURO CONNECTOR | BOARD EURO CONNECTOR | BOARD EURO CONNECTOR | BOARD EURO CONNECTOR | BOARD EURO CONNECTOR |
| Contact to complete cooperation | AU ON NI | AU ON NI | AU ON NI | AU ON NI | AU ON NI | AU ON NI |
| Contact completed and terminated | GOLD | GOLD | GOLD | GOLD | GOLD | GOLD |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE |
| Contact resistance | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | YES | YES | YES | YES | YES | YES |
| Dielectric withstand voltage | 1000VAC V | 1000VAC V | 1000VAC V | 1000VAC V | 1000VAC V | 1000VAC V |
| Durability | 250 Cycles | 200 Cycles | 250 Cycles | 250 Cycles | 200 Cycles | 200 Cycles |
| maximum insertion force | .9452 N | .9452 N | .9452 N | .9452 N | .9452 N | .9452 N |
| Insulation resistance | 1000000000000 Ω | 1000000000000 Ω | 1000000000000 Ω | 1000000000000 Ω | 1000000000000 Ω | 1000000000000 Ω |
| Manufacturer's serial number | 8609 | 8609 | 8609 | 8609 | 8609 | 8609 |
| Plug contact pitch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch |
| Match contact row spacing | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Loaded row name | A,C | A,B,C | A,B,C | A,B,C | A,B,C | A,C |
| PCB row number | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of rows loaded | 3 | 3 | 3 | 3 | 3 | 3 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| polarization key | ENDS | ENDS | ENDS | ENDS | ENDS | ENDS |
| Rated current (signal) | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A |
| Guideline | UL, CSA | UL, CSA | UL, CSA | UL, CSA | UL, CSA | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.138 inch | 0.138 inch | 0.138 inch | 0.138 inch | 0.138 inch | 0.138 inch |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 80 | 120 | 120 | 150 | 150 | 80 |
| Evacuation force-minimum value | .139 N | .139 N | .139 N | .139 N | .139 N | .139 N |
