503159-1110: Description1.50mm (.059") Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Through Hole, Vertical, without Peg, 11 Circuits; File Size201KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

503159-1110 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	503159-1110	-	-	View	Buy Now

503159-1110 Overview

1.50mm (.059") Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Through Hole, Vertical, without Peg, 11 Circuits

Preview

Download Datasheet

View All

This document was generated on 04/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Description:

5031591110

Active

1.50mm (.059") Pitch CLIK-Mate™ Wire-to-Board PCB Receptacle, Single Row,

Through Hole, Vertical, without Peg, 11 Circuits

Documents:

3D Model

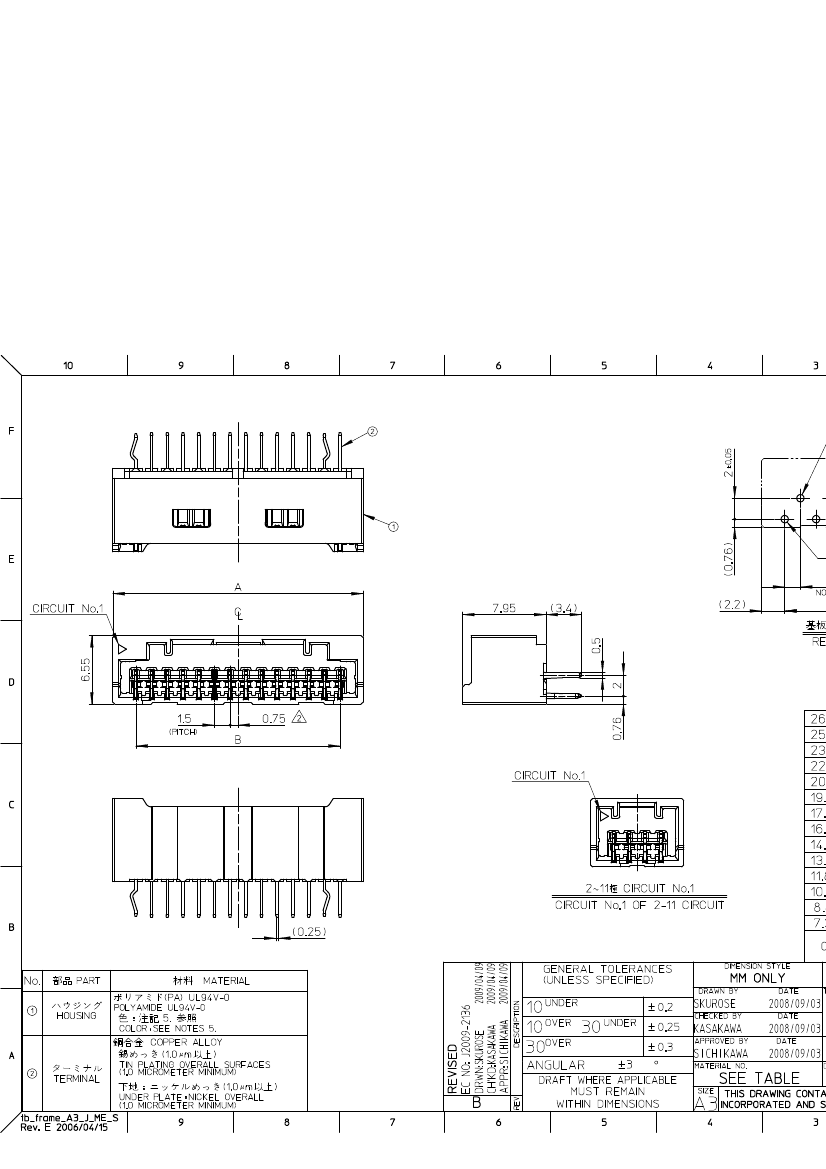

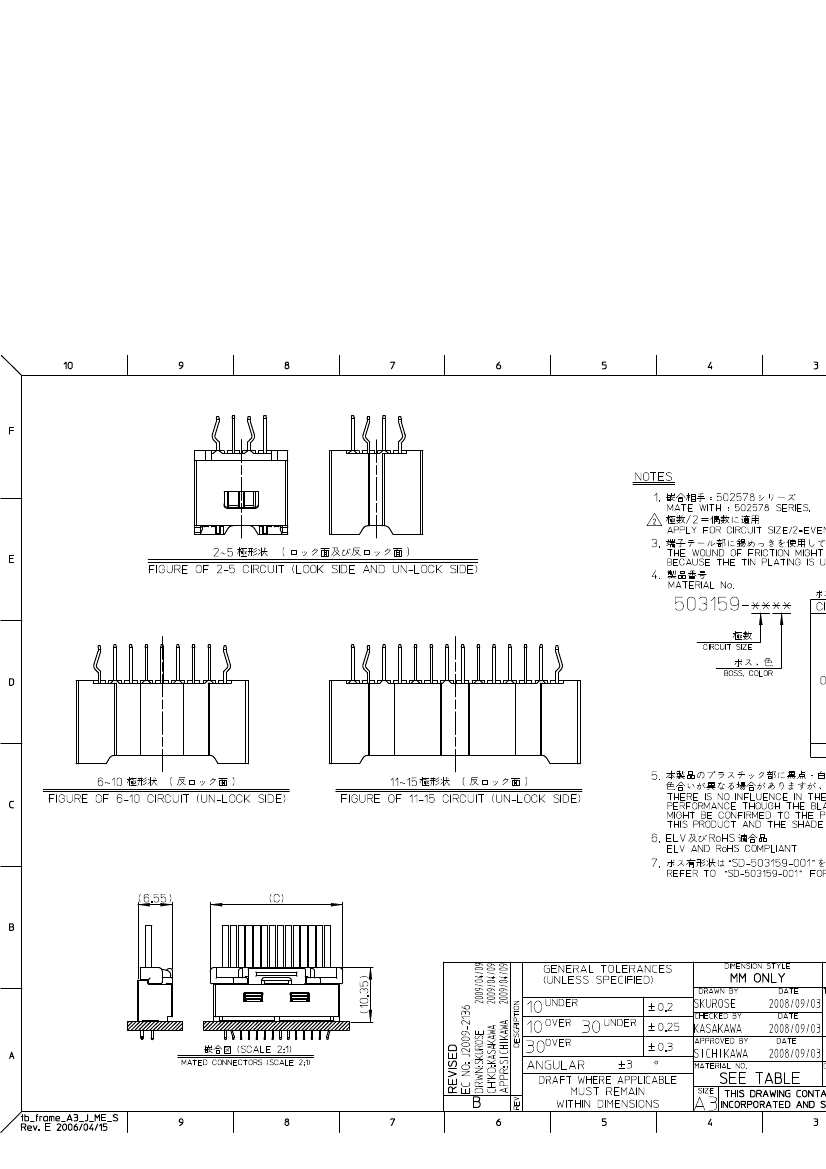

Drawing (PDF)

Product Specification PS-503159-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

Product Name

PCB Receptacles

503159

Wire-to-Board

CLIK-Mate™

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

11

Beige

30

No

Yes

Copper Alloy

Tin

1

Vertical

No

Yes

0.062 In

1.60 mm

Tray

0.059 In

1.50 mm

Yes

No

-25°C to +85°C

Through Hole

EU RoHS

ELV and

Complia

REACH S

Contains

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

Search

503159

Mates

502578

Termin

Electrical

Current - Maximum per Contact

Voltage - Maximum

2A

100V

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-503159-001, RPS-503159-001, RPS-503159-003

SD-503159-002

This document was generated on 04/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

503159-1110 Related Products

	503159-1110	SD-503159-002
Description	1.50mm (.059") Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Through Hole, Vertical, without Peg, 11 Circuits	1.50mm (.059") Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Through Hole, Vertical, without Peg, 11 Circuits
