DCMV37SNK126 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DCMV37SNK126

DCMV37SNK126: DescriptionD Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Receptacle,; CategoryThe connector The connector; File Size160KB，2 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/; Environmental Compliance

Download Datasheet Parametric View All

DCMV37SNK126 Overview

D Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Receptacle,

DCMV37SNK126 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ITT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: MIL-C-24308
body width	0.494 inch
subject depth	0.3 inch
body length	2.732 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	55 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	PLASTIC
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	HOLE .112-.124
Installation method	STRAIGHT
Installation type	BOARD AND PANEL
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	30u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Terminal length	0.152 inch
Terminal pitch	2.7432 mm
Termination type	SOLDER
Total number of contacts	37
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

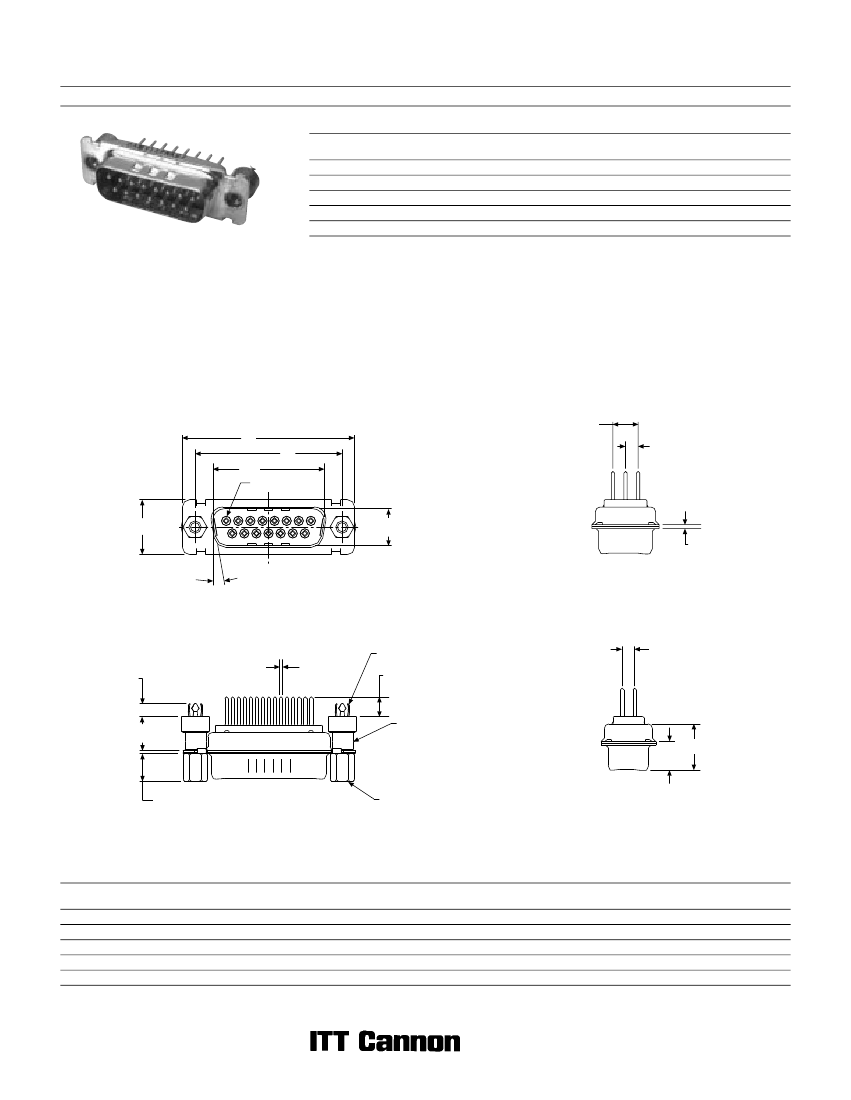

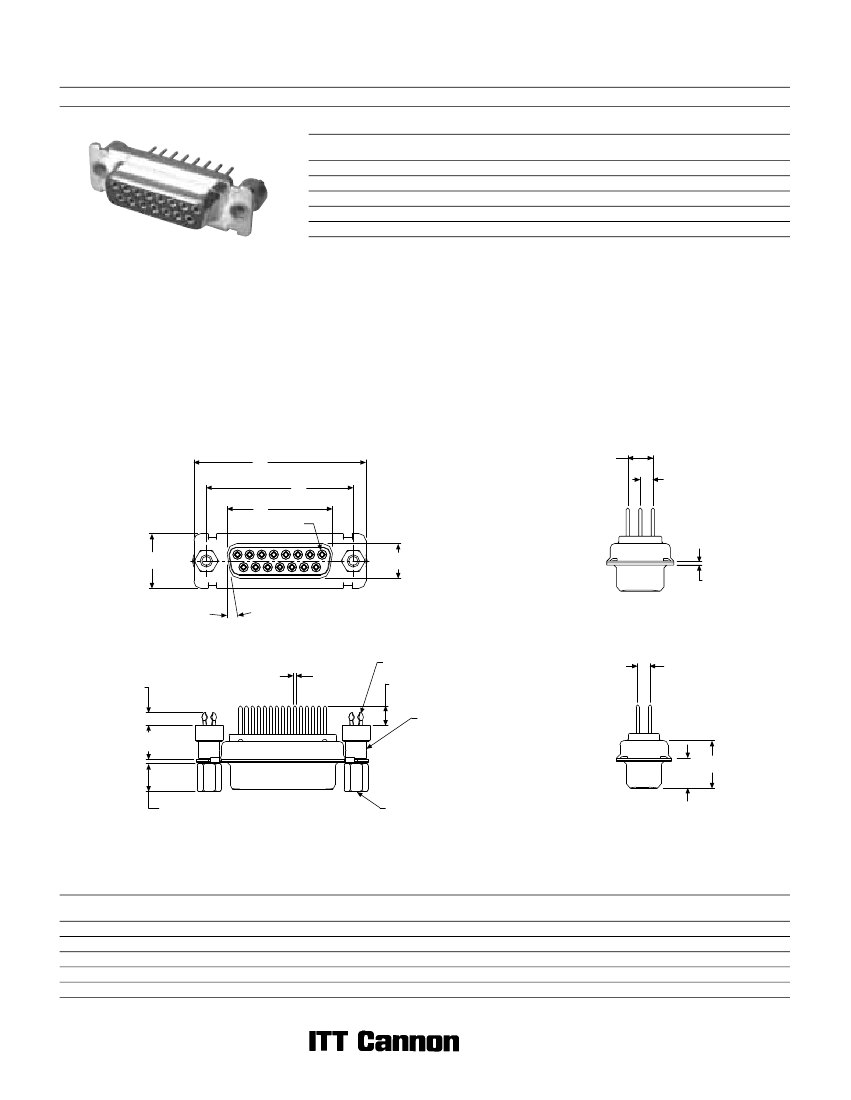

D Subminiature

Straight Solder Termination (Machined) — Standard PC Tails

Plug

Part Numbers

Shell Size

Layout

Standoff

DEMV9PNK87

DAMV15PNK87

DBMV25PNK87

DCMV37PNK87

DDMV50PNK87

Standoff &

Boardlock

DEMZ9PNK87

DAMZ15PNK87

DBMZ25PNK87

DCMZ37PNK87

DDMZ50PNK87

D*M

Selection Guide

For Product Features, Specifications,

Materials and Finishes, see pages 2-3.

Reader’s Resource

For contact cavity arrangements,

see page 224.

For P.C. hole patterns, see page 274.

For panel cutouts, see page 221.

For hardware views (Standard), see page 226.

Standoff, Boardlock &

Screw Lock

DEMN9PNK87

DAMN15PNK87

DBMN25PNK87

DCMN37PNK87

DDMN50PNK87

Note: For contacts with 30 microinches gold substitute K127 for K87. Example: DEMN9PNK127

DD Configuration

Engaging Face

POSITION 1

5,69

(.224)

2,84

(.112)

10°

Hardware removed for clarity

2,92

(.115)

Ø 0,76

(.030)

BOARDLOCK

4,52

(.178)

2,84

(.112)

7,62

0,25

(.300

.010)

STANDOFF

# 4-40 UNC

6,50

0,25

(.256

.010)

SCREW LOCK

# 4-40 UNC

Hardware removed for clarity

Dimensions

Shell Size

±0,38

(.015)

30,81 (1.213)

39,14 (1.541)

53,04 (2.088)

69,32 (2.729)

66,93 (2.635)

±0,13

(.005)

16,92 (.666)

25,25 (.994)

38,96 (1.534)

55,42 (2.182)

52,81 (2.079)

±0,13

(.005)

24,99 (.984)

33,32 (1.312)

47,04 (1.852)

63,50 (2.500)

61,11 (2.406)

±0,13

(.005)

8,36 (.329)

11,07 (.436)

±0,38

(.015)

12,55 (.494)

15,37 (.605)

±0,25

(.010)

10,72 (.422)

10,82 (.426)

±0,368

(.0145)

6,693 (.2635)

—

±0,41

(.016)

—

6,84 (.269)

±0,25

(.010)

0,76 (.030)

0,99 (.039)

Dimensions are shown in mm (inch)

Dimensions subject to change
