BB-5263T datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> BB-5263T

Preview

BB-5263T: DescriptionBRASS, TIN FINISH, PUSH-ON TERMINAL; CategoryThe connector terminals; File Size138KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

BB-5263T Overview

BRASS, TIN FINISH, PUSH-ON TERMINAL

BB-5263T Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
terminal gender	FEMALE
Terminal and terminal strip types	PUSH-ON TERMINAL
Conductor cross section	2 mm2
Wire gauge	14 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Description:

Documents:

Drawing (PDF)

0190020025

Active

Avikrimp™ Fully Insulated Quick Disconnect, Female, for 14-16 AWG Wire, Mylar Tape

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

TUV

UL

LR18689

R72090224

E79133

General

Product Family

Series

Crimp Quality Equipment

Product Name

Type

Quick Disconnects

19002

Yes

Avikrimp™

Quick Disconnect

Physical

Barrel Type

Flammability

Gender

Glow-Wire Compliant

Insulation

Lock to Mating Part

Material - Metal

Orientation

Packaging Type

Polarized to Mating Part

Tab Thickness

Tab Width

Temperature Range - Operating

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Closed

94V-2

Female

No

Nylon (PA)

None

Brass

Straight

Adhesive Tape on Reel

No

0.81mm (.032")

6.35mm (.250")

-65°C to +105°C

3.94mm (.155") max.

14, 16

1.30 - 2.00

EU RoHS

ELV and

Complia

REACH S

Contains

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

Search

19002S

Electrical

Voltage - Maximum

300V

Use W

19001-

Material Info

Old Part Number

BB-5263T

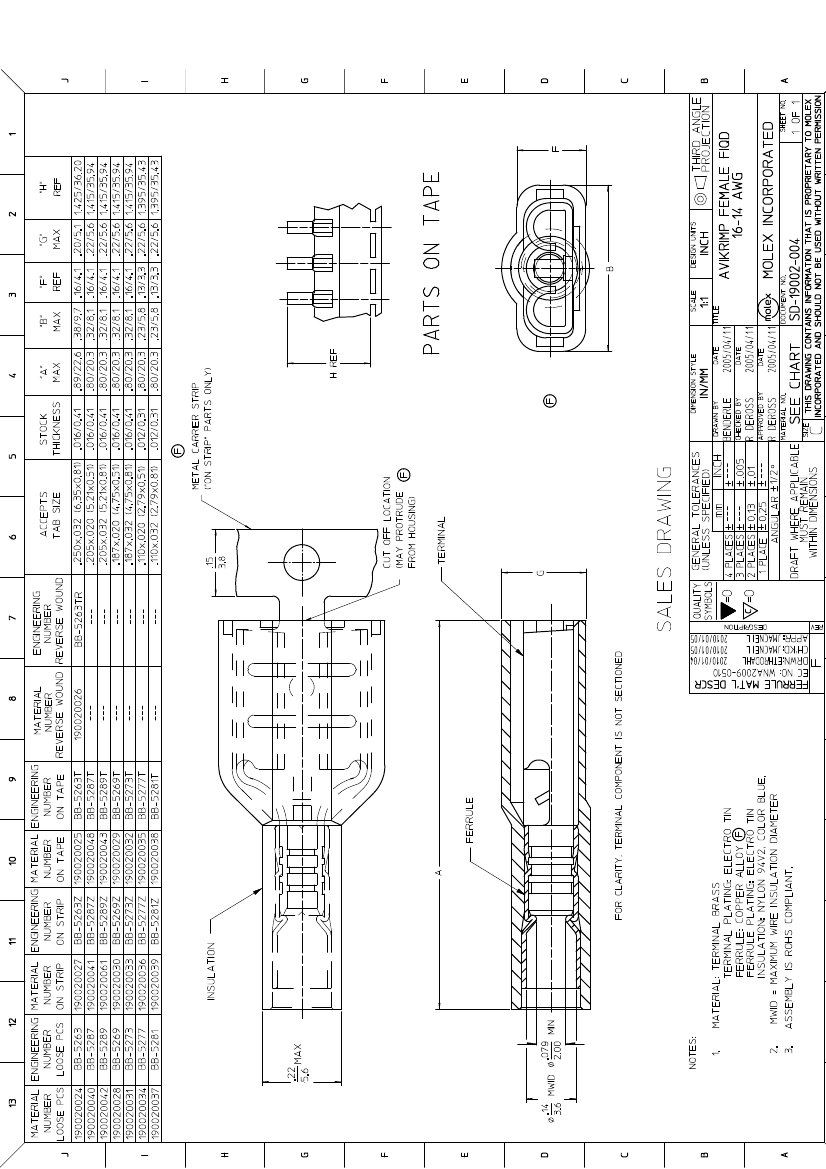

Reference - Drawing Numbers

Sales Drawing

SD-19002-004

Applic

Tooling

found b

Crimp H

contain

Specifi

Global

Descri

Crimp D

MTA-1

Applica

3BF Pr

Tape A

in TM-2

and AT

Crimpin

Mylar T

Termin

BB-5263T Related Products

	BB-5263T	190020025
Description	BRASS, TIN FINISH, PUSH-ON TERMINAL	BRASS, TIN FINISH, PUSH-ON TERMINAL
Maker	Molex	Molex
Reach Compliance Code	unknown	compliant
ECCN code	EAR99	EAR99
terminal gender	FEMALE	FEMALE
Terminal and terminal strip types	PUSH-ON TERMINAL	PUSH-ON TERMINAL
Wire gauge	14 AWG	14 AWG
Base Number Matches	1	1
