38-00-6269

Description
3.96mm (.156") Pitch KK PC Board Connector, Right Angle, Nylon Connector
File Size196KB,4 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Compare View All

38-00-6269 Overview

3.96mm (.156") Pitch KK PC Board Connector, Right Angle, Nylon Connector

This document was generated on 06/08/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
0038006269
Active
kk
3.96mm (.156") Pitch KK® PC Board Connector, Right Angle, Nylon Connector, 5.0µm
(200µ") Tin (Sn), 19 Circuits
Documents:

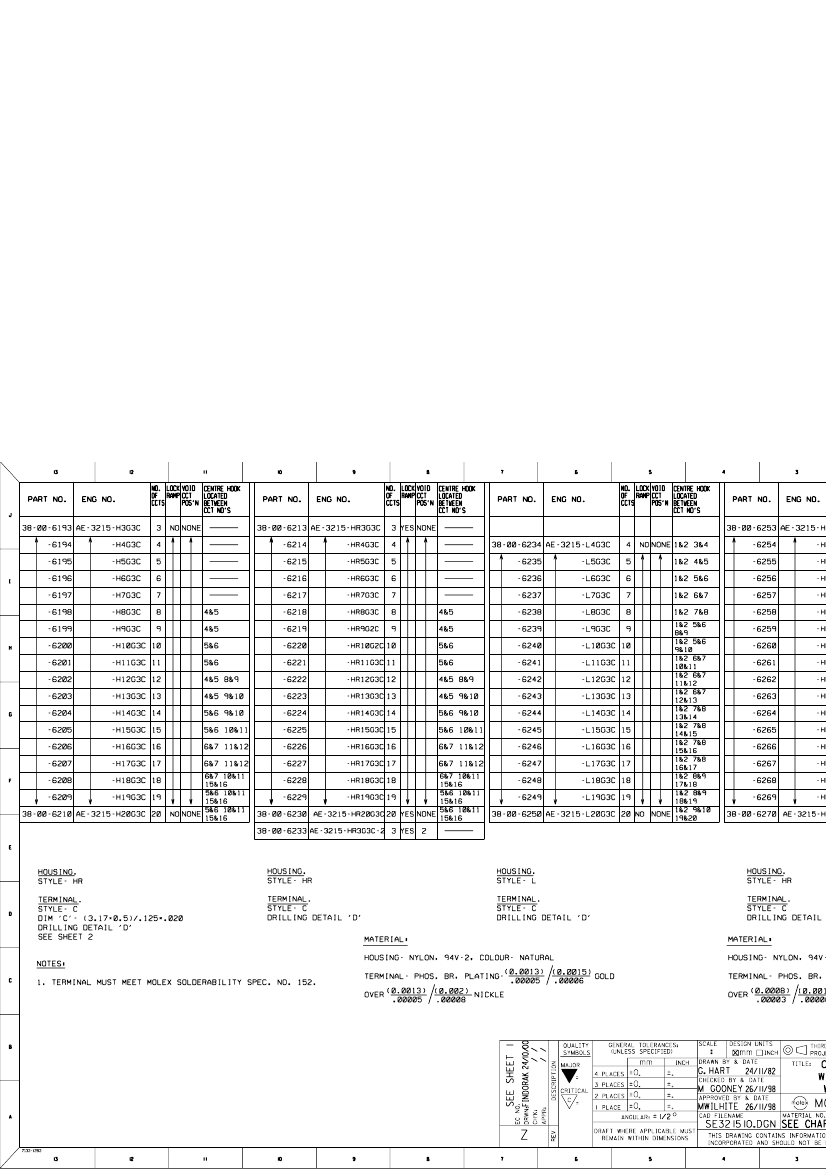

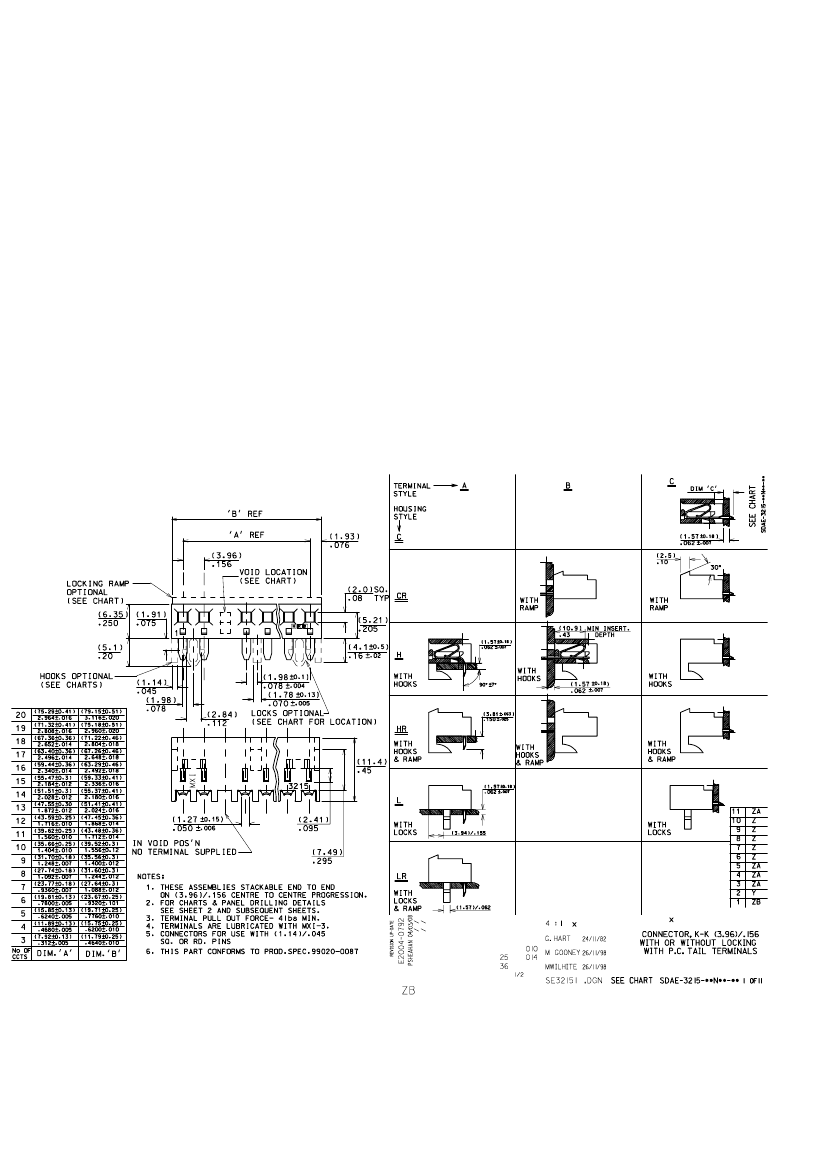

Drawing (PDF)
Product Specification PS-99020-0087 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Overview
Product Name
PCB Receptacles
3215
Board-to-Board
kk
KK®
Physical
Circuits (Loaded)
Circuits (maximum)
Durability (mating cycles max)
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
19
19
25
No
No
None
No
Phosphor Bronze
Gold
Gold
Nylon
1
Right Angle
0.150 In
3.81 mm
Yes
Yes
0.062 In
1.57 mm
Bag
0.156 In
3.96 mm
0.078 In
1.98 mm
Yes
Yes
Yes
No
0°C to +75°C
Through Hole
EU RoHS
ELV and
Complia
REACH S
Not Revi
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
3215Se
Mates
41661
41772
Electrical
Current - Maximum per Contact
Grounding to PCB
Voltage - Maximum
5A
No
250V
Material Info
Old Part Number
3215-HR19G1C

38-00-6269 Related Products

38-00-6269 3215-HR19G1C
Description 3.96mm (.156") Pitch KK PC Board Connector, Right Angle, Nylon Connector 3.96mm (.156") Pitch KK PC Board Connector, Right Angle, Nylon Connector
