41662-A23A501

Description
3.96mm (.156") Pitch KK Header, Breakaway, Right Angle, 23 Circuits, Gold (Au) Plating
File Size163KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet View All

41662-A23A501 Overview

3.96mm (.156") Pitch KK Header, Breakaway, Right Angle, 23 Circuits, Gold (Au) Plating

This document was generated on 03/25/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Description:
0026482232
Active
3.96mm (.156") Pitch KK® Header, Breakaway, Right Angle, 23 Circuits, Gold (Au)
Plating
Documents:
3D Model
Packaging Specification (PDF)

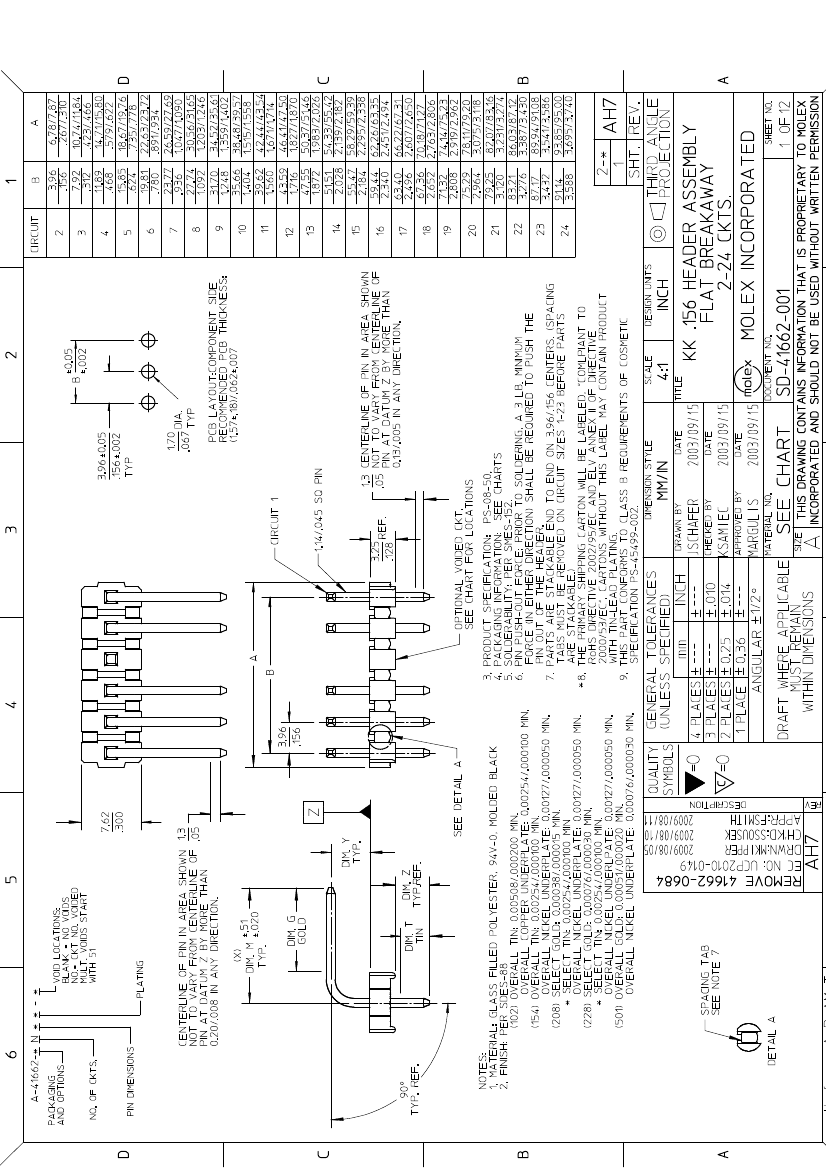

Drawing (PDF)
Product Specification PS-08-50 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Application
Product Name
PCB Headers
41662
Board-to-Board, Wire-to-Board
KK®
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Plating Mating
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
Yes
23
23
Black
50
No
94V-0
No
No
None
None
Gold
1
Right Angle
0.184 In
4.67 mm
No
None
0.062 In
1.60 mm
Bag
0.156 In
3.96 mm
Yes
No
Partial
No
0°C to +75°C
Through Hole
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
41662S
Mates
2139 ,
41815
Electrical
Current - Maximum per Contact
Voltage - Maximum
7A
250V
Solder Process Data
Lead-free Process Capability
Wave Capable (TH only)
