BYW2750 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYW2750

Preview

BYW2750: DescriptionRectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon, DO-15, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size38KB，2 Pages; ManufacturerFagor Electrónica; Environmental Compliance

Download Datasheet Parametric Compare View All

BYW2750 Overview

Rectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon, DO-15, PLASTIC PACKAGE-2

BYW2750 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Fagor Electrónica
Parts packaging code	DO-15
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JEDEC-95 code	DO-15
JESD-30 code	O-PALF-W2
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	50 A
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	50 V
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

BYW27-50 ........ BYW27-1000

1 Amp. Glass Passivated Junction Rectifier

Dimensions in mm.

DO-15

(Plastic)

Voltage

50 to 1000 V.

Current

1.0 A. at 70 °C.

®

6.35

± 0.2

58.5

± 0.5

Mounting instructions

1. Min. distance from body to soldering point,

4 mm.

2. Max. solder temperature, 350 °C.

3. Max. soldering time, 3.5 sec.

4. Do not bend lead at a point closer than

2 mm. to the body.

•

Glass passivated junction

•

High current capability

•

The plastic material carries

U/L recognition 94 V-0

•

Terminals: Axial Leads

•

Polarity: Color band denotes cathode

Maximum Ratings, according to IEC publication No. 134

BYW27 BYW27 BYW27 BYW27 BYW27 BYW27 BYW27

50

100

200

400

600

800

1000

V

RRM

I

F(AV)

I

FRM

I

FSM

T

j

T

stg

E

RSM

Peak recurrent reverse voltage (V)

Forward current at Tamb = 70 °C

Recurrent peak forward current

10 ms. peak forward surge current

Operating temperature range

Storage temperature range

Maximum non repetitive peak

reverse avalanche energy.

I

R

= 0.5 A ; T

J

= 25 ºC

50

100

200

400

600

800

1000

1A

10 A

50 A

– 65 to + 175 °C

20 mJ

Electrical Characteristics at Tamb = 25 °C

V

F

I

R

thj-a

Max. forward voltage drop at I

F

= 1 A

Max. reverse current at V

RRM

at 25 °C

at 100 °C

Max. thermal resistance (I = 10 mm.)

1V

200 nA

15 µ A

60 °C/W

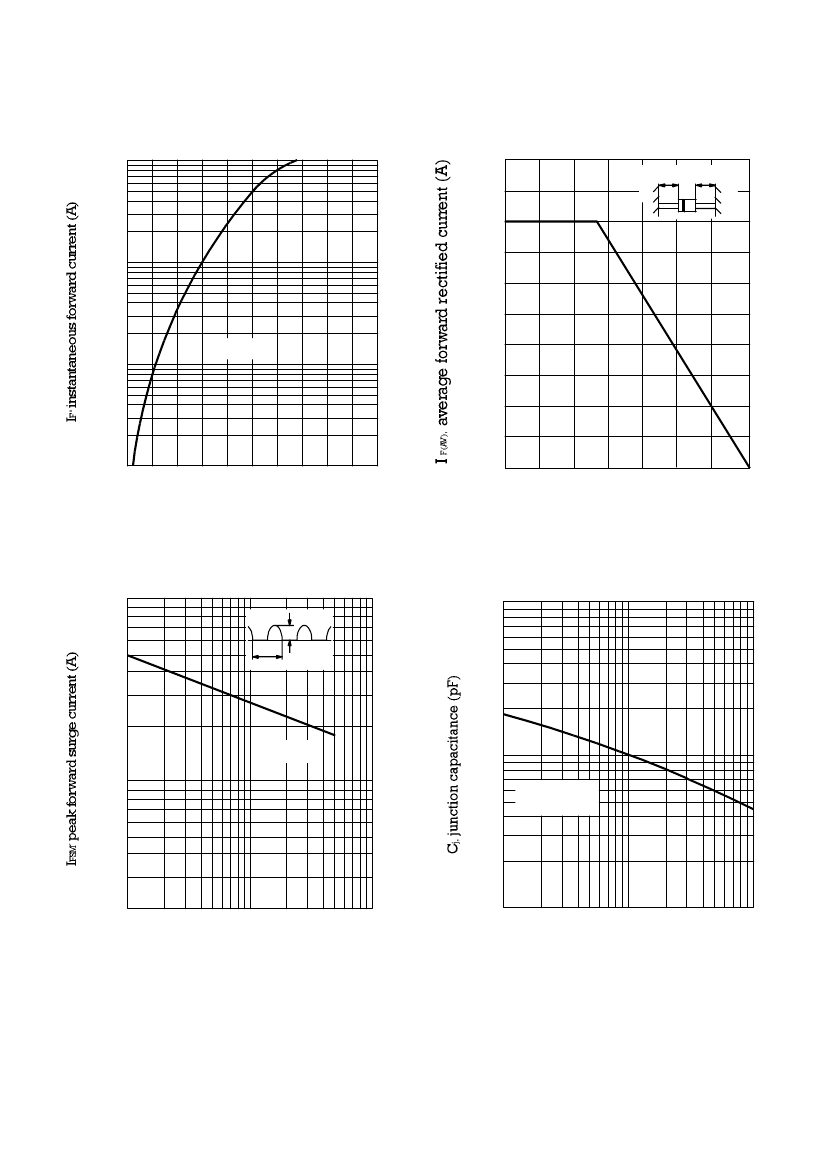

BYW2750 Related Products

	BYW2750	BYW27200	BYW27600	BYW271000	BYW27800	BYW27400	BYW27100
Description	Rectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon, DO-15, PLASTIC PACKAGE-2	Rectifier Diode, 1 Element, 1A, 200V V(RRM), Silicon, DO-15, PLASTIC PACKAGE-2	Rectifier Diode, 1 Element, 1A, 600V V(RRM), Silicon, DO-15, PLASTIC PACKAGE-2	Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-15, PLASTIC PACKAGE-2	Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-15, PLASTIC PACKAGE-2	Rectifier Diode, 1 Element, 1A, 400V V(RRM), Silicon, DO-15, PLASTIC PACKAGE-2	Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, DO-15, PLASTIC PACKAGE-2
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	DO-15	DO-15	DO-15	DO-15	DO-15	DO-15	DO-15
package instruction	O-PALF-W2	PLASTIC PACKAGE-2	O-PALF-W2	O-PALF-W2	O-PALF-W2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2
Contacts	2	2	2	2	2	2	2
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V	1 V	1 V	1 V	1 V
JEDEC-95 code	DO-15	DO-15	DO-15	DO-15	DO-15	DO-15	DO-15
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Humidity sensitivity level	1	1	1	1	1	1	1
Maximum non-repetitive peak forward current	50 A	50 A	50 A	50 A	50 A	50 A	50 A
Number of components	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	50 V	200 V	600 V	1000 V	800 V	400 V	100 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maker	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica	-	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica
Base Number Matches	-	1	1	1	1	-	-
