BZX85C3V9GP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BZX85C3V9GP

BZX85C3V9GP: DescriptionZener Diode, 3.9V V(Z), 5%, 1.3W, DO-41,; CategoryDiscrete semiconductor diode; File Size78KB，4 Pages; ManufacturerFagor Electrónica; Environmental Compliance

Download Datasheet Parametric Compare View All

BZX85C3V9GP Overview

Zener Diode, 3.9V V(Z), 5%, 1.3W, DO-41,

BZX85C3V9GP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Fagor Electrónica
Reach Compliance Code	compliant
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	15 Ω
JEDEC-95 code	DO-41
JESD-30 code	O-PALF-W2
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Maximum power dissipation	1.3 W
Certification status	Not Qualified
Guideline	IEC-134
Nominal reference voltage	3.9 V
surface mount	NO
technology	ZENER
Terminal surface	NOT SPECIFIED
Terminal form	WIRE
Terminal location	AXIAL
Maximum voltage tolerance	5%
Working test current	60 mA

Preview

Download Datasheet

View All

BZX85C3V3GP........BZX85C220GP

1.3 W Glass Passivated Zener Diodes

Dimensions in mm.

DO-41

(Plastic)

Voltage

3.3 to 220 V

Power

1.3 W

± 0.2

58.5

±0.5

Standard Voltage Tolerance is ± 5%

•

Glass Passivated Junction

•

The plastic material carries

U/L recognition 94 V-0

•

Terminals: Axial Leads

•

Polarity: Color band denotes cathode

Mounting instructions

1. Min. distance from body to soldering point,

4 mm.

2. Max. solder temperature, 350 °C.

3. Max. soldering time, 3.5 sec.

4. Do not bend lead at a point closer than

2 mm. to the body.

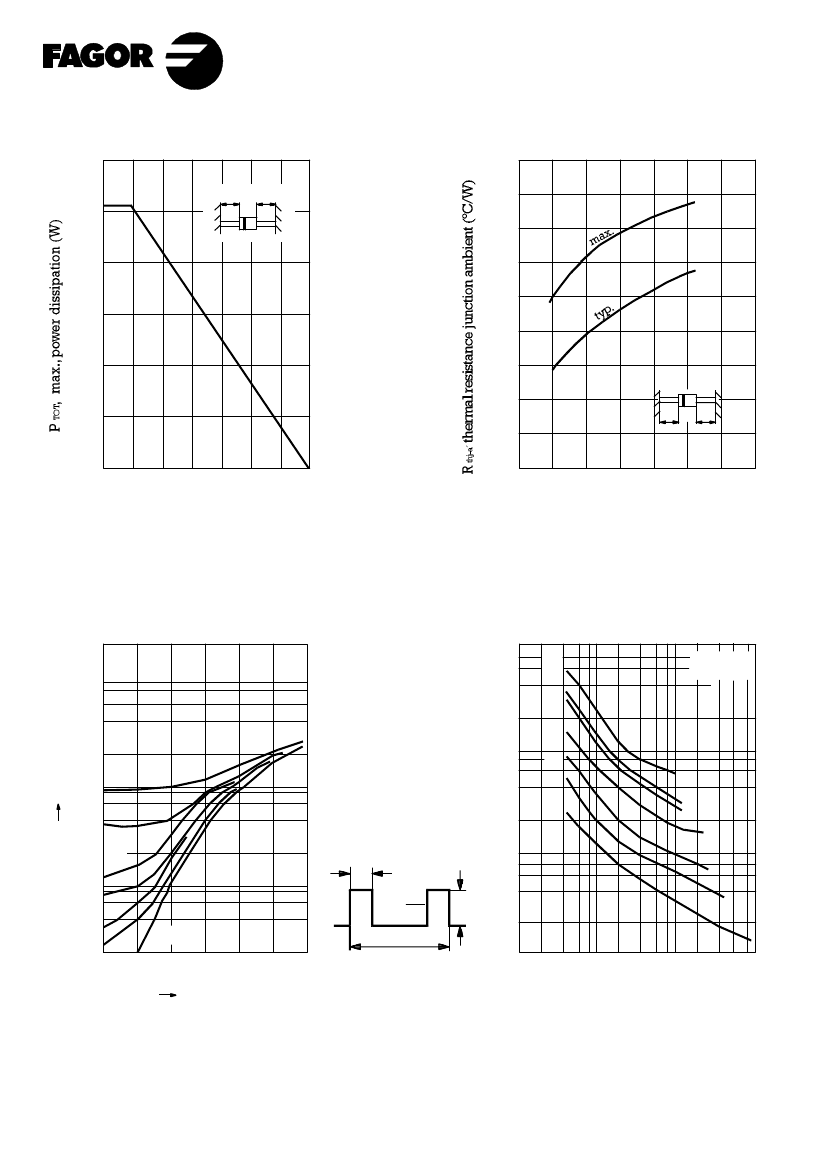

Maximum Ratings, according to IEC publication No. 134

tot

stg

Power dissipation at Tamb = 25

Operating temperature range

Storage temperature range

1.3 W

– 55 to + 175 °C

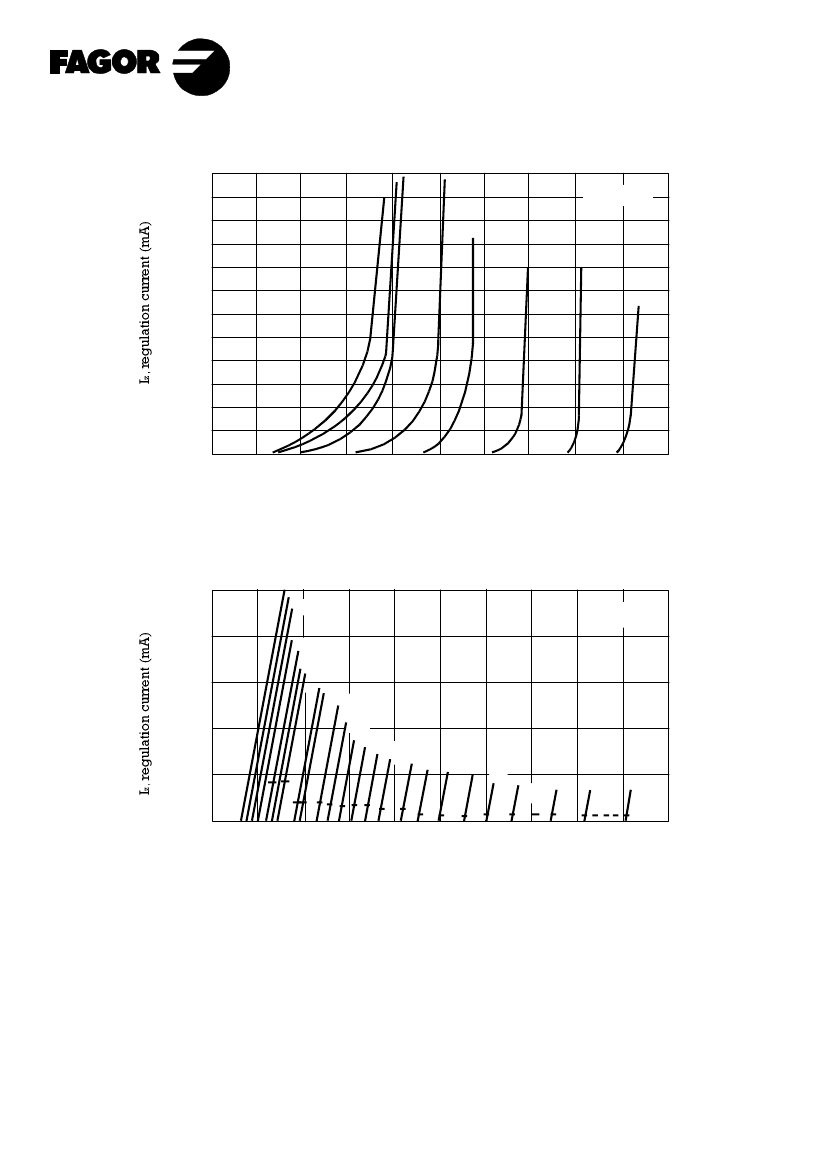

Electrical Characteristics at Tamb = 25 °C

thj-a

Max. forward voltage drop at I

= 0.2 A

Max. thermal resistance at 10 mm.

lead length

1.0 V

130 °C/W

Oct - 00
