B80C1000 datasheet, PDF - EEWORLD Datasheet

B80C1000: DescriptionBridge Rectifier Diode, 1A, 160V V(RRM),; CategoryDiscrete semiconductor diode; File Size228KB，5 Pages; ManufacturerDIOTEC; Websitehttp://www.diotec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

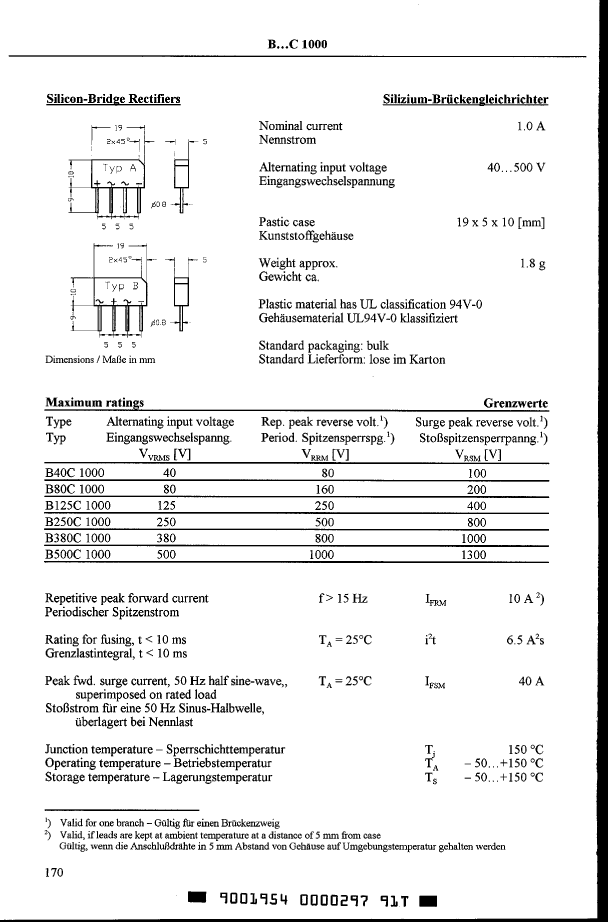

B80C1000 Overview

Bridge Rectifier Diode, 1A, 160V V(RRM),

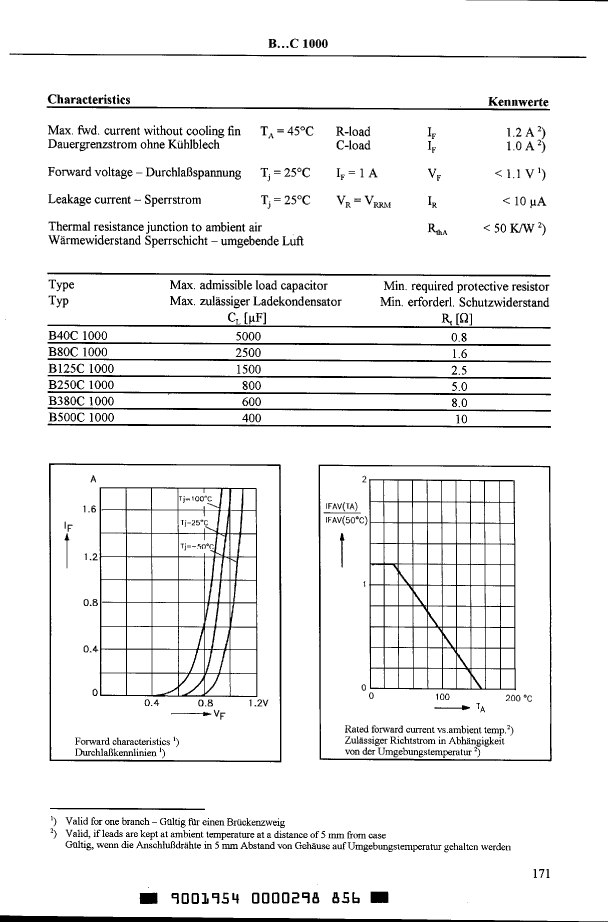

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DIOTEC
Reach Compliance Code	compliant
Configuration	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	40 A
Number of components	4
Maximum operating temperature	150 °C
Maximum output current	1 A
Maximum repetitive peak reverse voltage	160 V
surface mount	NO

	B80C1000	B250C1000	B40C1000	B500C1000
Description	Bridge Rectifier Diode, 1A, 160V V(RRM),	Bridge Rectifier Diode, 1A, 500V V(RRM),	Bridge Rectifier Diode, 1A, 80V V(RRM),	Bridge Rectifier Diode, 1A, 1000V V(RRM),
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	DIOTEC	DIOTEC	DIOTEC	DIOTEC
Reach Compliance Code	compliant	compliant	compliant	compliant
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V	1.1 V
Humidity sensitivity level	1	1	1	1
Maximum non-repetitive peak forward current	40 A	40 A	40 A	40 A
Number of components	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Maximum output current	1 A	1 A	1 A	1 A
Maximum repetitive peak reverse voltage	160 V	500 V	80 V	1000 V
surface mount	NO	NO	NO	NO
