0459854924
Active
extreme_lphpower
12.00mm (.472") Pitch, EXTreme LPHPower™ Header, Right Angle, 4 Power Contacts,
Select Gold (Au) Plating, for 2.36mm (.093") Thick PC Board with Guide and Press-fit
Plastic Pegs
Documents:
3D Model

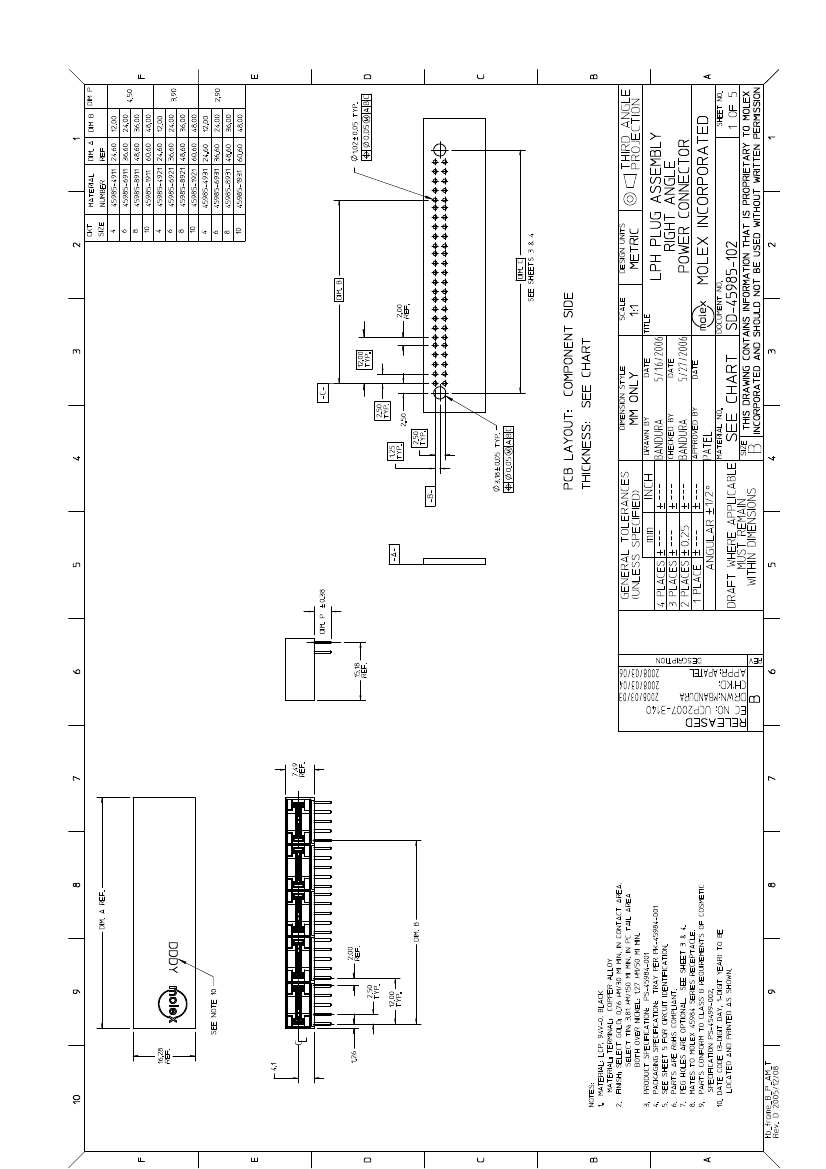

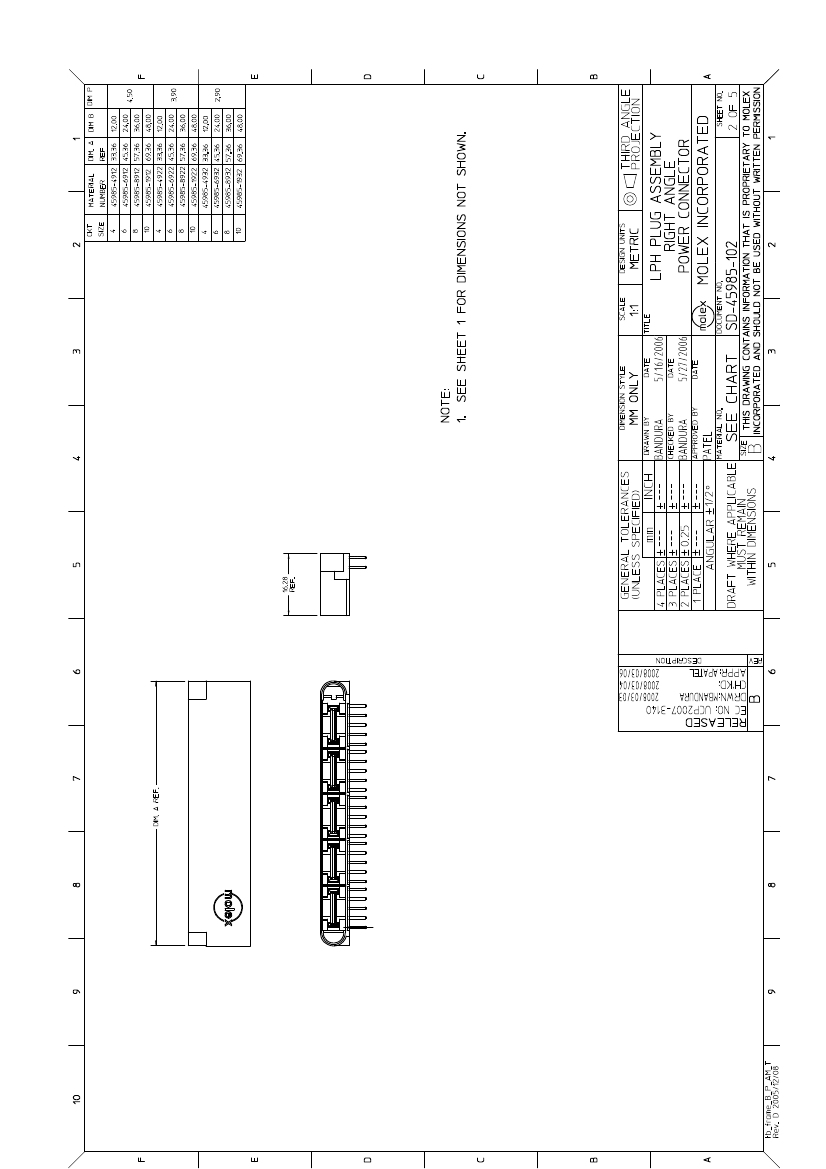

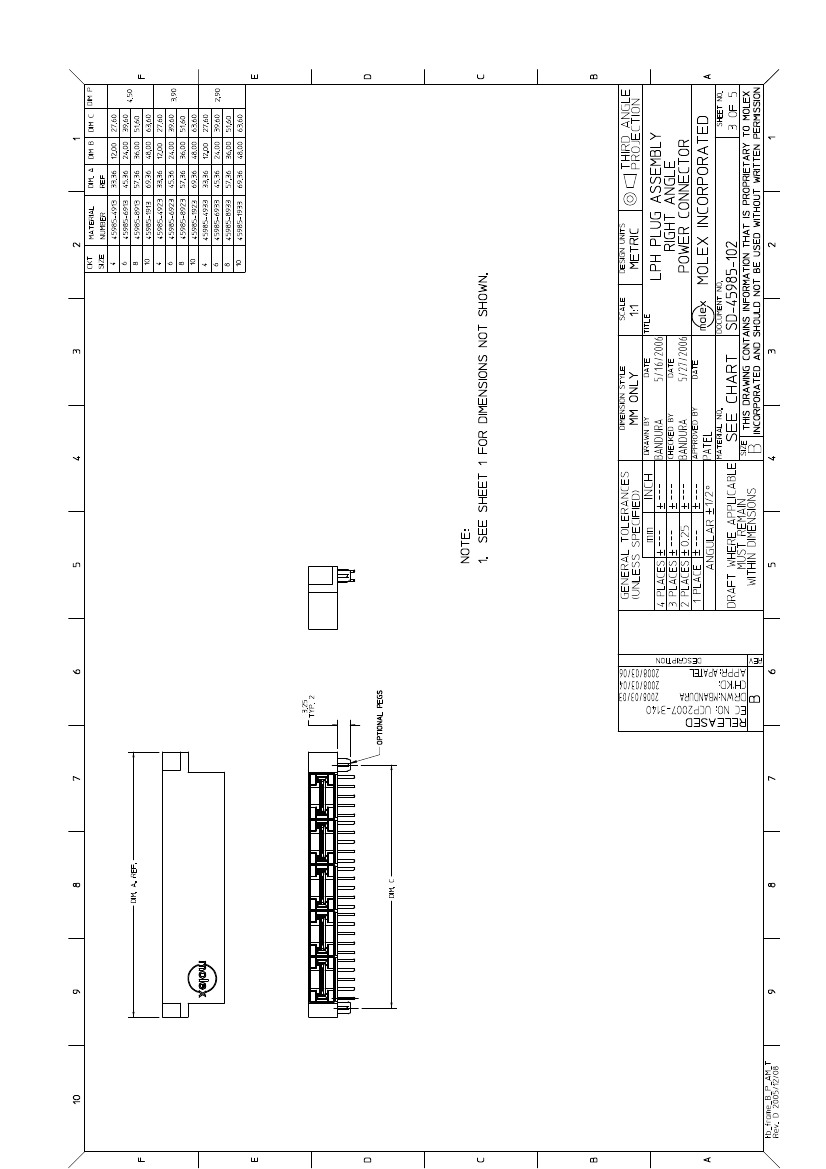

Drawing (PDF)
Product Specification PS-45984-001 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
TUV
UL
LR19980
30683046
E29179
General
Product Family
Series
Application
Comments
Overview
Product Name
PCB Headers
45985
Board-to-Board
4 Power Blades
extreme_lphpower
EXTreme LPHPower™
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
No
4
4
4 Power, No Signal
Black
250
Yes
94V-0
No
Yes
None
No
High Performance Alloy (HPA)
Gold
Tin
High Temperature Thermoplastic
2
Right Angle
0.142 In
3.60 mm
Yes
Yes
0.093 In
2.36 mm
Tray
0.472 In
12.00 mm
0.079 In, 0.098 In
2.00 mm, 2.50 mm
30
0.75
Email pro
For a mu
Complian
Please vi
non-prod
Search
45985S
Mates
45984
Recept
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
150
3.75
Yes
No
Closed Ends
No
Yes
-40°C to +105°C
Through Hole
Electrical
Current - Maximum per Contact
Voltage - Maximum
30A
250V AC (RMS)/DC
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
15
SMC & Wave Capable (TH only)
3
230
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
PK-45984-001
PS-45984-001
SD-45985-102
