5240-111 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5240-111

5240-111: Description6 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, CRIMP, PLUG; CategoryThe connector; File Size87KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

5240-111 Overview

6 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, CRIMP, PLUG

5240-111 Parametric

Parameter Name	Attribute value
Connector type	BOARD CONNECTOR
Contact materials	NOT SPECIFIED
Total number of contacts	6
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	Active
width	0.3110 inch
body_depth	0.7280 inch
body_diamete	0.7320 inch
Shell style	PLUG
Contact surface matching	NOT SPECIFIED
Contact coated terminals	NOT SPECIFIED
Connector male and female	MALE
contact_patte	RECTANGULAR
contact_resistance	20 mohm
contact_style	SQ PIN-SKT
dielectric_withstanding_voltage__v_	1000VAC
According to DIN	NO
Filter characteristics	NO
Comply with IEC	NO
insertion_force_max__n_	17.792
insulation_resistance	1.00E9 ohm
insulator_material	NYLON
Manufacturer Series	5240
mating_contact_pitch__inch_	0.098
collocation information	MULTIPLE MATING PARTS AVAILABLE
Meet MIL	NO
hybrid connection	NO
mounting_option_1	LATCH
Installation type	CABLE
Number of load rows	1
Minimum operating temperature	-40 Cel
erating_temperature_max__cel_	105
Options	GENERAL PURPOSE
larization_key	GUIDE SLOT(S)
ed_current__signal_	3 A
eference_standard	UL, CSA
eliability	COMMERCIAL
sub_category	Headers and Edge Type Connectors
Terminal type	CRIMP
UL flammability code	94V-0
withdrawl_force_min__n_	1.4734
dditional_feature	SPOX, COMPATIBLE CONTACT: 5241

Preview

Download Datasheet

View All

This document was generated on 06/03/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0029110113

Active

spox

2.50mm (.098") Pitch SPOX™ Wire-to-Wire Plug Housing, Friction Lock, Optional

Mounting Ears, 11 Circuits

Documents:

3D Model

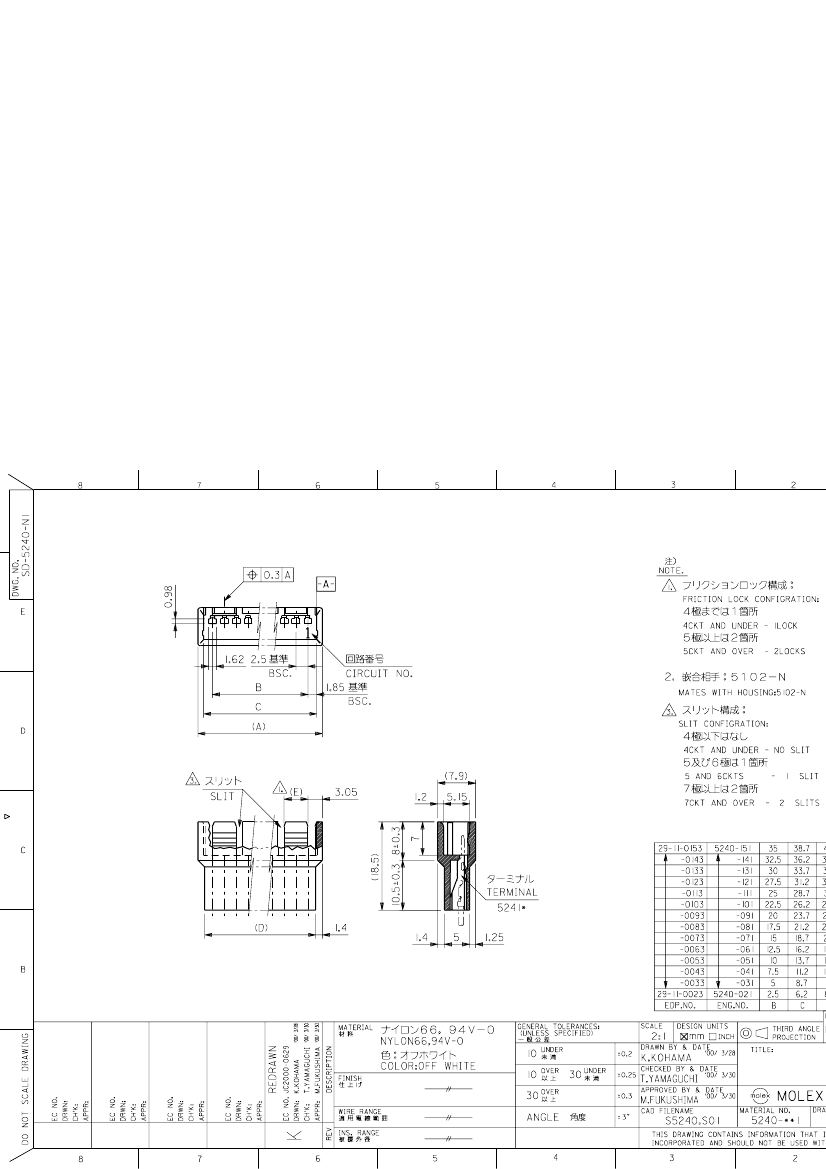

Drawing (PDF)

Product Specification PS-5102-003 (PDF)

Product Specification PS-51191-003 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

TUV

LR19980

R72090224

E29179

General

Product Family

Series

Overview

Product Name

Crimp Housings

5240

spox

SPOX™

Physical

Circuits (maximum)

Flammability

Gender

Glow-Wire Compliant

Lock to Mating Part

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Stackable

Temperature Range - Operating

94V-0

Male

Yes

Bag

No, Yes

0.098 In

2.50 mm

-40°C to +105°C

EU RoHS

ELV and

Complia

REACH S

Contains

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

5240Se

Mates

51191

Material Info

Old Part Number

5240-111

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

SPK-5240-001

PS-5102-003, PS-51191-003

SD-5240-N1

Use W

5241

This document was generated on 06/03/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

5240-111 Related Products

	5240-111	5240-061
Description	6 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, CRIMP, PLUG	6 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, CRIMP, PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact materials	NOT SPECIFIED	NOT SPECIFIED
Total number of contacts	6	6
EU RoHS regulations	Yes	Yes
China RoHS regulations	Yes	Yes
state	Active	Active
width	0.3110 inch	0.3110 inch
body_depth	0.7280 inch	0.7280 inch
body_diamete	0.7320 inch	0.7320 inch
Shell style	PLUG	PLUG
Contact surface matching	NOT SPECIFIED	NOT SPECIFIED
Contact coated terminals	NOT SPECIFIED	NOT SPECIFIED
Connector male and female	MALE	MALE
contact_patte	RECTANGULAR	RECTANGULAR
contact_resistance	20 mohm	20 mohm
contact_style	SQ PIN-SKT	SQ PIN-SKT
dielectric_withstanding_voltage__v_	1000VAC	1000VAC
According to DIN	NO	NO
Filter characteristics	NO	NO
Comply with IEC	NO	NO
insertion_force_max__n_	17.792	17.792
insulation_resistance	1.00E9 ohm	1.00E9 ohm
insulator_material	NYLON	NYLON
Manufacturer Series	5240	5240
mating_contact_pitch__inch_	0.098	0.098
collocation information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Meet MIL	NO	NO
hybrid connection	NO	NO
mounting_option_1	LATCH	LATCH
Installation type	CABLE	CABLE
Number of load rows	1	1
Minimum operating temperature	-40 Cel	-40 Cel
erating_temperature_max__cel_	105	105
Options	GENERAL PURPOSE	GENERAL PURPOSE
larization_key	GUIDE SLOT(S)	GUIDE SLOT(S)
ed_current__signal_	3 A	3 A
eference_standard	UL, CSA	UL, CSA
eliability	COMMERCIAL	COMMERCIAL
sub_category	Headers and Edge Type Connectors	Headers and Edge Type Connectors
Terminal type	CRIMP	CRIMP
UL flammability code	94V-0	94V-0
withdrawl_force_min__n_	1.4734	1.4734
dditional_feature	SPOX, COMPATIBLE CONTACT: 5241	SPOX, COMPATIBLE CONTACT: 5241
