704500261 Overview

2.54mm (.100") Pitch SL Crimp Housing, Dual Row, Version F, 26 Circuits

This document was generated on 05/19/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
0022566267
Active
cgrid__sl_products
2.54mm (.100") Pitch SL™ Crimp Housing, Dual Row, Version F, 26 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-70058 (PDF)
Product Specification PS-70400 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Comments
Overview
Product Name
Crimp Housings
70450
Version F
cgrid__sl_products
SL™
Physical
Breakaway
Circuits (maximum)
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Stackable
Temperature Range - Operating
No
26
Black
94V-0
Female
No
Polyester
2
Bag
No
0.100 In
2.54 mm
No
-40°C to +105°C
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
70450S
Mates
8723 ,
Material Info
Old Part Number
704500261
Reference - Drawing Numbers
Packaging Specification
Product Specification

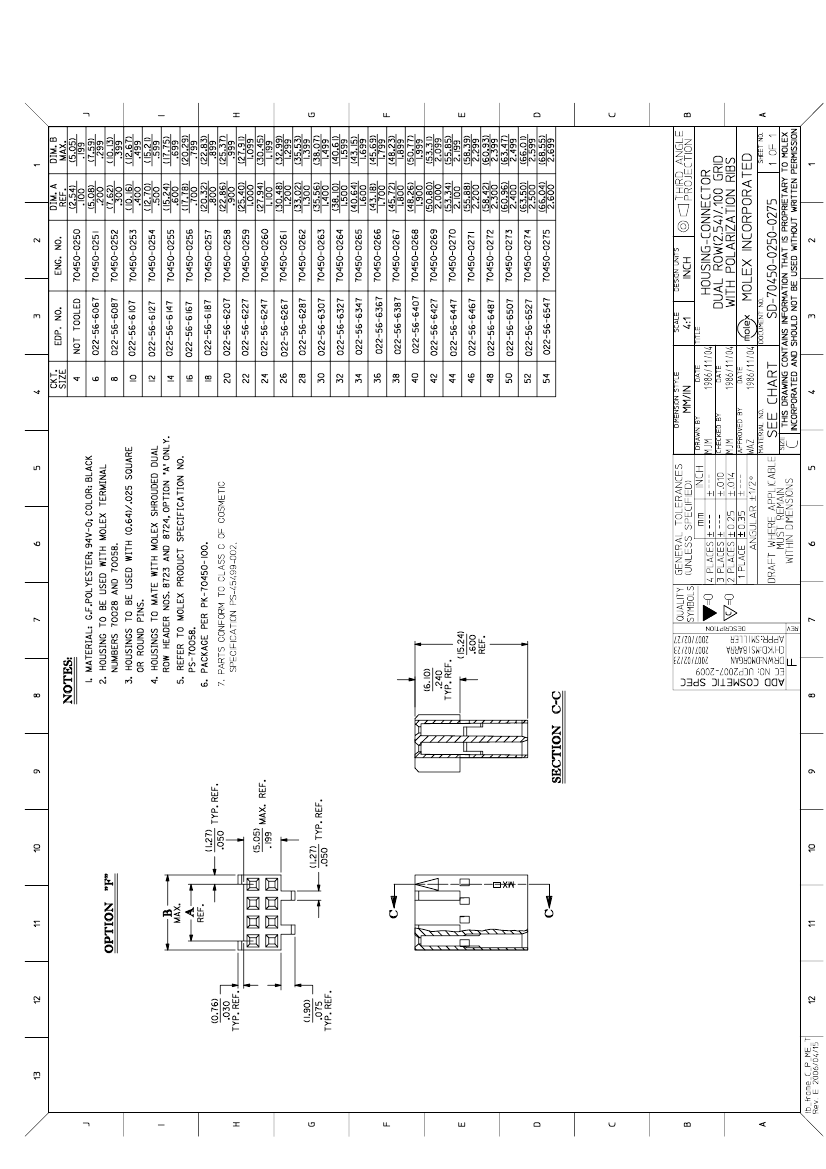

Sales Drawing
Test Summary
PK-70450-100
PS-70058, PS-70400
SD-70450-0250-0275
TS-70058-001
Use W
70058
This document was generated on 05/19/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

704500261 Related Products

704500261 022-56-6267
Description 2.54mm (.100") Pitch SL Crimp Housing, Dual Row, Version F, 26 Circuits 2.54mm (.100") Pitch SL Crimp Housing, Dual Row, Version F, 26 Circuits
