AR18-HZW-TT-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> AR18-HZW-TT-R

AR18-HZW-TT-R: DescriptionIC Socket, SIP18, 18 Contact(s), 2.54mm Term Pitch, Wire Wrap; CategoryThe connector socket; File Size389KB，1 Pages; ManufacturerASSMANN; Websitehttps://www.assmann.com/en/about-assmann/

Download Datasheet Parametric Compare View All

AR18-HZW-TT-R Overview

IC Socket, SIP18, 18 Contact(s), 2.54mm Term Pitch, Wire Wrap

AR18-HZW-TT-R Parametric

Parameter Name	Attribute value
Maker	ASSMANN
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
body width	0.1 inch
subject depth	0.118 inch
body length	1.8 inch
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN
Contact material	BE-CU
Contact style	IDC
current rating	3 A
Device slot type	IC SOCKET
Type of equipment used	SIP18
Insulation resistance	10000000000 Ω
Manufacturer's serial number	AR
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	18
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Terminal pitch	2.54 mm
Termination type	WIRE WRAP

Preview

Download Datasheet

View All

Scale

1:1

Drawn

Approved

11.07.11

Name

Chappell

Item No.

TOLERANCE

X.X

X.XX

X.XXX

±0.40

±0.25

±0.15

±3°

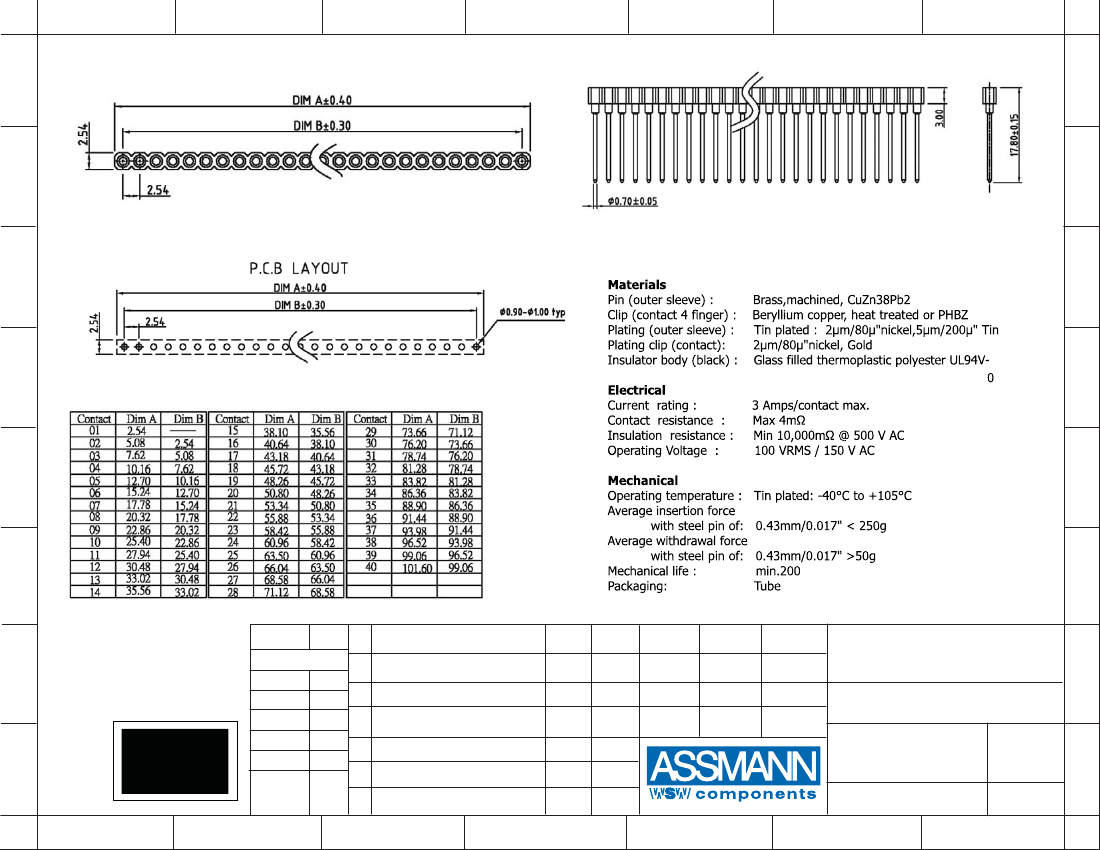

ARxx-HZW-TT-R

Title

IDC-Socket, Wire Wrap,

Pitch: 2.54MM, Pin Length: 17.80.MM

Drawing No.

RoHS

Complaint

Angle

rev00

Sheet

Modification

Date

Name

Replace

AR18-HZW-TT-R Related Products

	AR18-HZW-TT-R	AR32-HZW-TT-R	AR20-HZW-TT-R	AR08-HZW-TT-R	AR24-HZW-TT-R	AR28-HZW-TT-R	AR40-HZW-TT-R	AR14-HZW-TT-R	AR16-HZW-TT-R	AR17-HZW-TT-R
Description	IC Socket, SIP18, 18 Contact(s), 2.54mm Term Pitch, Wire Wrap	IC Socket, SIP32, 32 Contact(s), 2.54mm Term Pitch, Wire Wrap	IC Socket, SIP20, 20 Contact(s), 2.54mm Term Pitch, Wire Wrap	IC Socket, SIP8, 8 Contact(s), 2.54mm Term Pitch, Wire Wrap	IC Socket, SIP24, 24 Contact(s), 2.54mm Term Pitch, Wire Wrap	IC Socket, SIP28, 28 Contact(s), 2.54mm Term Pitch, Wire Wrap	IC Socket, SIP40, 40 Contact(s), 2.54mm Term Pitch, Wire Wrap	IC Socket, SIP14, 14 Contact(s), 2.54mm Term Pitch, Wire Wrap	IC Socket, SIP16, 16 Contact(s), 2.54mm Term Pitch, Wire Wrap	IC Socket, SIP17, 17 Contact(s), 2.54mm Term Pitch, Wire Wrap
Maker	ASSMANN	ASSMANN	ASSMANN	ASSMANN	ASSMANN	ASSMANN	ASSMANN	ASSMANN	ASSMANN	ASSMANN
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
subject depth	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch
body length	1.8 inch	3.2 inch	2 inch	0.8 inch	2.4 inch	2.8 inch	4 inch	1.4 inch	1.6 inch	1.7 inch
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Contact material	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU
Contact style	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC
current rating	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	SIP18	SIP32	SIP20	SIP8	SIP24	SIP28	SIP40	SIP14	SIP16	SIP17
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω
Manufacturer's serial number	AR	AR	AR	AR	AR	AR	AR	AR	AR	AR
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	18	32	20	8	24	28	40	14	16	17
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP
