A-41661-A02A102 datasheet, PDF

Datasheet> All Categories > The connector> A-41661-A02A102

A-41661-A02A102: Description2 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector; File Size369KB，15 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

A-41661-A02A102 Overview

2 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

A-41661-A02A102 Parametric

Parameter Name	Attribute value
Connector type	BOARD CONNECTOR
Contact materials	BRASS
Terminal spacing	3.96 mm
Total number of contacts	2
EU RoHS regulations	Yes
state	Active
width	0.3000 inch
body_depth	0.1280 inch
body_diamete	0.3100 inch
Shell style	RECEPTACLE
Contact surface matching	TIN
Contact coated terminals	TIN
Connector male and female	MALE
contact_patte	RECTANGULAR
contact_resistance	6 mohm
contact_style	SQ PIN-SKT
dielectric_withstanding_voltage__v_	1500VAC
According to DIN	NO
Filter characteristics	NO
Comply with IEC	NO
insulation_resistance	5.00E10 ohm
insulator_col	BLACK
insulator_material	GLASS FILLED POLYESTER
jesd_609_code	e3
Manufacturer Series	41661
mating_contact_pitch__inch_	0.156
collocation information	NO
Meet MIL	NO
hybrid connection	NO
Installation method	STRAIGHT
Installation type	BOARD
umber_of_connectors	ONE
umber_of_pcb_rows	1
Number of load rows	1
Minimum operating temperature	0.0 Cel
erating_temperature_max__cel_	75
Options	GENERAL PURPOSE
cb_contact_patte	RECTANGULAR
lating_thickness__inch_	200u
ed_current__signal_	7 A
eference_standard	UL, CSA
eliability	COMMERCIAL
sub_category	Headers and Edge Type Connectors
erminal_length	0.1720 inch
Terminal type	SOLDER
UL flammability code	94V-0
dditional_feature	KK

Preview

Download Datasheet

View All

This document was generated on 06/08/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Description:

Documents:

3D Model

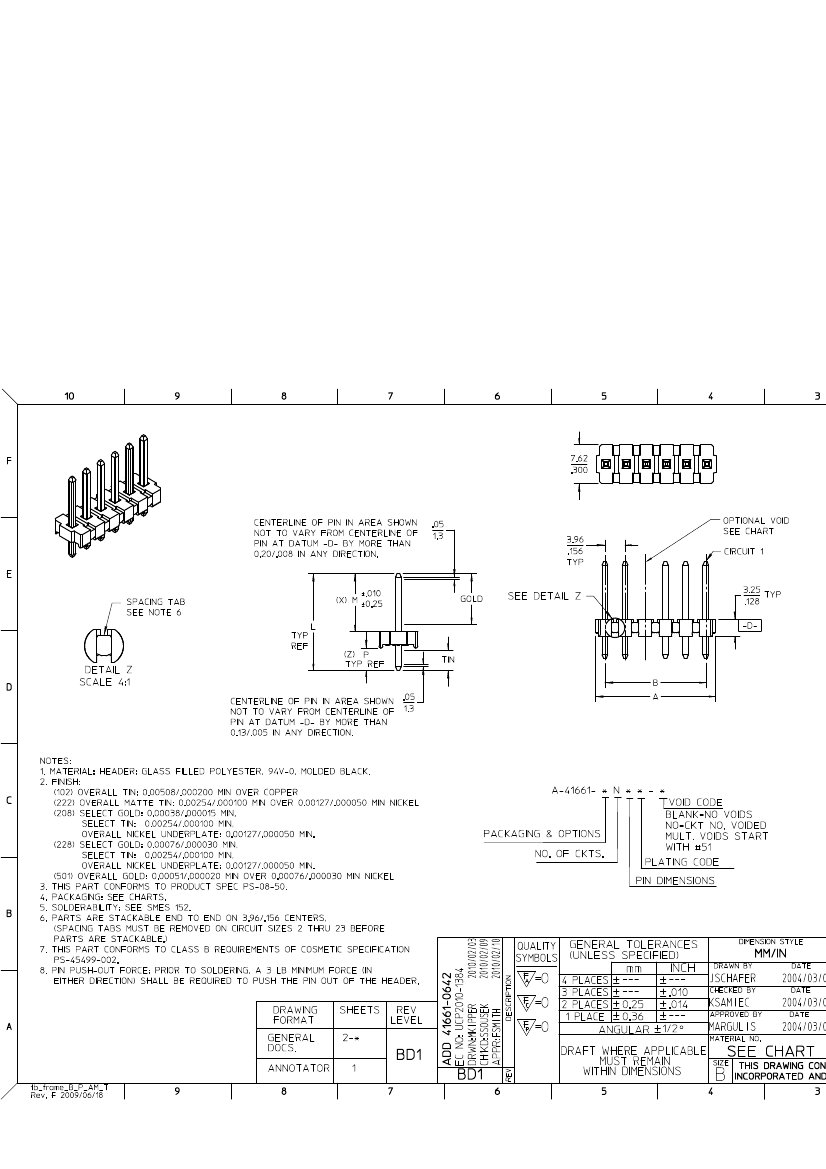

Drawing (PDF)

0026481021

Active

3.96mm (.156") Pitch KK® Header, Breakaway, Vertical, 2 Circuits, Tin (Sn) Plating

Product Specification PS-08-50 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

MolexKits

Product Name

PCB Headers

41661

Board-to-Board, Wire-to-Board

Yes

KK®

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Yes

Black

94V-0

None

Brass

Tin

Polyester

Vertical

0.172 In

4.37 mm

None

0.062 In

1.57 mm

Bag

0.156 In

3.96 mm

0.156 In

3.96 mm

Yes

Partial

0°C to +75°C

Through Hole

EU RoHS

ELV and

Complia

REACH S

Contains

Halogen

Status

Not Halo

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

41661S

Mates

2139 K

Crimp H

7674 K

Solder

41815
