SD-501876-001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> SD-501876-001

SD-501876-001: DescriptionTWO PART BOARD CONNECTOR; CategoryThe connector; File Size103KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

SD-501876-001 Overview

TWO PART BOARD CONNECTOR

SD-501876-001 Parametric

Parameter Name	Attribute value
Contact materials	NOT SPECIFIED
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
Manufacturer Series	501876
Contact surface matching	NOT SPECIFIED
Contact coated terminals	NOT SPECIFIED
Connection Type	TWO PART BOARD CONNECTOR

Preview

Download Datasheet

View All

This document was generated on 05/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

Documents:

3D Model

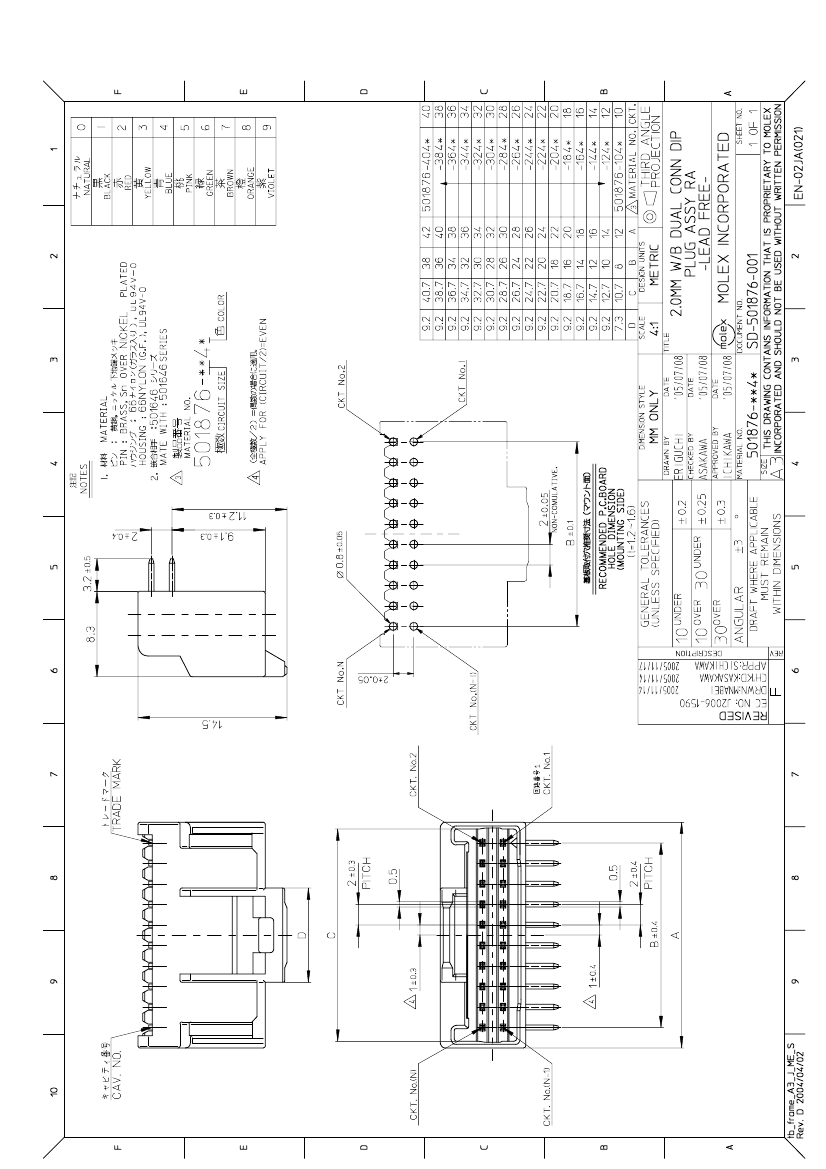

Drawing (PDF)

5018761040

Active

igrid

2.00mm (.079") Pitch iGrid™ Wire-to-Board Header, Dual Row, Right Angle, 10 Circuits

Product Specification PS-501646-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

MolexKits

Overview

Product Name

PCB Headers

501876

Wire-to-Board

Yes

igrid

iGrid™

Physical

Breakaway

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Natural

Yes

Brass

Tin

Nylon

Right Angle

0.126 In

3.20 mm

None

0.047 In, 0.063 In

1.20 mm, 1.60 mm

Tray

0.079 In

2.00 mm

Yes

-25°C to +85°C

Through Hole

EU RoHS

ELV and

Complia

REACH S

Not Revie

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

501876

Mates

501646

22-26 A

AWG

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V AC (RMS)/DC

Material Info

Reference - Drawing Numbers

Packaging Specification

SPK-501876-001
