SD-501912-001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> SD-501912-001

SD-501912-001: Description33 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SURFACE MOUNT; CategoryThe connector; File Size575KB，8 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

SD-501912-001 Overview

33 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SURFACE MOUNT

SD-501912-001 Parametric

Parameter Name	Attribute value
Connector type	CARD EDGE CONNECTOR
Contact materials	PHOSPHOR BRONZE
Terminal spacing	0.3000 mm
Total number of contacts	33
Processing package description	ROHS COMPLIANT
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	Active
Contact surface matching	GOLD (4)
Contact coated terminals	GOLD (2)
Connector male and female	FEMALE
According to DIN	NO
Filter characteristics	NO
Comply with IEC	NO
jesd_609_code	e4
Manufacturer Series	501912
Meet MIL	NO
hybrid connection	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of load rows	1
Options	GENERAL PURPOSE
Terminal type	SURFACE MOUNT
UL flammability code	94V-0

Preview

Download Datasheet

View All

This document was generated on 04/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Description:

5019123390

Active

0.30mm (.012") Pitch Easy-On™ FPC Connector, Right Angle, SMT, Bottom Contact

Style, 1.80mm (.071") Mated Height, 33 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-501912-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Product Name

FFC/FPC Connectors

501912

Easy-On™

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Contact Position

Durability (mating cycles max)

Entry Angle

Mated Height (in)

Mated Height (mm)

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Black, Natural

Bottom

90° Angle

0.071 In

1.80 mm

Copper, Phosphor Bronze

Gold

High Temperature Thermoplastic

Right Angle

None

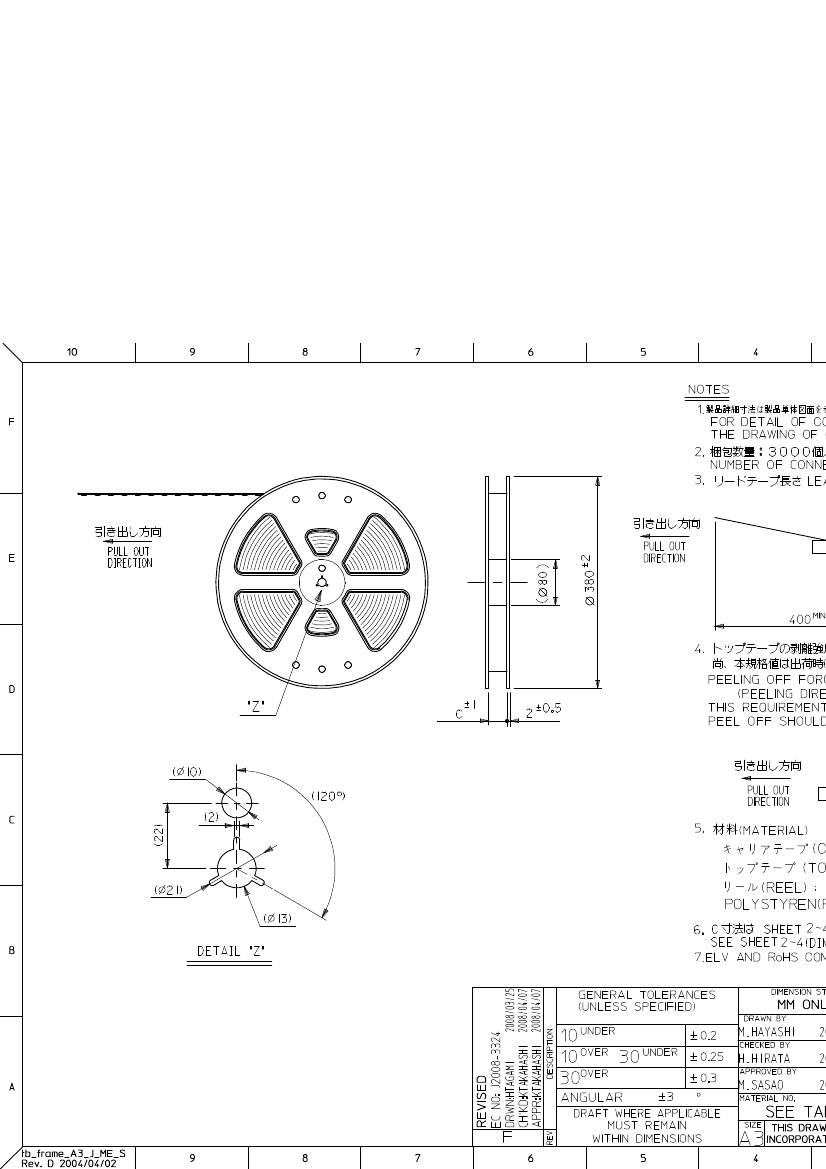

Embossed Tape on Reel

0.012 In

0.30 mm

0.012 In

0.30 mm

0.1

0.05

Yes

-20°C to +85°C

Surface Mount

FPC only

EU RoHS

ELV and

Complia

REACH S

Not Revie

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

501912

Electrical

Current - Maximum per Contact

Voltage - Maximum

0.2A

50V AC (RMS)/DC

Material Info

Reference - Drawing Numbers

Product Specification

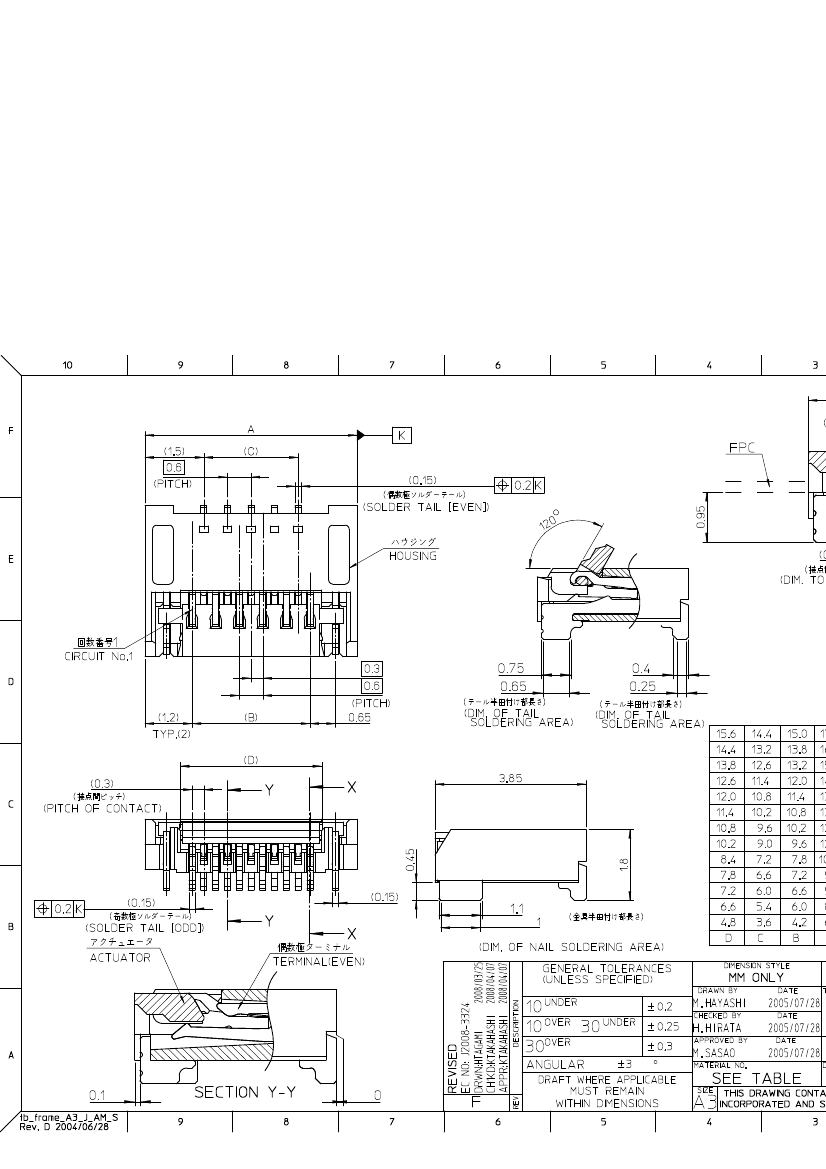

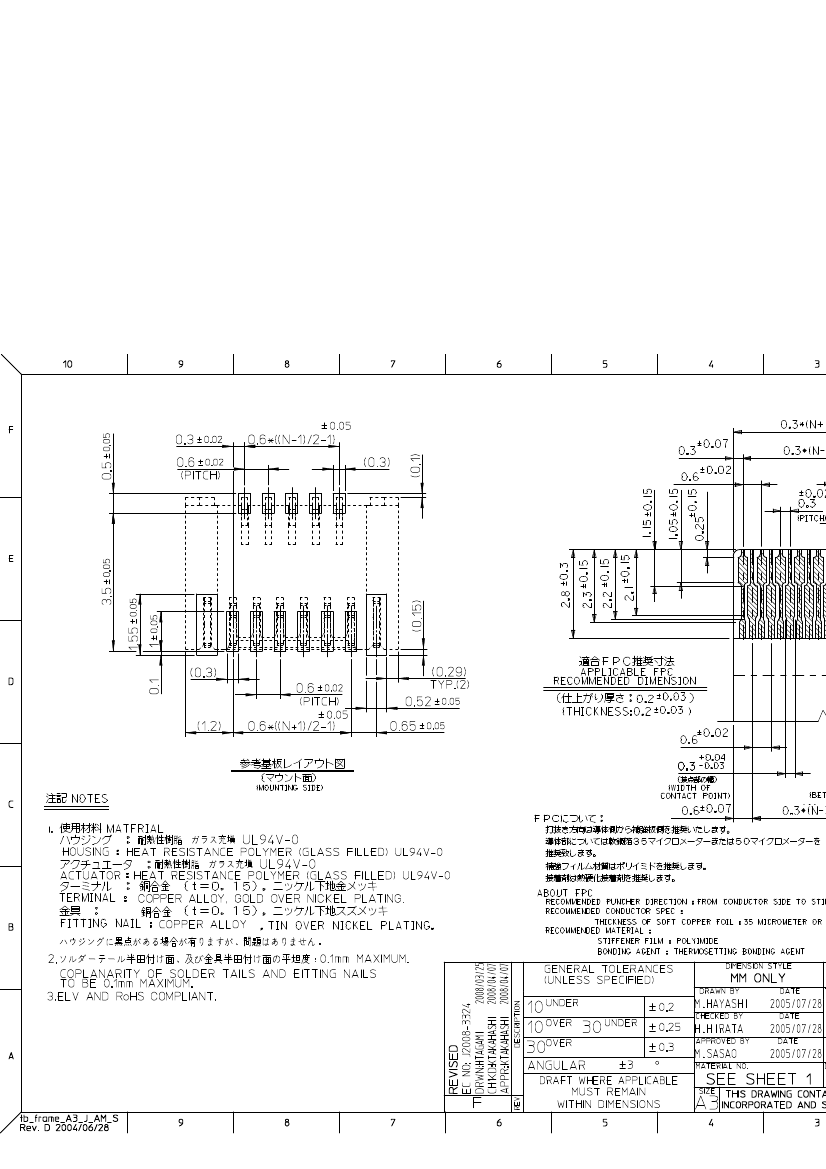

Sales Drawing

PS-501912-001, RPS-501912-002, RPS-501912-003

SD-501912-001, SD-501912-002

SD-501912-001 Related Products

	SD-501912-001	SD-501912-002
Description	33 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SURFACE MOUNT	33 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SURFACE MOUNT
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact materials	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Terminal spacing	0.3000 mm	0.3000 mm
Total number of contacts	33	33
Processing package description	ROHS COMPLIANT	ROHS COMPLIANT
EU RoHS regulations	Yes	Yes
China RoHS regulations	Yes	Yes
state	Active	Active
Contact surface matching	GOLD (4)	GOLD (4)
Contact coated terminals	GOLD (2)	GOLD (2)
Connector male and female	FEMALE	FEMALE
According to DIN	NO	NO
Filter characteristics	NO	NO
Comply with IEC	NO	NO
jesd_609_code	e4	e4
Manufacturer Series	501912	501912
Meet MIL	NO	NO
hybrid connection	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of load rows	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal type	SURFACE MOUNT	SURFACE MOUNT
UL flammability code	94V-0	94V-0
