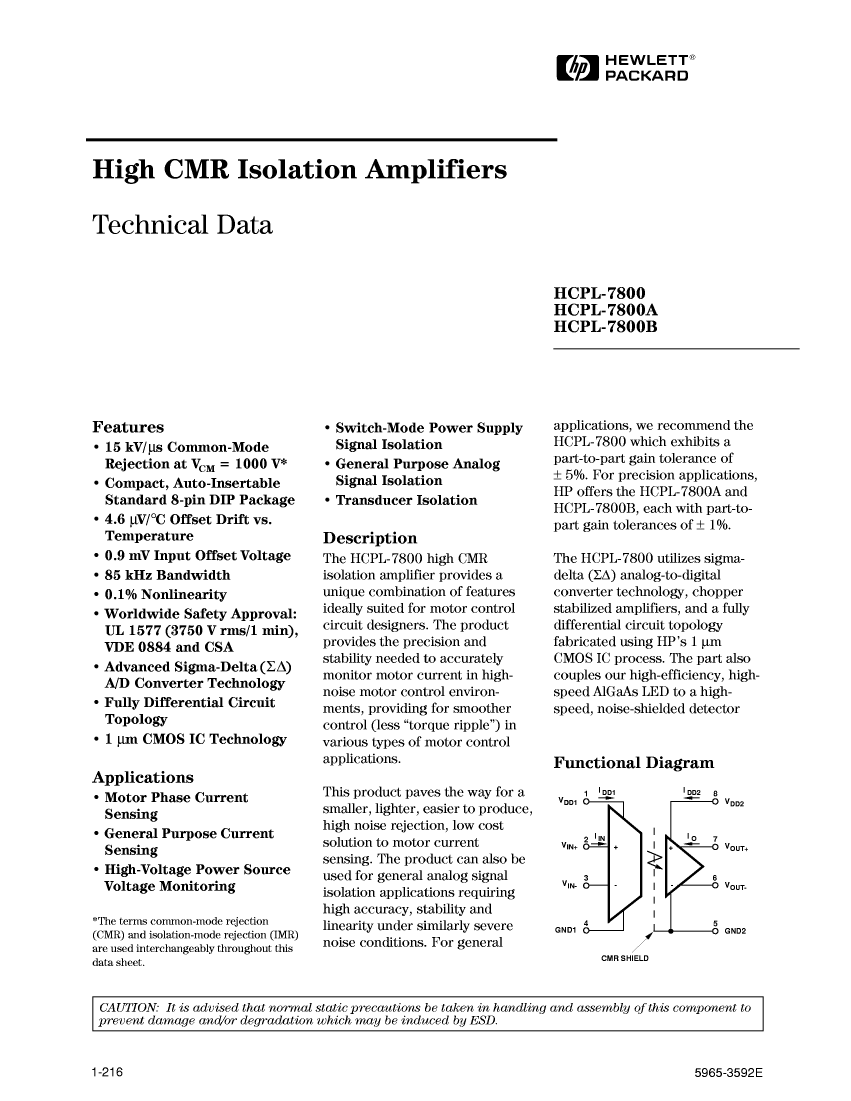

ISOLATION AMPLIFIER, 3750V ISOLATION-MIN, 85kHz BAND WIDTH, PDSO8

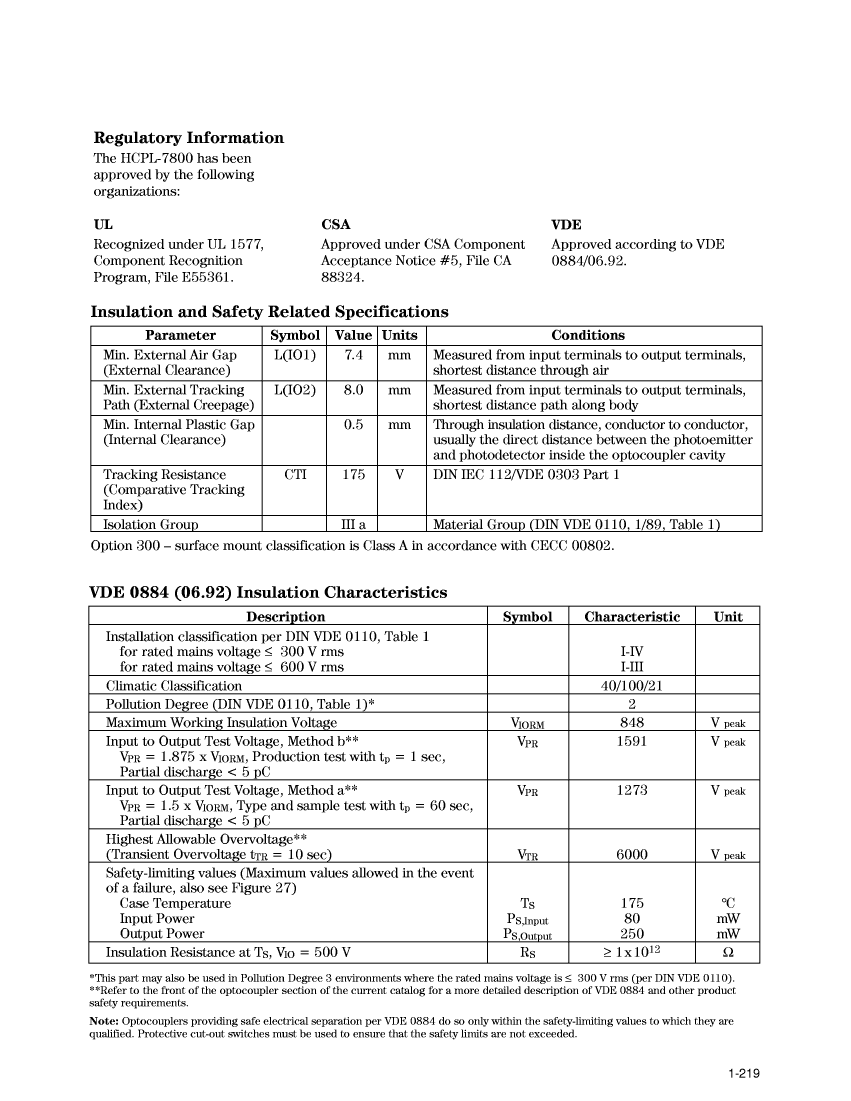

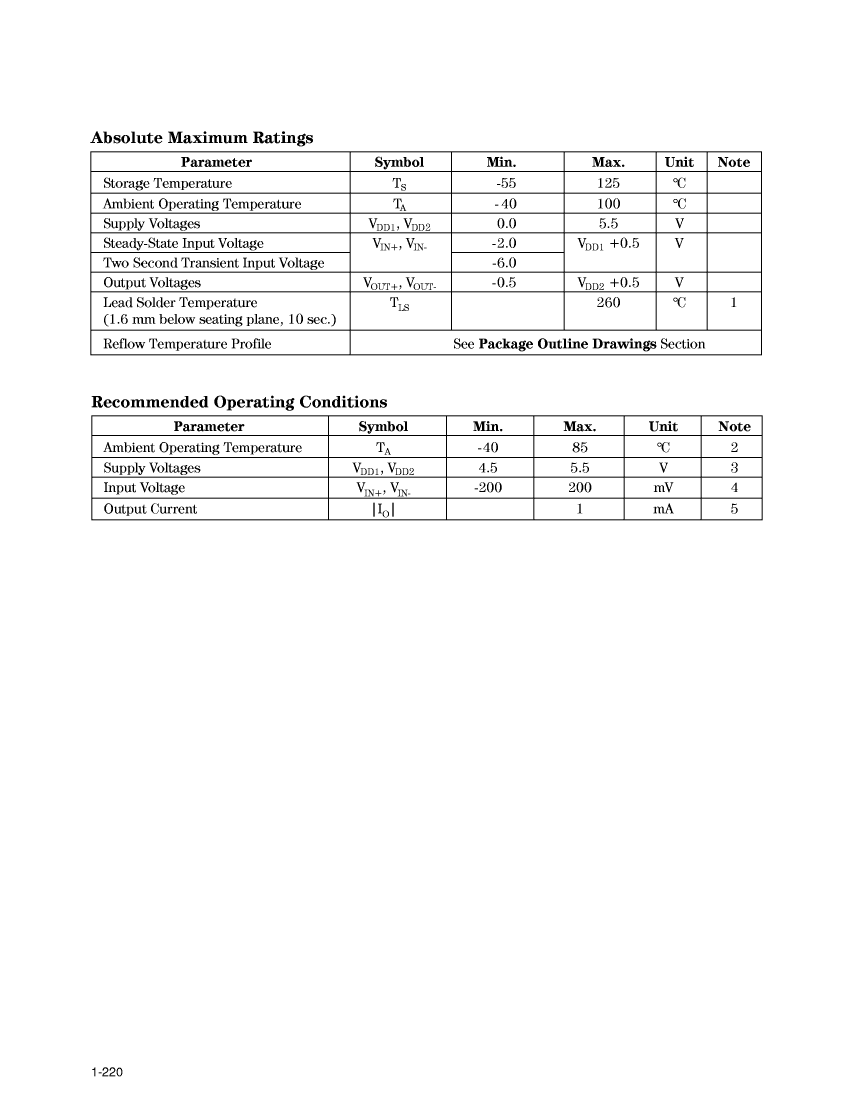

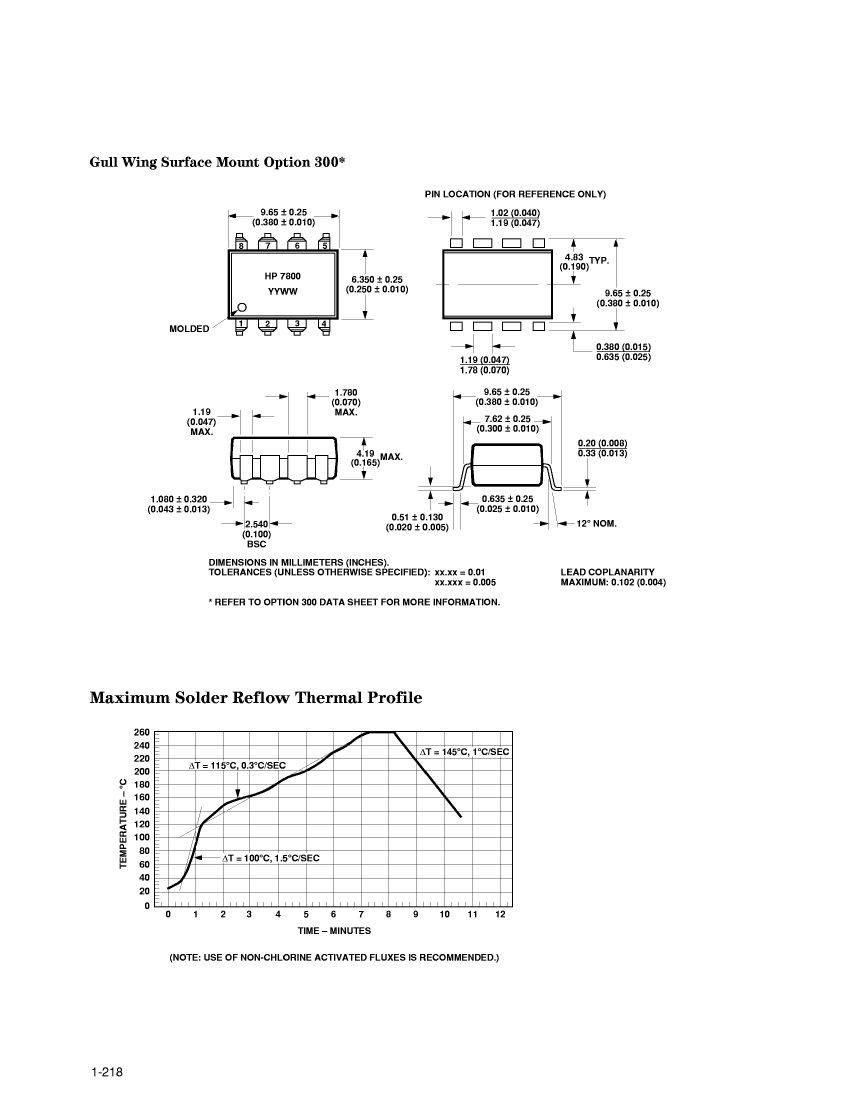

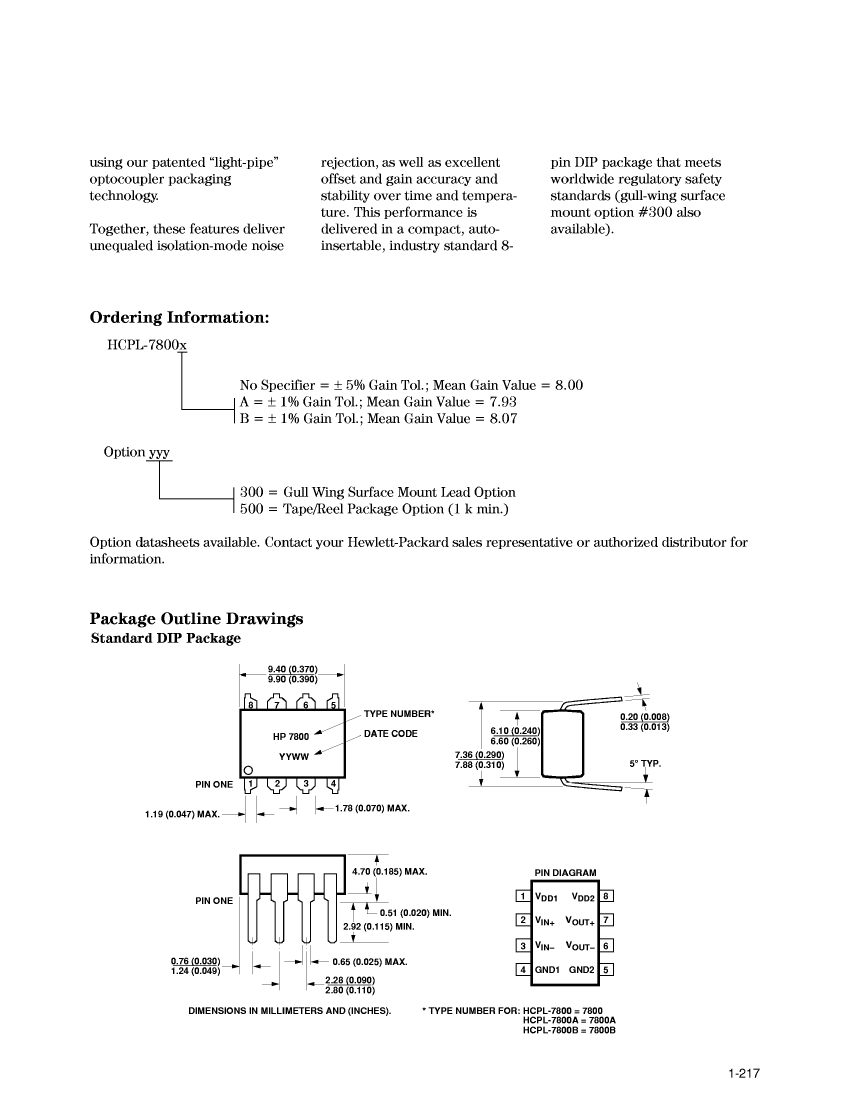

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | AVAGO |
| Parts packaging code | SOIC |
| package instruction | SOP, |
| Contacts | 8 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Amplifier type | ISOLATION AMPLIFIER |
| Nominal bandwidth (3dB) | 85 MHz |
| Maximum common mode voltage | 3750 V |
| Minimum insulation voltage | 3750 V |
| JESD-30 code | R-PDSO-G8 |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 100 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | 245 |
| Certification status | Not Qualified |
| Supply voltage upper limit | 5.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| Temperature level | INDUSTRIAL |
| Terminal form | GULL WING |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | 30 |
| Maximum voltage gain | 8.01 |
| Minimum voltage gain | 7.85 |
| HCPL-7800AOPTION300 | HCPL-7800AOPTION500 | HCPL-7800BOPTION300 | HCPL-7800BOPTION500 | |
|---|---|---|---|---|
| Description | ISOLATION AMPLIFIER, 3750V ISOLATION-MIN, 85kHz BAND WIDTH, PDSO8 | ISOLATION AMPLIFIER, 3750V ISOLATION-MIN, 85kHz BAND WIDTH, PDSO8 | ISOLATION AMPLIFIER, 3750V ISOLATION-MIN, 85kHz BAND WIDTH, PDSO8 | ISOLATION AMPLIFIER, 3750V ISOLATION-MIN, 85kHz BAND WIDTH, PDSO8 |
| Maker | AVAGO | AVAGO | AVAGO | AVAGO |
| Parts packaging code | SOIC | SOIC | SOIC | SOIC |
| package instruction | SOP, | SOP, | SOP, | SOP, |
| Contacts | 8 | 8 | 8 | 8 |
| Reach Compliance Code | compliant | compliant | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 |
| Amplifier type | ISOLATION AMPLIFIER | ISOLATION AMPLIFIER | ISOLATION AMPLIFIER | ISOLATION AMPLIFIER |
| Nominal bandwidth (3dB) | 85 MHz | 85 MHz | 85 MHz | 85 MHz |
| Maximum common mode voltage | 3750 V | 3750 V | 3750 V | 3750 V |
| Minimum insulation voltage | 3750 V | 3750 V | 3750 V | 3750 V |
| JESD-30 code | R-PDSO-G8 | R-PDSO-G8 | R-PDSO-G8 | R-PDSO-G8 |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of terminals | 8 | 8 | 8 | 8 |
| Maximum operating temperature | 100 °C | 100 °C | 100 °C | 100 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | SOP | SOP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | 245 | 245 | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Supply voltage upper limit | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | YES |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | 30 | 30 | NOT SPECIFIED | NOT SPECIFIED |
| Maximum voltage gain | 8.01 | 8.01 | 8.15 | 8.15 |
| Minimum voltage gain | 7.85 | 7.85 | 7.99 | 7.99 |
