HFA9P0005-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> HFA9P0005-9

HFA9P0005-9: DescriptionOP-AMP, 15000uV OFFSET-MAX, 300MHz BAND WIDTH, PDSO8, PACKAGE-8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size1MB，11 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

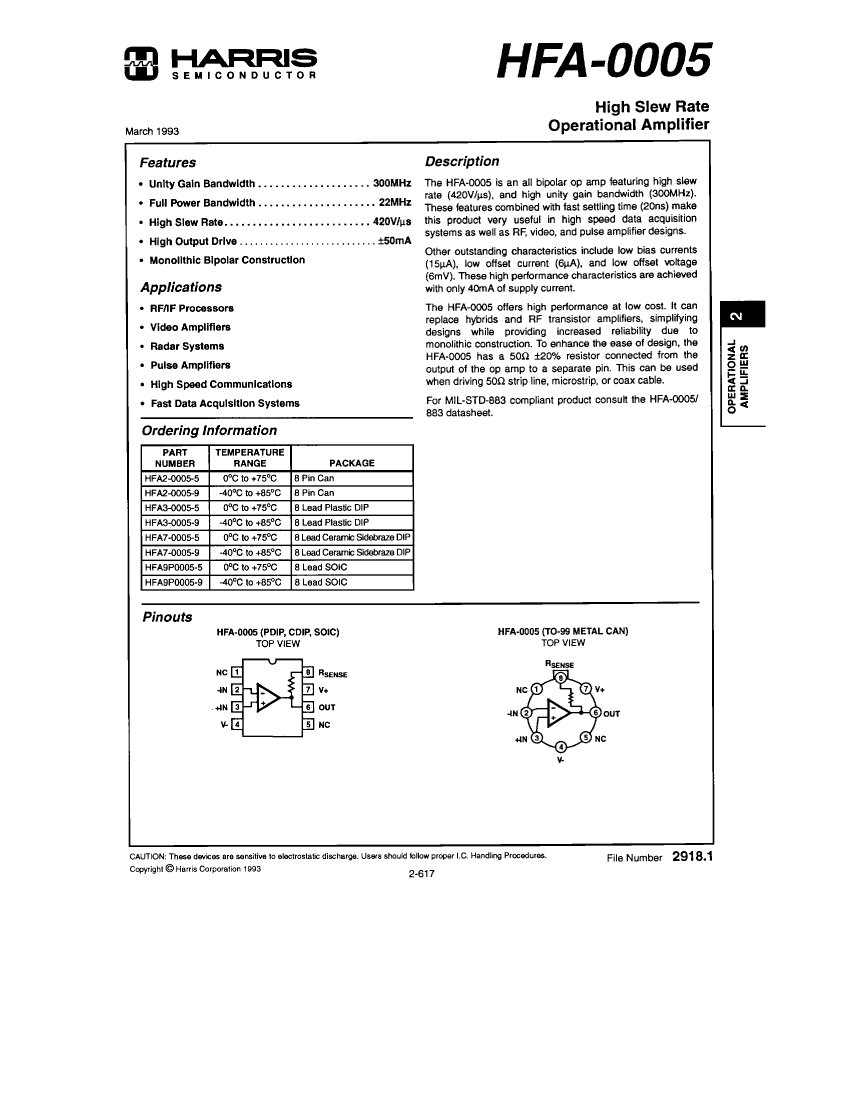

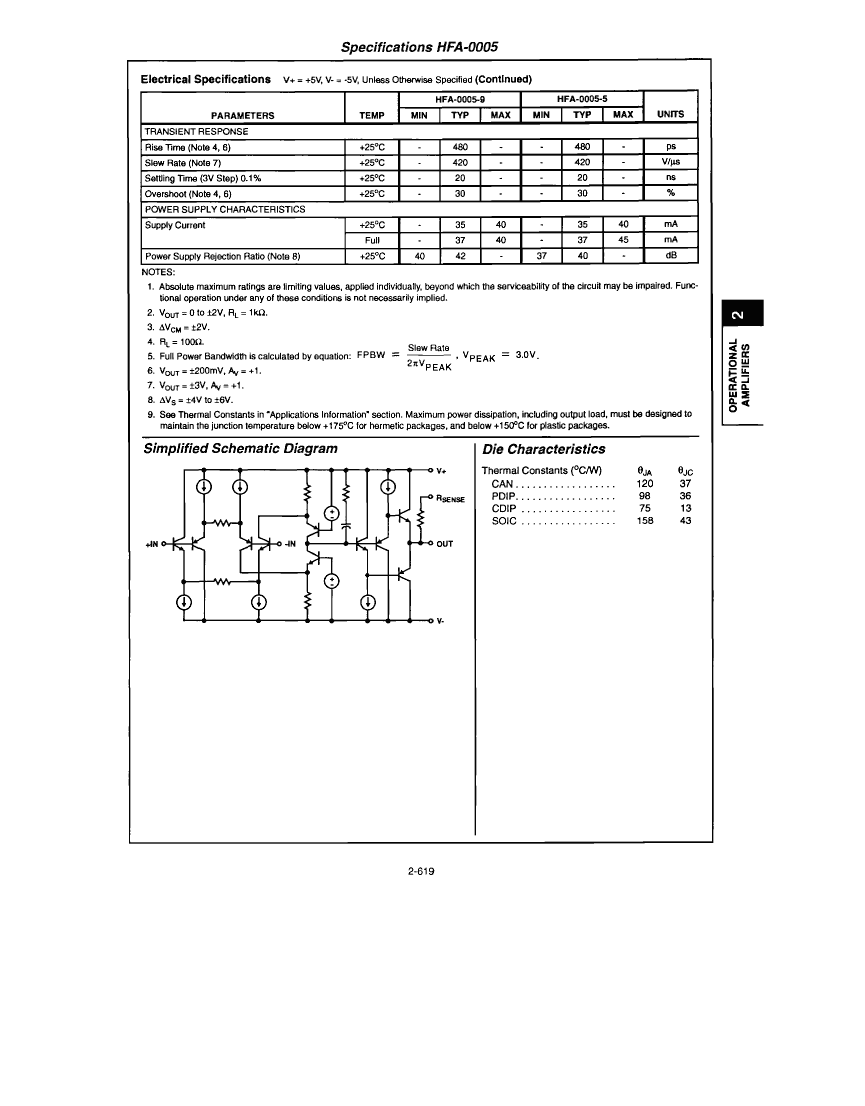

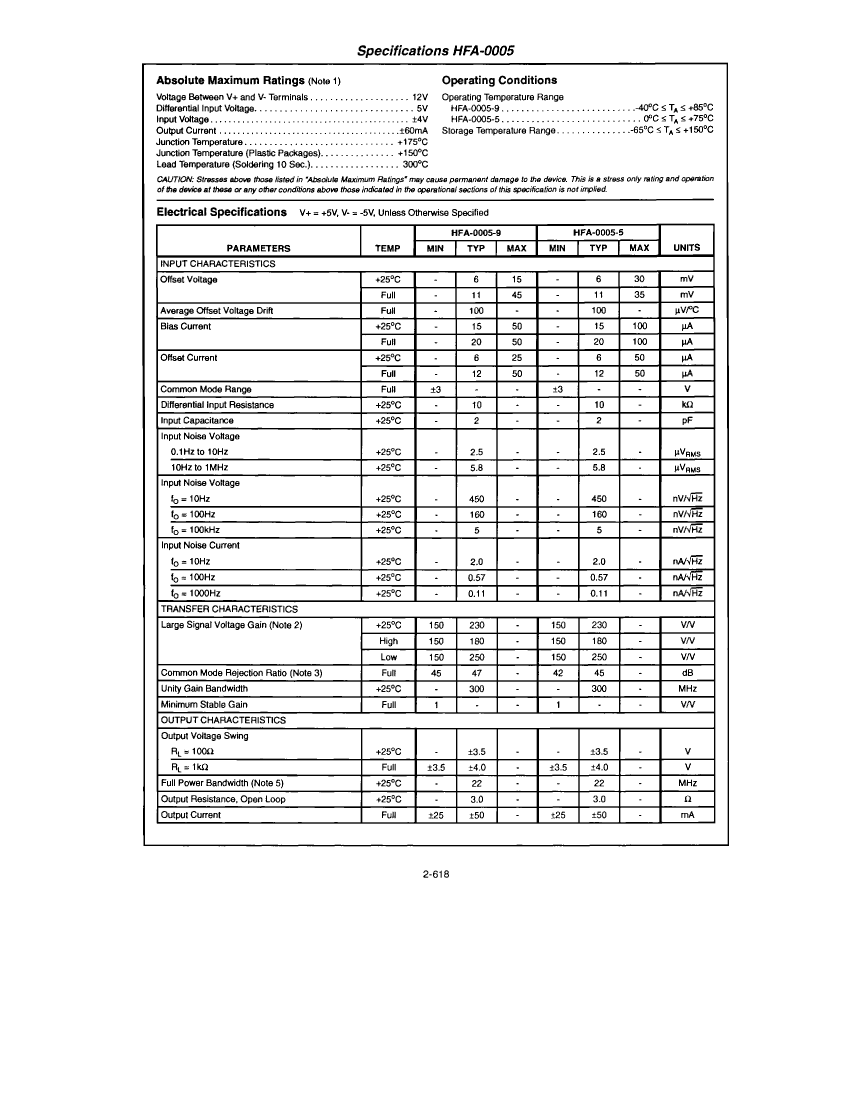

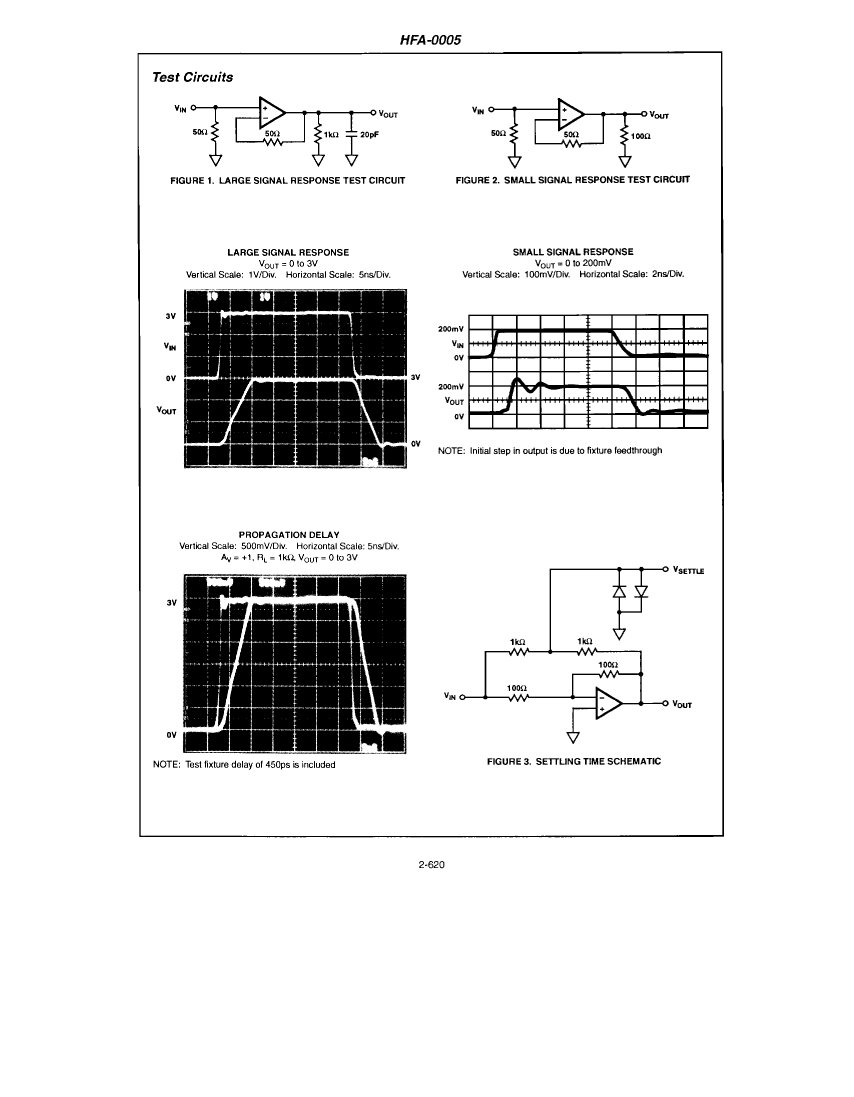

HFA9P0005-9 Overview

OP-AMP, 15000uV OFFSET-MAX, 300MHz BAND WIDTH, PDSO8, PACKAGE-8

HFA9P0005-9 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Rochester Electronics
Parts packaging code	SOIC
package instruction	PACKAGE-8
Contacts	8
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	50 µA
Nominal Common Mode Rejection Ratio	47 dB
Maximum input offset voltage	15000 µV
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
Humidity sensitivity level	NOT SPECIFIED
Negative supply voltage upper limit	-6 V
Nominal Negative Supply Voltage (Vsup)	-5 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Nominal slew rate	420 V/us
Supply voltage upper limit	6 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	300000 kHz

Preview

Download Datasheet

View All

D ts e t

aa h e

R c e t r lc r nc

o h se Ee to is

Ma u a t r dCo o e t

n fc u e

mp n n s

R c e tr b a d d c mp n ns ae

o h se rn e

o oet r

ma ua trd u ig ete dewaes

n fcue sn i r i/ fr

p rh s d f m te oiia s p l r

uc a e r

o h r n l u pi s

o R c e tr waes rce td f m

r o h se

fr e rae r

te oiia I. Al rce t n ae

r nl P

l e rai s r

d n wi tea p o a o teOC

o e t h p rv l f h

P r aetse u igoiia fcoy

at r e td sn r n la tr

ts p o rmso R c e tr e eo e

e t rga

r o h se d v lp d

ts s lt n t g aa te p o u t

e t oui s o u rne

rd c

me t o e c e teOC d t s e t

es r x e d h

M aa h e.

Qu l yOv riw

e ve

• IO- 0 1

S 90

•A 92 cr ct n

S 1 0 et ai

• Qu l e Ma ua trr Ls (

ai d

n fcues it QML MI- R -

) LP F

385

•C a sQ Mitr

lay

•C a sVS a eL v l

p c ee

• Qu l e S p l r Ls o D sr uos( L )

ai d u pi s it f it b tr QS D

•R c e trsacic l u pir oD A a d

o h se i

r ia s p l t L n

me t aln u t a dD A sa d r s

es lid sr n L tn ad .

R c e tr lcrnc , L i c mmi e t

o h se Ee t is L C s o

tdo

s p ligp o u t ta s t f c so r x e t-

u pyn rd cs h t ai y u tme e p ca

t n fr u lya daee u loto eoiial

i s o q ai n r q a t h s r n l

s p l db id sr ma ua trr.

u pi

e yn ut

y n fcues

T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e

h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c

a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n

n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -

isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -

c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a

t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g

i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu r xmu ai s

ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig

y e a e n rd c c aa tr t , e in smuai , r a l e t .

z o

0 3 ohs E cr i , L . lRg s eevd 7 1 0 3

e e oc

T l r m r, l s v iw wrcl . m

o e n oe p ae it w . e c o

o ec

HFA9P0005-9 Related Products

	HFA9P0005-9	HFA3-0005-9	HFA7-0005-5	HFA3-0005-5	HFA2-0005-5	HFA2-0005-9
Description	OP-AMP, 15000uV OFFSET-MAX, 300MHz BAND WIDTH, PDSO8, PACKAGE-8	OP-AMP, 15000uV OFFSET-MAX, 300MHz BAND WIDTH, PDIP8, PACKAGE-8	OP-AMP, 30000 uV OFFSET-MAX, 300 MHz BAND WIDTH, CDIP8, PACKAGE-8	OP-AMP, 30000uV OFFSET-MAX, 300MHz BAND WIDTH, PDIP8, PACKAGE-8	OP-AMP, 30000 uV OFFSET-MAX, 300 MHz BAND WIDTH, MBCY8, TO-99, 8 PIN	OP-AMP, 15000 uV OFFSET-MAX, 300 MHz BAND WIDTH, MBCY8, TO-99, 8 PIN
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics
Parts packaging code	SOIC	DIP	DIP	DIP	TO-99	TO-99
package instruction	PACKAGE-8	PACKAGE-8	DIP,	PACKAGE-8	,	,
Contacts	8	8	8	8	8	8
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	50 µA	50 µA	100 µA	100 µA	100 µA	50 µA
Nominal Common Mode Rejection Ratio	47 dB	47 dB	45 dB	45 dB	45 dB	47 dB
Maximum input offset voltage	15000 µV	15000 µV	30000 µV	30000 µV	30000 µV	15000 µV
JESD-30 code	R-PDSO-G8	R-PDIP-T8	R-CDIP-T8	R-PDIP-T8	O-MBCY-W8	O-MBCY-W8
JESD-609 code	e0	e0	e0	e0	e0	e0
Humidity sensitivity level	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Negative supply voltage upper limit	-6 V	-6 V	-6 V	-6 V	-6 V	-6 V
Nominal Negative Supply Voltage (Vsup)	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V
Number of functions	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8
Maximum operating temperature	85 °C	85 °C	75 °C	75 °C	75 °C	85 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	METAL	METAL
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	ROUND	ROUND
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	CYLINDRICAL	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Nominal slew rate	420 V/us	420 V/us	420 V/us	420 V/us	420 V/us	420 V/us
Supply voltage upper limit	6 V	6 V	6 V	6 V	6 V	6 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	WIRE	WIRE
Terminal location	DUAL	DUAL	DUAL	DUAL	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	300000 kHz	300000 kHz	300000 kHz	300000 kHz	300000 kHz	300000 kHz
encapsulated code	SOP	DIP	DIP	DIP	-	-
