705-51-0054 datasheet, PDF - EEWORLD Datasheet

705-51-0054: Description2.54mm (.100") Pitch SL垄芒 Header, Single Row, Right Angle, .120" Pocket, Shrouded,with Beveled Plastic Peg, 20 Circuits, 0.38楼矛m (15楼矛") Gold (Au) Selective Plating, Tin; File Size297KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

705-51-0054 Overview

2.54mm (.100") Pitch SL垄芒 Header, Single Row, Right Angle, .120" Pocket, Shrouded,with Beveled Plastic Peg, 20 Circuits, 0.38楼矛m (15楼矛") Gold (Au) Selective Plating, Tin

Preview

Download Datasheet

View All

This document was generated on 05/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0705510054

Active

cgrid__sl_products

2.54mm (.100") Pitch SL™ Header, Single Row, Right Angle, .120" Pocket, Shrouded,

with Beveled Plastic Peg, 20 Circuits, 0.38µm (15µ") Gold (Au) Selective Plating, Tin

(Sn) PC Tail Plating

Documents:

3D Model

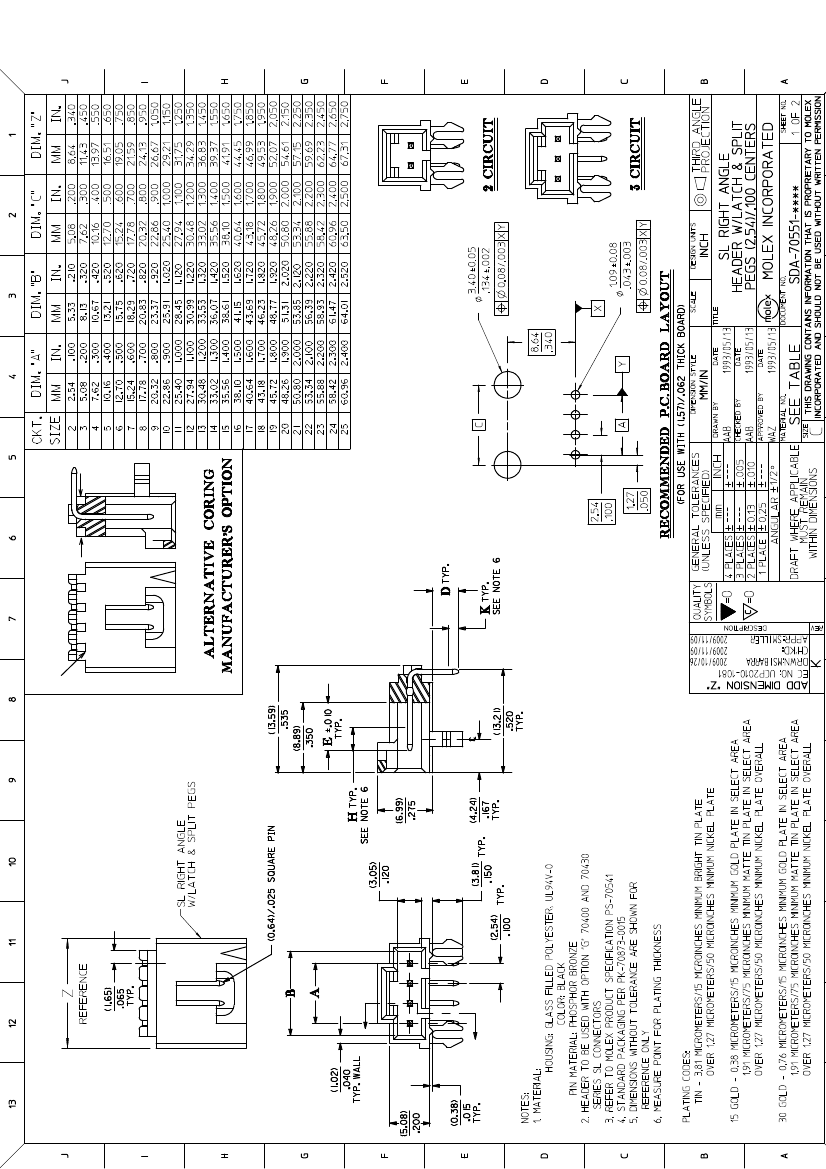

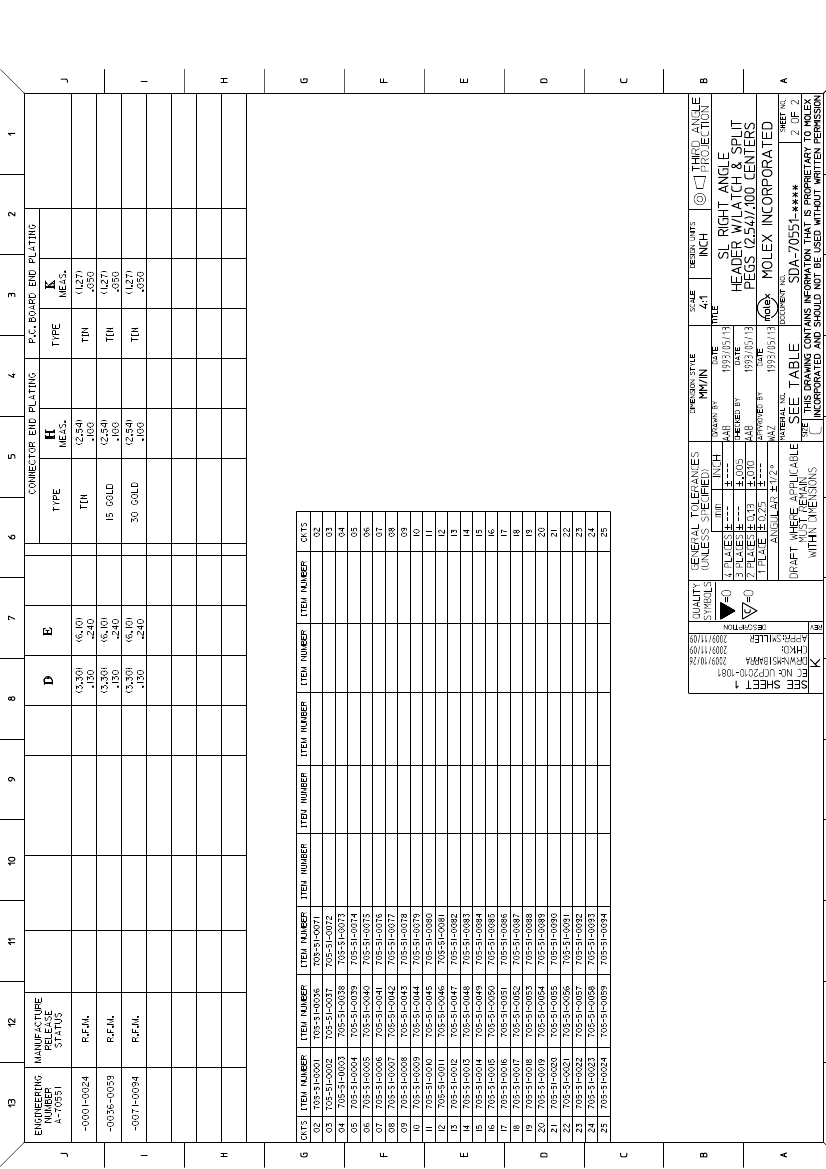

Drawing (PDF)

Packaging Specification (PDF)

Product Specification PS-70400 (PDF)

Product Specification PS-70541 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Overview

Product Name

PCB Headers

70551

Wire-to-Board

cgrid__sl_products

SL™

EU RoHS

ELV and

Complia

REACH S

Not Revie

Halogen

Status

Not Revi

Need mo

environm

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Shrouded

Black

94V-0

None

Yes

Brass, Phosphor Bronze

Gold

Tin

High Temperature Thermoplastic

Right Angle

0.130 In

3.30 mm

Yes

0.062 In

1.60 mm

Tube

0.100 In

2.54 mm

0.375

1.875

Yes

Fully

Email pro

For a mu

Complian

Please vi

non-prod

70551S

Mates

SL™ C
