70563-0020: Description2.54mm (.100") Pitch SL Header, Single Row, Vertical, .180" Pocket, Shrouded, 21Circuits, 0.38mm (15") Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating; CategoryThe connector The connector; File Size212KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

70563-0020 Overview

2.54mm (.100") Pitch SL Header, Single Row, Vertical, .180" Pocket, Shrouded, 21Circuits, 0.38mm (15") Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating

70563-0020 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknow
Other features	SL, POLARIZED
body width	0.323 inch
subject depth	0.45 inch
body length	2.27 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL
Contact completed and terminated	TIN (75) OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	600VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYCARBONATE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	70563
Plug contact pitch	0.1 inch
Plug information	15-04-5212
Mixed contacts	NO
Installation option 1	LATCH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
polarization key	CTR W/GUIDE SLOTS
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	21
UL Flammability Code	94V-0

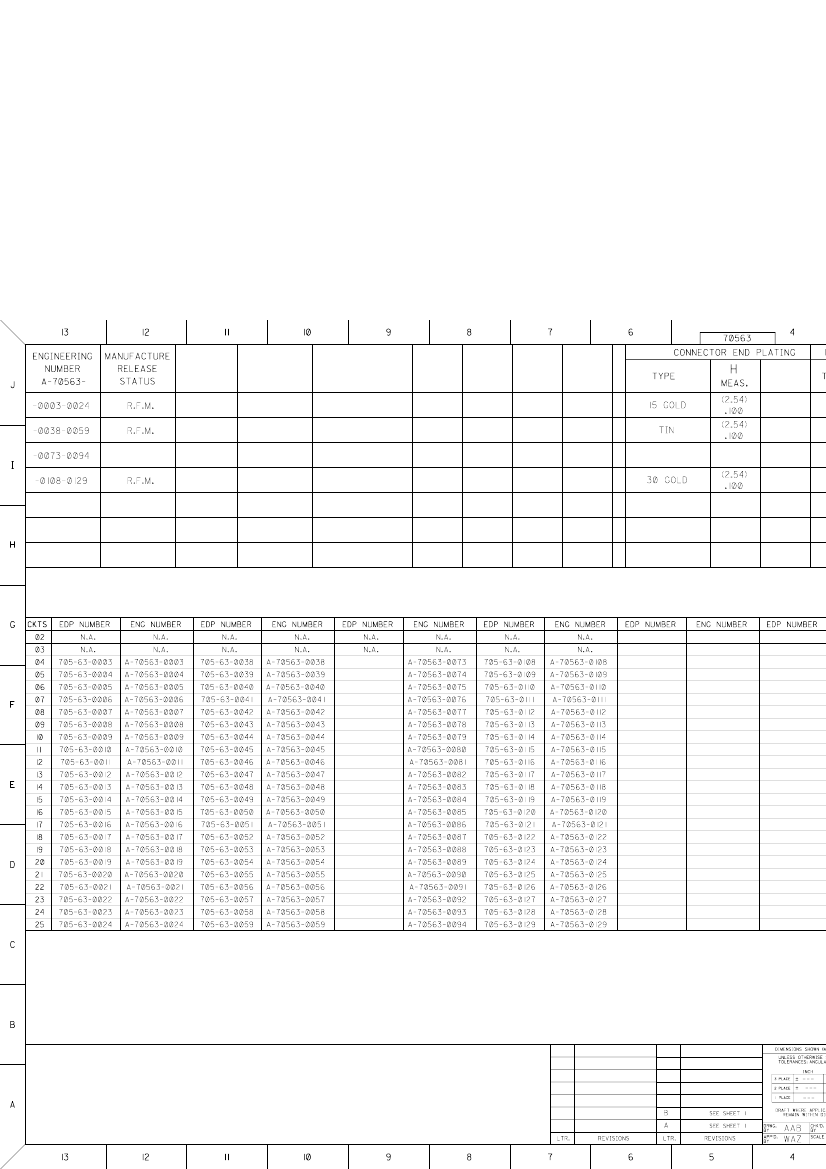

Preview

Download Datasheet

View All

This document was generated on 05/28/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0705630020

Active

cgrid__sl_products

2.54mm (.100") Pitch SL™ Header, Single Row, Vertical, .180" Pocket, Shrouded, 21

Circuits, 0.38µm (15µ") Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating

Documents:

3D Model

Packaging Specification (PDF)

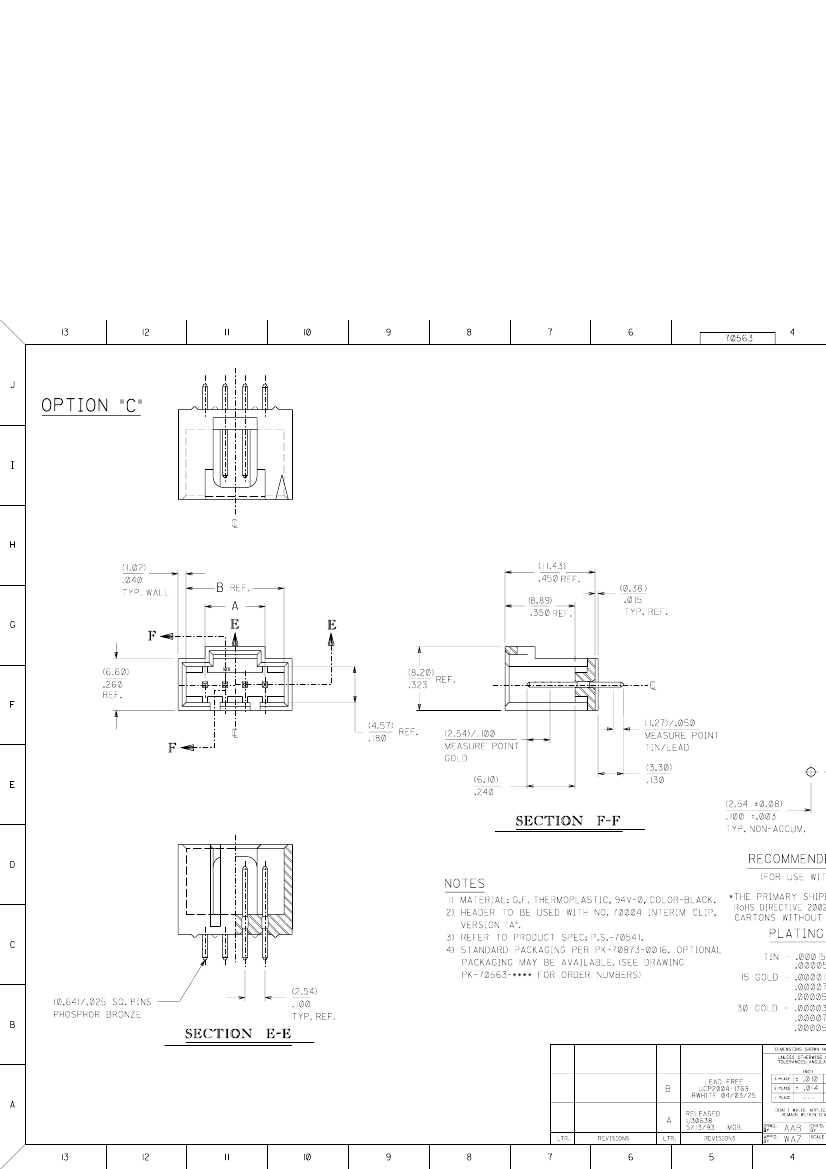

Drawing (PDF)

Product Specification PS-70400 (PDF)

Product Specification PS-70541 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Overview

Product Name

PCB Headers

70563

Wire-to-Board

cgrid__sl_products

SL™

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Guide to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Black

94V-0

Yes

Brass, Phosphor Bronze

Gold

Tin

High Temperature Thermoplastic

Vertical

0.130 In

3.30 mm

None

0.062 In

1.60 mm

Tube

0.100 In

2.54 mm

0.375

1.875

Yes

Fully

-40°C to +105°C

Through Hole

EU RoHS

ELV and

Complia

REACH S

Not Revie

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

70563S

Mates

70004
