85052-0658 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 85052-0658

85052-0658: Description2.54mm (.100) Pitch DIN 41612 Receptacle, Style R Reverse, 32 Circuits; CategoryThe connector The connector; File Size123KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

85052-0658 Overview

2.54mm (.100) Pitch DIN 41612 Receptacle, Style R Reverse, 32 Circuits

85052-0658 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARDS: DIN 41612; IEC 603-2
body width	0.413 inch
subject depth	0.418 inch
body length	3.701 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	YES
maximum insertion force	.9452 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	85052
Plug contact pitch	0.2 inch
Match contact row spacing	0.2 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,C
PCB row number	3
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	24u inch
polarization key	ENDS
Rated current (signal)	1.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32
UL Flammability Code	94V-0
Base Number Matches	1

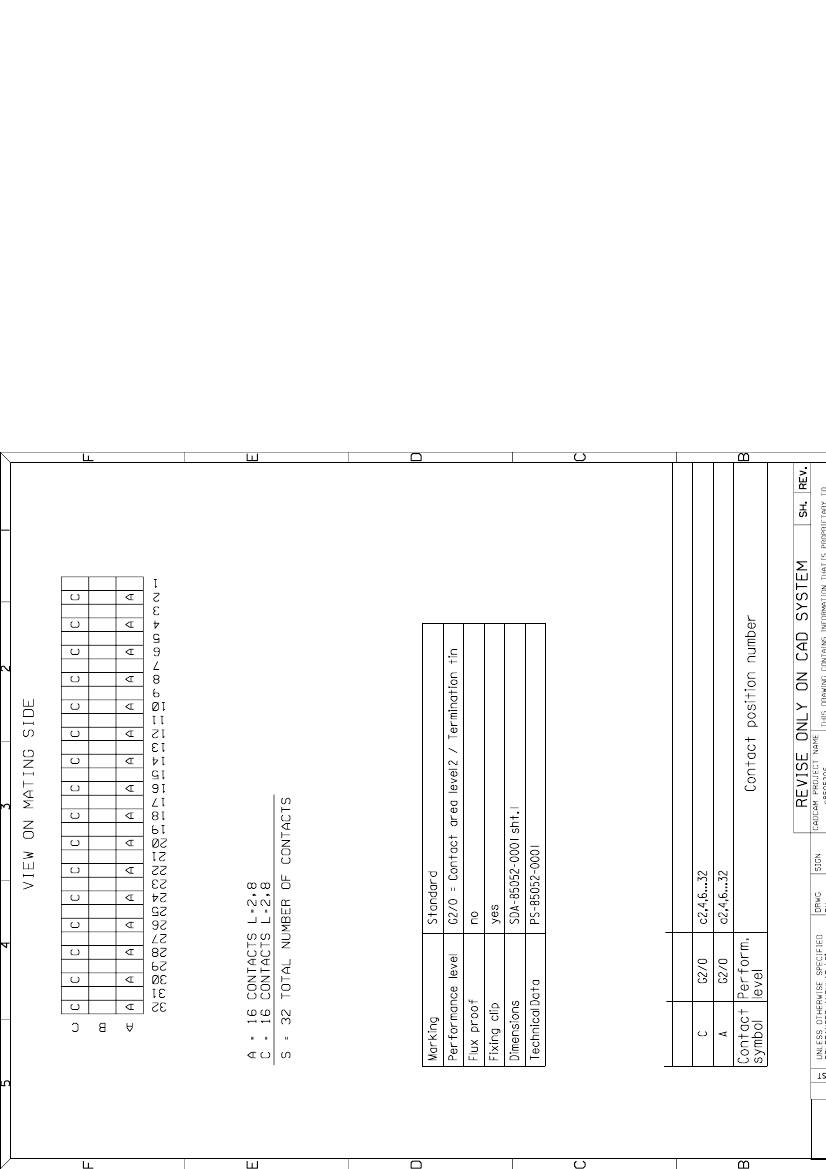

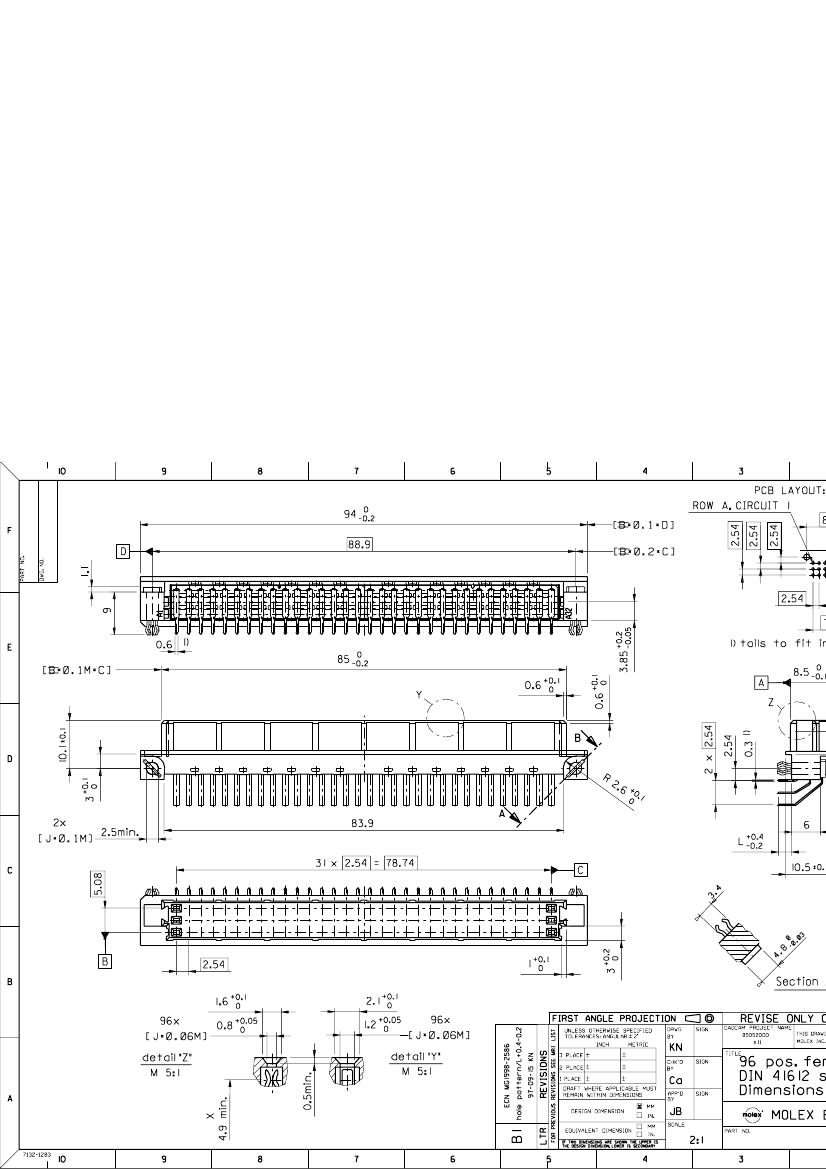

Preview

Download Datasheet

View All

This document was generated on 05/17/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

Documents:

3D Model

Drawing (PDF)

0850520658

Active

din_41612

2.54mm (.100") Pitch DIN 41612 Receptacle, Style R Reverse, 32 Circuits

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Component Type

Overview

Product Name

Style

Backplane Connectors

85052

Backplane

PCB Receptacle

din_41612

IEC 603-2/DIN 41612

Physical

Circuits (Loaded)

Circuits (maximum)

Durability (mating cycles max)

First Mate / Last Break

Flammability

Guide to Mating Part

Keying to Mating Part

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

400

94V-0

Yes

Open Pin Field

Right Angle

0.110 In

2.80 mm

Yes

0.063 In, 0.126 In

1.60 mm, 3.20 mm

Tray

0.100 In

2.54 mm

0.100 In

2.54 mm

Yes

-55°C to +125°C

Through Hole

EU RoHS

ELV and

Complia

REACH S

Not Revi

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

85052S

Mates

DIN 41

Electrical

Current - Maximum per Contact

Data Rate

Real Signals (per 25mm)

Voltage - Maximum

2.5A

622.0 Mbps

250V AC (RMS)
