EURO
QUARTZ
Miniature 7 x 5 x 2.5mm SMD package
Frequency range: 20.0 to 50.0kHz; 32.768kHz
Supply voltage 3.3 or 5.0 Volts
Frequency stability from ±1ppm over -30 to +75°C
RoHS compliant
DESCRIPTION
EM57T series TCXOs are packaged in a miniature 4 pad ceramic SMD
package. With squarewave (CMOS) output, tolerances are available
from ±1.0ppm over -30° to +75°C. The part has a 0.01mF decoupling
capacitor built in.
SPECIFICATION
Product Series Code
TCXO:
VCTCXO:
Frequency Range:
Output Waveform:
Initial Calibration Tolerance
Models with mech. trimmer:
Models without trimmer:
Operating Temperature Range:
Frequency Stability
vs. Ageing:
vs. Voltage Change:
vs. Load Change:
vs. Reflow:
Supply Voltage:
Output Logic Levels:
Rise and Fall Times:
Duty Cycle:
Start-up Time:
Current Consumption:
FREQUENCY STABILITY
Output Load:
Storage Temperature:
EM57T
VEM57T
32.768kHz Standard frequency
20.0kHz to 50.0kHz
Squarewave
<1.0ppm (at t. 25°±2°C)
<2.0ppm (at t. 25°±2°C)
See table
±1.0 ppm max. first year
±0.3 ppm max. ±5% change
±0.3 ppm max. ±10% change
±1ppm max. for one reflow
(Measured after 24 hours)
+3.3 or +5.0Volts
(Specify
when ordering)
Logic High: 90% Vdd min.
Logic Low: 10% Vdd max.
10ns max.
50%±5%
2ms typical, 5ms max.
See table below
15pF
-55~+125°C
EM57T Series TCXO
HCMOS 7 x 5 x 2.5mm SMD, kHz Range

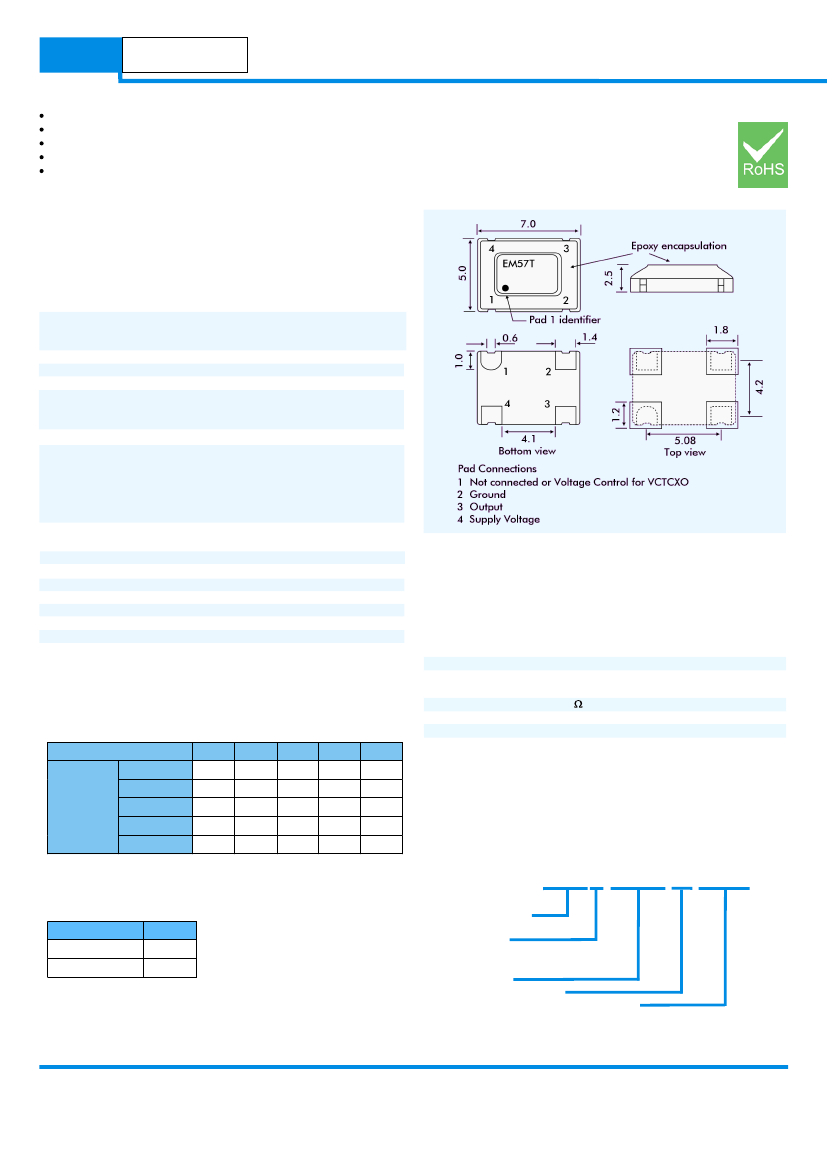

EM57T - OUTLINES AND DIMENSIONS
VEM57T VOLTAGE CONTROL SPECIFICATION
Control Voltage:
Standard = +1.5±1.0Volts for all input
voltages.
(Contact technical sales if
+2.5±2.0 Volts is required.)
Frequency Deviation: ±6.0 ppm min.
Slope Polarity:
Positive
(increase of control voltage increases
output frequency.)
Input Impedance:
10k min.
Modulation Bandwidth: 3.0kHz min. measured at -3dB
Linearity:
10% max.
FREQUENCY STABILITY
Frequency Stability (ppm)
0 ~ +50
-10 ~ +60
Temperature
Range (°C)
-20 ~ +70
-30 ~ +75
-40 ~ +85
P
±0.5
ASK
x
x
x
x
±1.0
P
P
x
x
x
±1.5
P
P
P
x
x
±2.0
P
P
P
P
x
±2.5
P
P
P
PP
P
PART NUMBERING PROCEDURE
Example:
= available, x = not available, ASK = call Technical Sales
EM57T33-32.768k-2.5/-30+75
CURRENT CONSUMPTION
Frequency
32.768kHz
50kHz
+3.3 V
8.0mA
12mA
Series Description
TCXO = EM57T
VCTCXO = VEM57T
Supply Voltage
33 = 3.3 VDC
5 = 5.0 VDC
Frequency (kHz)
Stability over OTR (±ppm)
Operating Temperature Range (OTR) (°C)
Lower and upper limits.
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk
www.euroquartz.co.uk
