This document was generated on 06/08/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
0050362281
Active
standard_062
1.57mm (.062") Diameter Standard .062" Pin and Socket Plug Housing, 9 Circuits, With
Standard Mounting Ears, Glow Wire Compatible
Documents:
3D Model
Drawing (PDF)
Product Specification PS-02-06 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
TUV
UL
LR19980
R72081037
E29179
General
Product Family
Series
Comments
Overview
Product Name
Crimp Housings
1625
Polarized to Mating Part
standard_062
Standard .062"
Physical
Circuits (maximum)
Circuits Detail
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
9
3x3
Natural
94V-0
Receptacle
Yes
None
Yes
Nylon
3
Bag
Yes
0.145 In
3.68 mm
0.145 In
3.96 mm
Yes
No
-40°C to +105°C
EU RoHS
ELV and
Complia
REACH S
Contains
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
1625Se
Mates
1625 P
Electrical
Current - Maximum per Contact
5A
Use W
Female
, 4529
Crimp T
Male P
Tail Te
Material Info
Old Part Number
1625-9R4-1
Reference - Drawing Numbers
Packaging Specification
Product Specification

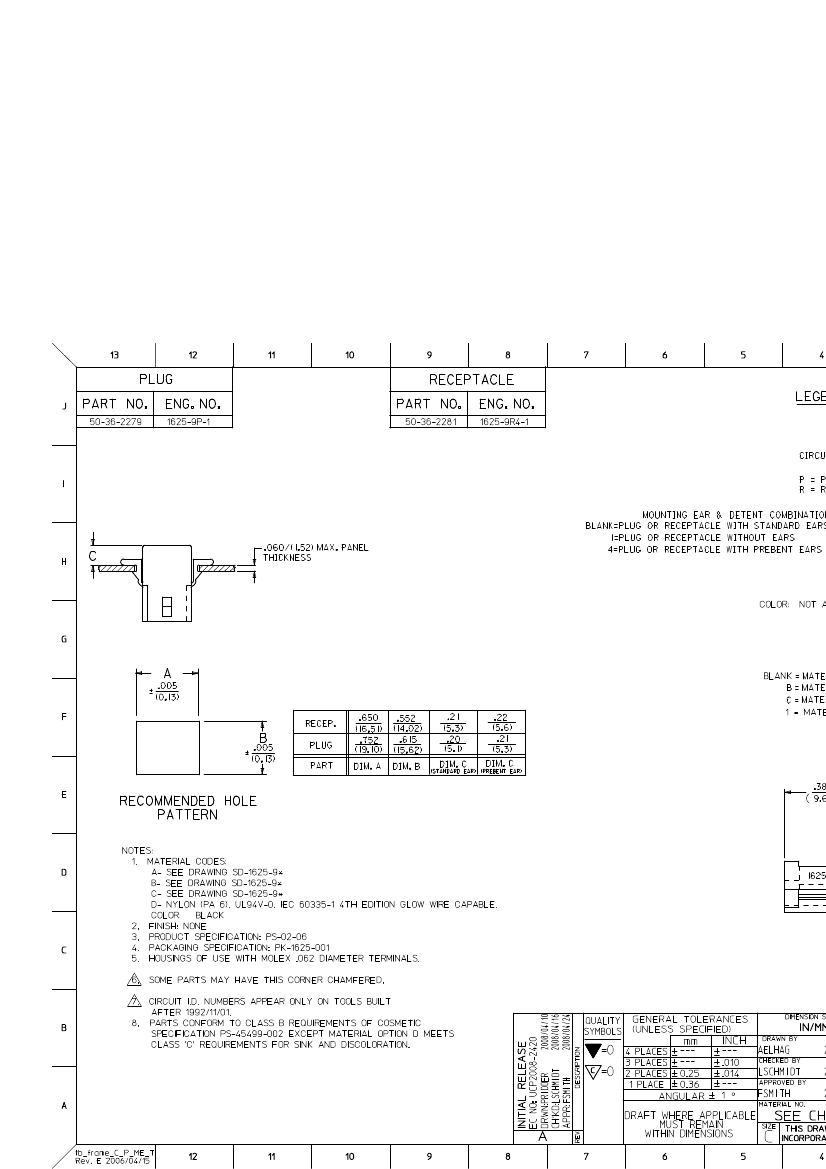

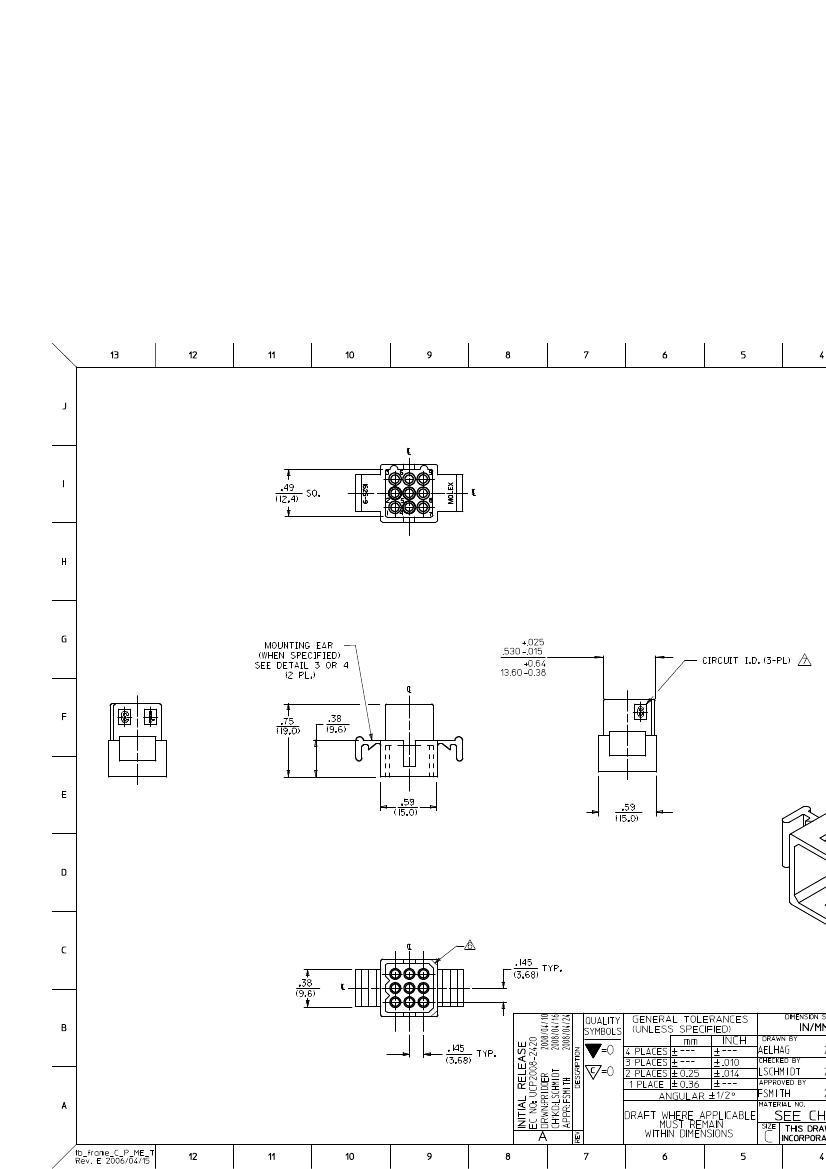

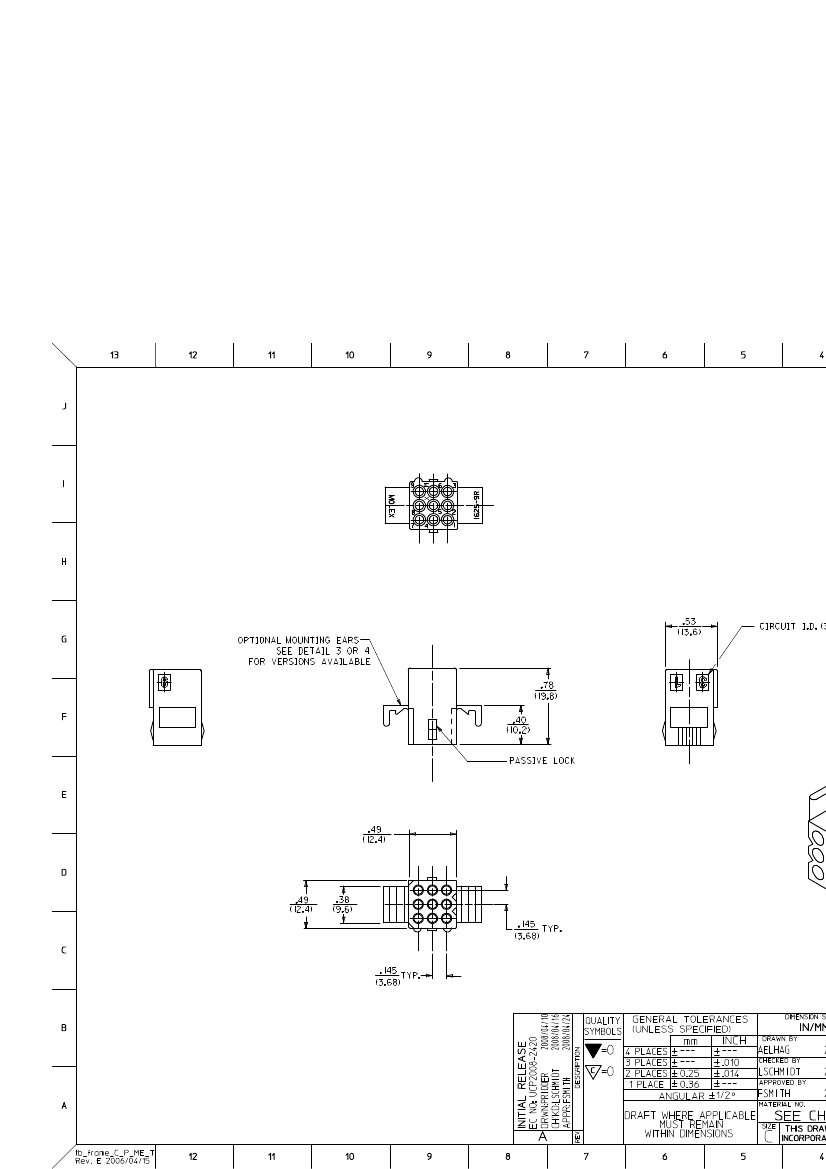

Sales Drawing
PK-1625-001
PS-02-06
SD-1625-9**
This document was generated on 06/08/2010
