5597-21CPB7F

Description
21 CONTACT(S), FEMALE, STRAIGHT FFC/FPC CONNECTOR, SOLDER
CategoryThe connector
File Size146KB,4 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

5597-21CPB7F Overview

21 CONTACT(S), FEMALE, STRAIGHT FFC/FPC CONNECTOR, SOLDER

5597-21CPB7F Parametric

Parameter NameAttribute value
Contact materialsNOT SPECIFIED
Terminal spacing1.25 mm
Total number of contacts21
Processing package descriptionLEAD FREE
Lead-freeYes
EU RoHS regulationsYes
stateACTIVE
OptionsGENERAL PURPOSE
Manufacturer Series5597
Contact surface matchingNOT SPECIFIED
Contact coated terminalsNOT SPECIFIED
Connection TypeFFC/FPC CONNECTOR
Connector male and femaleFEMALE
Installation methodSTRAIGHT
Installation typeBOARD
Number of load rows1
Terminal typeSOLDER
UL flammability code94V-0
This document was generated on 06/04/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
0039532215
Active
1.25mm (.049") Pitch FFC/FPC Connector, Through-Hole, Vertical, ZIF, 21 Circuits,
Lead-free
Agency Certification
UL
E29179
General
Product Family
Series
Overview
Product Name
FFC/FPC Connectors
5597
ffc_fpc_throughhole
N/A
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Physical
Circuits (Loaded)
Color - Resin
Contact Position
Durability (mating cycles max)
Entry Angle
Flammability
Mated Height (in)
Mated Height (mm)
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Wire/Cable Type
21
Natural
N/A
30
Vertical
94V-0
0.295 In
7.50 mm
Phosphor Bronze
Tin-Bismuth
Tin-Bismuth
Polyester
1
Vertical
0.138 In
3.50 mm
No
None
Tray
0.049 In
1.25 mm
40
1
40
1
No
No
No
-20°C to +80°C
Through Hole
FFC/FPC
Please vi
non-prod
Search
5597Se
Electrical
Current - Maximum per Contact
Voltage - Maximum
1A
200V
Material Info
Old Part Number
5597-21CPB7F

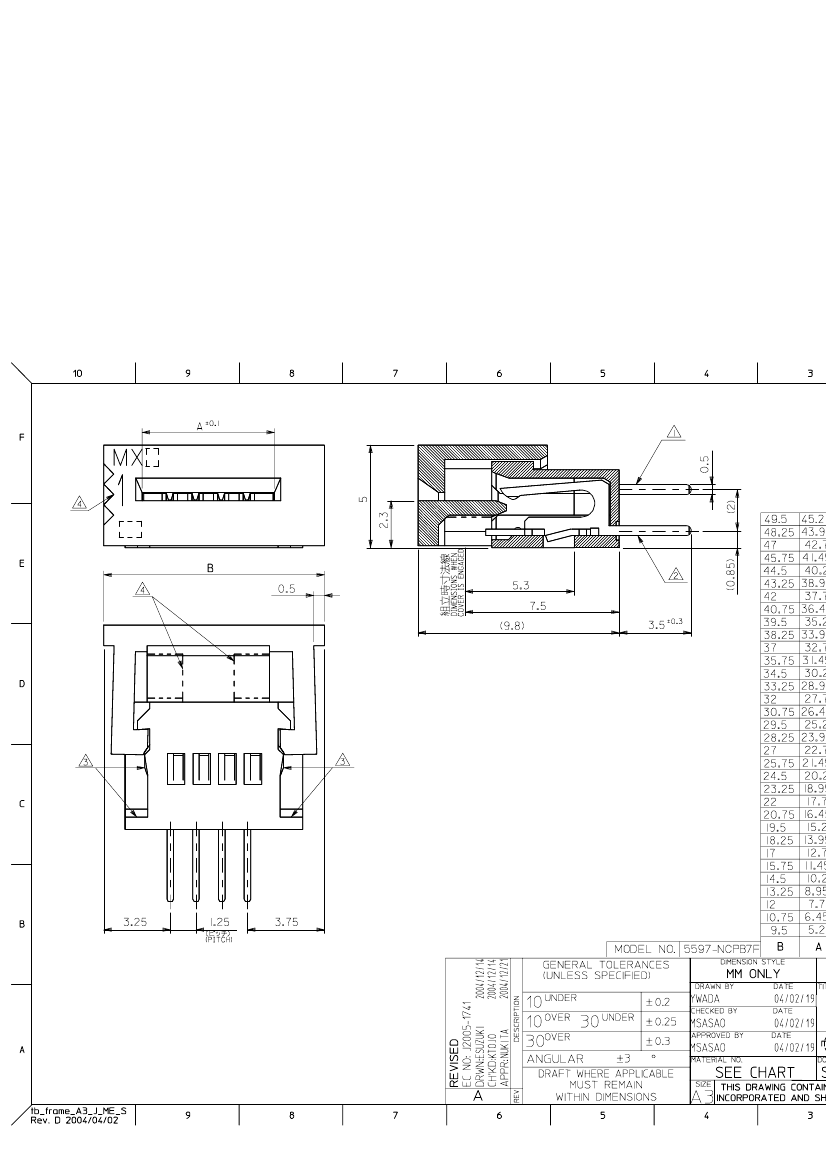

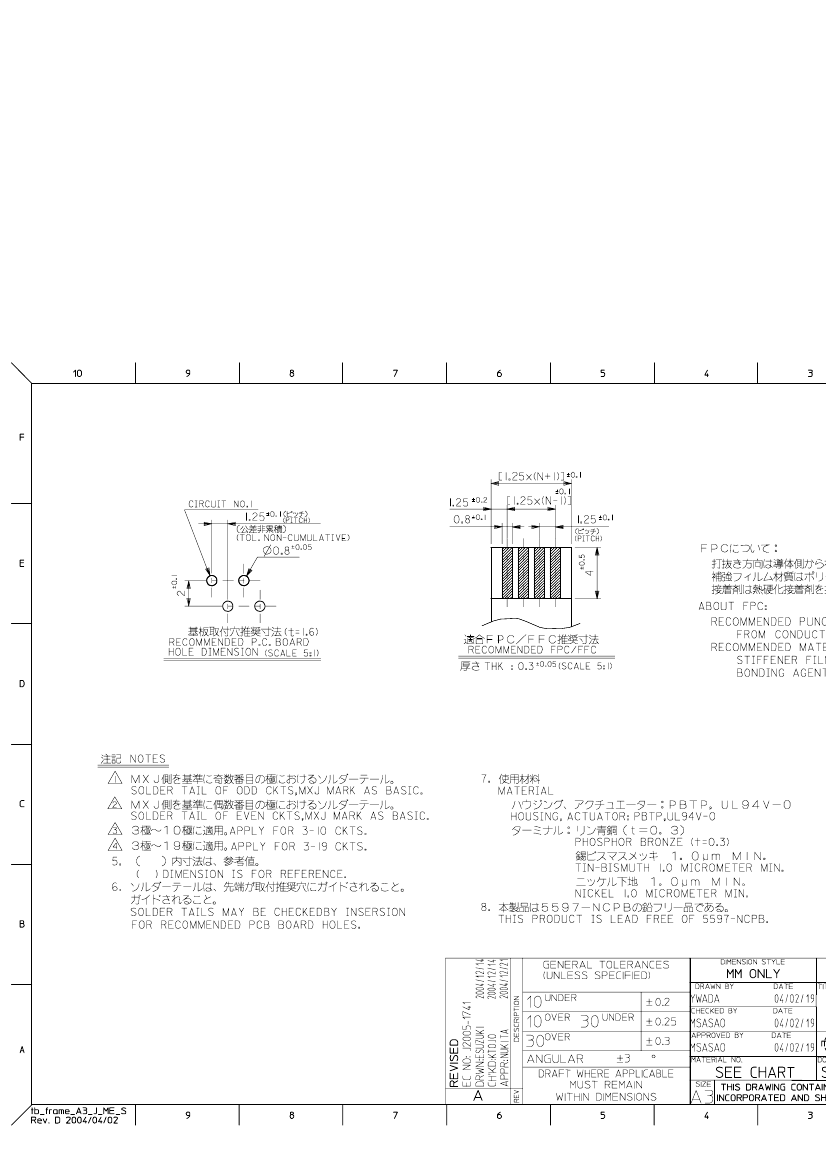

Reference - Drawing Numbers
Packaging Specification
SPK-5597-001
