SOURIAU
8810 Series
Applications
All underwater mateable equipments.

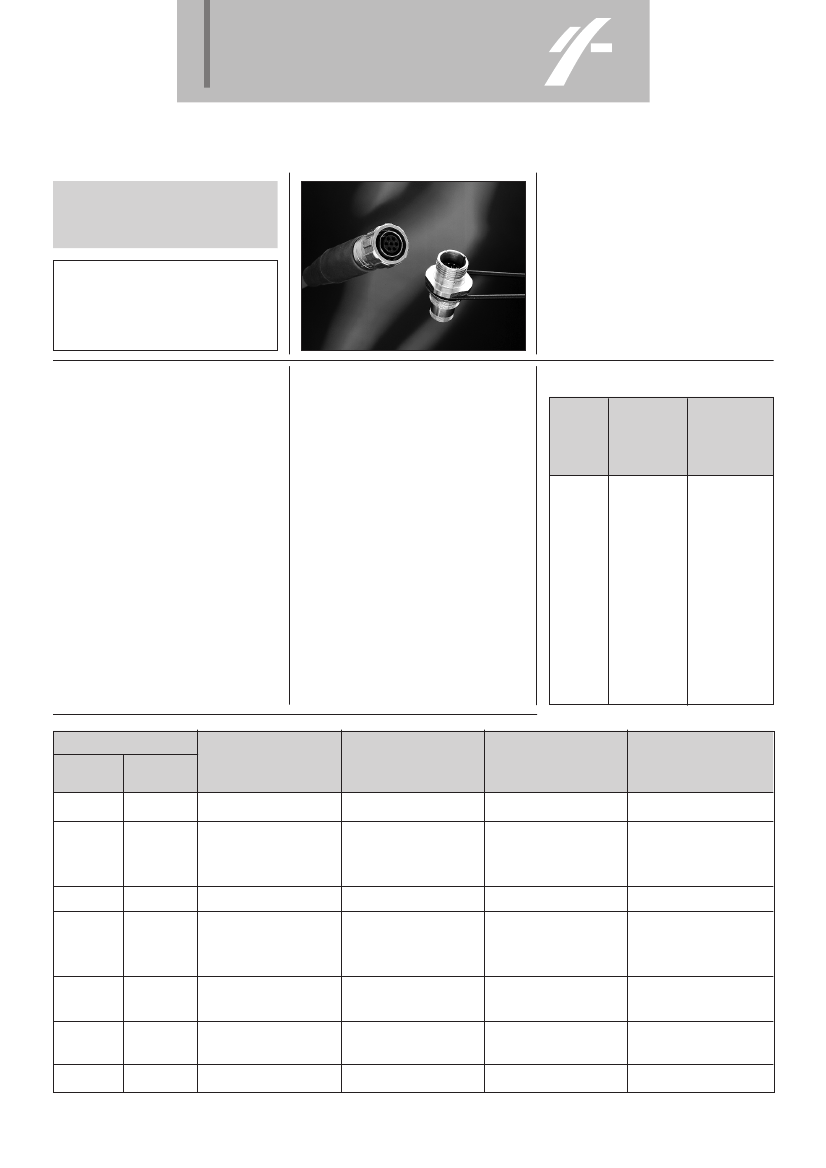

Description
• The 8810 range is designed to be wet or underwa-
ter mated and can be used at depths down to 3000
metres. The metal body shells feature rugged, square
cut coupling threads to enhance the 8810’s suitability
for repeated coupling and uncoupling in severe envi-
ronmental conditions. Connector front faces can
withstand either 150 ou 300 bars uncoupled wet pres-
sure. Underwater sealing caps are available for use on
connectors power on or for long term immersion
.
Standards
Characteristics
Mechanical
• Pressure resistance
working pressure (Mated or non mated
connectors)
Shell sizes 1, 2, 3, 4, 7
Fitted with cable gland endbell
300 bar
Fitted with longitudinally sealed 300 bar
endbell
Shell sizes 5, 6
Fitted with all endbell types
150 bar
• Endurance 500 mating/unmating
operations
• Metal shell
*
Nickel aluminium bronze
• Insulators
Moulded rubber
• Contacts
Gold plated copper alloy
• Band and buckles stainless steel 316L
• Stainless steel 316L, inconel, monel,
titanium, aluminium…
available on request
Operational
• Working temperature
Ambient : -30°C + 70°C
Subsea : -3°C + 40°C
• Shocks 75 g - 11 ms (3 axis)
Shell size 1, 2, 3, 4, 7
• Vibrations
0,1 Hz to 1 Hz (25 mm amplitude peak to peak 50)
1 Hz to 5 Hz (0,1 g acceleration)
5 Hz to 22 Hz (1 mm amplitude peak to peak 2)
22 Hz to 50 Hz (2 g acceleration)
• Underwater explosion shock tests (heavy
weight high impact)
Tested in accordance with,
Spécification MIL-S-901C (NAVY) and HI
Test procedure n° HT 0458-TP-1 Original issue
Grade : «A»
Equipment classification : Hull Mounted
external
Class : «I»
Test classification : Heavy Weight
Type : «A»
Tested for the US Navy (NCSC)
Electrical

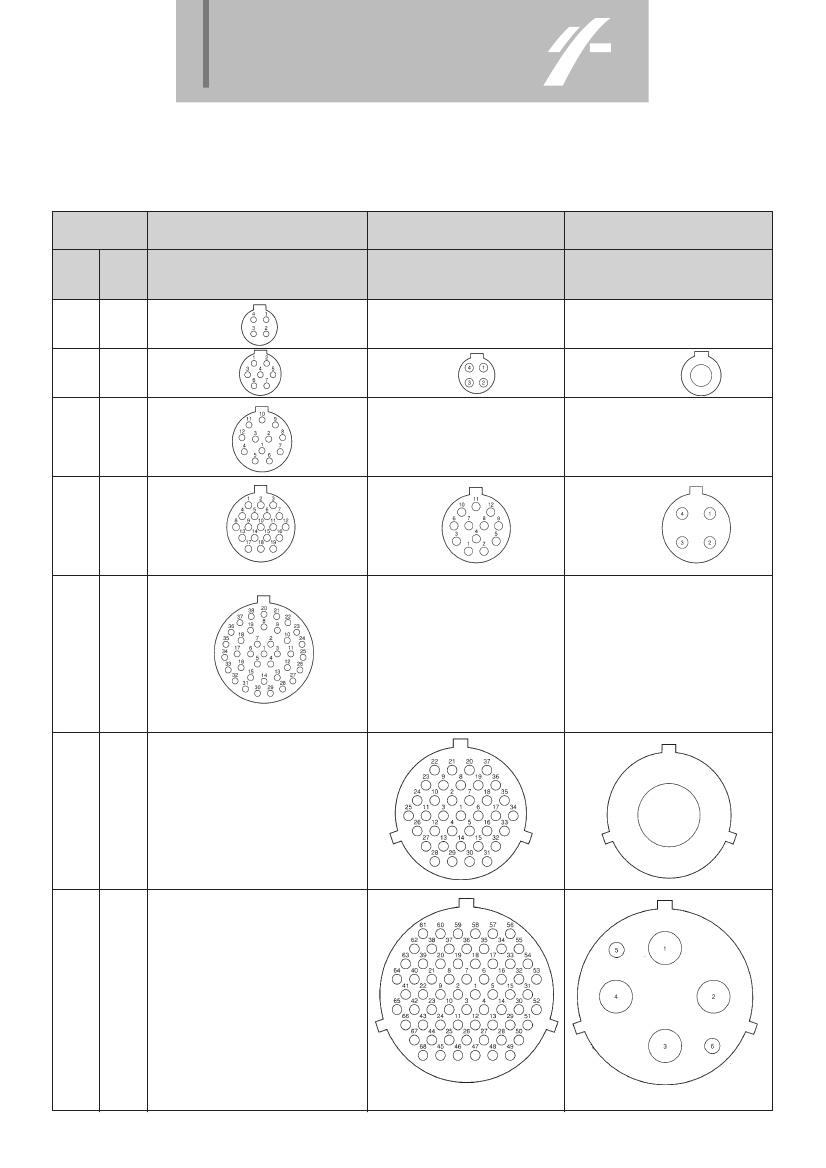

Layouts
Maximum
current rating
per contact
(A)
4 cts # 20
7 cts # 20
12 cts # 20
19 cts # 20
38 cts # 20
4 cts # 16
12 cts # 16
37 cts # 16
66 cts # 16
1 Ø 7 mm
4#8
1 Ø 18 mm
4 Ø 10+2#8
7.5
7.5
7.5
7.5
7.5
15
15
15
15
100
45
400
150 + 45
Maximum bundle
current capacity
per contact
(A)
7.5
6.5
5.5
4.5
3.5
14
12
6.5
5
100
35
400
150 + 45
Layouts
Shell
size
1
Number
of contacts
4
7
2
4
1
3
12
19
4
12
4
37
5
1
68
6
4
7
38
Ø 10 mm
# 20
3750
2500
Ø 18 mm
# 16
7500
2500
Contacts
sizes
Test voltage
(Vrms)
Working voltage in
external wet
conditions
ambiant (Vrms)
500
500
500
750
500
500
500
750
500
1500
500
750
500
Working voltage
after subsea mating
conditions
complied (Vrms)
220
220
220
750
220
220
220
360
220
1500
220
360
220
# 20
# 20
# 16
Ø 7 mm
# 20
# 20
# 16
#8
# 16
2500
2500
2500
3750
2500
2500
2500
3750
2500
* After 5 mating/demating operations in clear water and suitable lubricate insulator (with silicone grease)
339
souriau
8810 Series
ordering information
standard connectors
shell
size
1
2
2
2
3
4
4
4
7
5
5
6
6
Nbr. of
contacts
4
7
4
1
12
19
12
4
38
37
1
68
4+2
plug (36H)
8810-36H-1-04SA
8810-36H-2-07SA
8810-36H-2-04S
8810-36H-2-01SA
8810-36H-3-12SA
8810-36H-4-19SA
8810-36H-4-12SA
8810-36H-4-04SA
8810-36H-7-38SA
8810-36H-5-37SA
8810-36H-5-01SA
8810-36H-6-68SA
8810-36H-6-04SA
jam nut receptacle (10H)
8810-10H-1-04PA
8810-10H-2-07PA
8810-10H-2-04P
8810-10H-2-01PA
8810-10H-3-12PA
8810-10H-4-19PA
8810-10H-4-12PA
8810-10H-4-04PA
8810-10H-7-38PA
8810-10H-5-37PA
8810-10H-5-01PA
8810-10H-6-68SA
8810-10H-6-04PA
cable connecting receptacle (11H)
8810-11H-1-04PA
8810-11H-2-07PA
8810-11H-2-04P
8810-11H-2-01PA
8810-11H-3-12PA
8810-11H-4-19PA
8810-11H-4-12PA
8810-11H-4-04PA
8810-11H-7-38PA
8810-11H-5-37PA
8810-11H-5-01PA
8810-11H-6-68PA
8810-11H-6-04PA
Nota : Extra keyways x, y, z... are available on special request
custom design receptacles
shell
size
1
2
2
2
3
4
4
4
7
5
5
6
6
Nbr. of
contacts
4
7
4
1
12
19
12
4
38
37
1
68
4+2
inverse pressure receptacle (12H)
8810-12H-1-04PA
8810-12H-2-07PA
8810-12H-2-04P
8810-12H-2-01PA
8810-12H-3-12PA
8810-12H-4-19PA
8810-12H-4-12P
8810-12H-4-04PA
8810-12H-7-38P
8810-12H-5-37P
8810-12H-5-01P
8810-12H-6-68P
8810-12H-6-04P
thru bulkhead receptacle (14H)
8810-14H-1-04PA
8810-14H-2-07PA
8810-14H-2-04PA
8810-14H-2-01PA
8810-14H-3-12PA
8810-14H-4-19PA
8810-14H-4-12PA
8810-14H-4-04PA
8810-14H-7-38P
8810-14H-5-37PA
8810-14H-5-01PA
8810-14H-6-68PA
8810-14H-6-04PA
square flange receptacle (15H)
8810-15H-1-04P
8810-15H-2-07P
8810-15H-2-04P
8810-15H-2-01P
8810-15H-3-12P
8810-15H-4-19P
8810-15H-4-12P
8810-15H-4-04P
8810-15H-7-38PA
8810-15H-5-37P
8810-15H-5-01P
8810-15H-6-68P
8810-15H-6-04P
