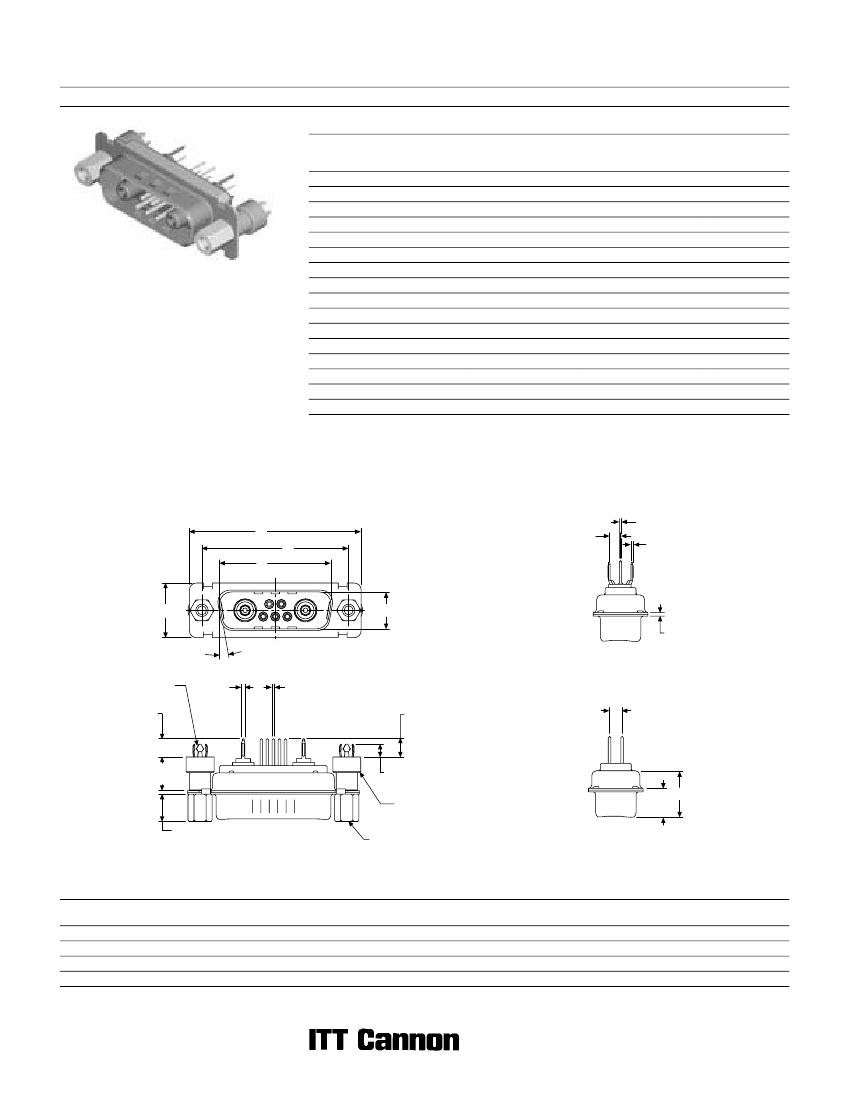

D Subminiature
Coaxial Straight — European PC Tails (Sizes DE-DC)
Plug
75 Ohm Part Numbers* with Standoff #4-40 UNC
Shell Size
DE
DA
DA
DA
DA
DB
DB
DB
DB
DB
DC
DC
DC
DC
DC
DC
Layout
5W1
7W2
11W1
3W3
3WK3
5W5
9W4
13W3
17W2
21W1
8W8
13W6
17W5
21WA4
25W3
27W2
Part Number
Without Screw Locks
Without Boardlocks
DEMV5C1PYK87
DAMV7C2PYK87
DAMV11C1PYK87
DAMV3C3PYK87
DAMV3CK3PYK87TM
DBMV5C5PYK87
DBMV9C4PYK87
DBMV13C3PYK87
DBMV17C2PYK87
DBMV21C1PYK87
DCMV8C8PYK87
DCMV13C6PYK87
DCMV17C5PYK87
DCMV21CA4PYK87
DCMV25C3PYK87
DCMV27C2PYK87
Part Number
Without Screw Locks
With Boardlocks
DEMZ5C1PYK87
DAMZ7C2PYK87
DAMZ11C1PYK87
DAMZ3C3PYK87
DAMZ3CK3PYK87TM
DBMZ5C5PYK87
DBMZ9C4PYK87
DBMZ13C3PYK87
DBMZ17C2PYK87
DBMZ21C1PYK87
DCMZ8C8PYK87
DCMZ13C6PYK87
DCMZ17C5PYK87
DCMZ21CA4PYK87
DCMZ25C3PYK87
DCMZ27C2PYK87
Combo D
Reader’s Resource
For contact cavity arrangements,
see page 222.
For P.C. hole patterns, see pages 238-239.
For panel cutouts, see page 221.
For alternate 50 Ohm coaxial configuration,
see page 225.
Part Number
With Screw Locks
With Boardlocks
DEMN5C1PYK87
DAMN7C2PYK87
DAMN11C1PYK87
DAMN3C3PYK87
DAMN3CK3PYK87TM
DBMN5C5PYK87
DBMN9C4PYK87
DBMN13C3PYK87
DBMN17C2PYK87
DBMN21C1PYK87
DCMN8C8PYK87
DCMN13C6PYK87
DCMN17C5PYK87
DCMN21CA4PYK87
DCMN25C3PYK87
DCMN27C2PYK87
For M3 threads replace MV with MT, MZ with MQ, MN with MU.
Notes: * For 50 Ohm Coaxial substitute X for C. Example: DEMV5X1PYK87
For tin plated PC tails add A226 (signal contacts only). Example: DEMV5C1PYK87A226
For performance class 2 substitute K127 for K87. Example: DEMV5C1PYK127
For DD shell sizes, see page 58.
Keyed.
Engaging Face
A
C
B
2,54
(.100)
Ø 0,51
(.020)
0,62
(.024)
E
D
L
10°
Hardware and signal contacts
removed for clarity
0,82
(.032)
Ø 0,60
(.024)
4,52 (.178)
2,84
(.112)
BOARDLOCK
3,45
(.136)
7,62
±
0,25
(.300
±
.010)
2,91
(.115)
STANDOFF
#4-40 UNC
F
W
6,50
±
0,25
(.256
±
.010)
SCREW LOCK
#4-40 UNC
Hardware and coaxial contact
removed for clarity
Dimensions
Shell Size
DE
DA
DB
DC
A
±0,38
(.015)
30,81 (1.213)
39,14 (1.541)
53,04 (2.088)
69,32 (2.729)
B
±0,13
(.005)
16,92 (.666)
25,25 (.994)
38,96 (1.534)
55,42 (2.182)
C
±0,13
(.005)
24,99 (.984)
33,32 (1.312)
47,04 (1.852)
63,50 (2.500)
D
±0,13
(.005)
8,36 (.329)
8,36 (.329)
8,36 (.329)
8,36 (.329)
E
±0,38
(.015)
12,55 (.494)
12,55 (.494)
12,55 (.494)
12,55 (.494)
F
±0,25
(.010)
10,72 (.422)
10,72 (.422)
10,82 (.426)
10,82 (.426)
W
±0,368
(.0145)
6,693 (.2635)
6,693 (.2635)
—
—
W
±0,41
(.016)
—
—
6,84 (.269)
6,84 (.269)
L
±0,25
(.010)
0,76 (.030)
0,76 (.030)
0,99 (.039)
0,99 (.039)
56
Dimensions are shown in mm (inch)
Dimensions subject to change
