26-61-1040 datasheet, PDF - EEWORLD Datasheet

26-61-1040: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Latch, Receptacle; CategoryThe connector The connector; File Size72KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

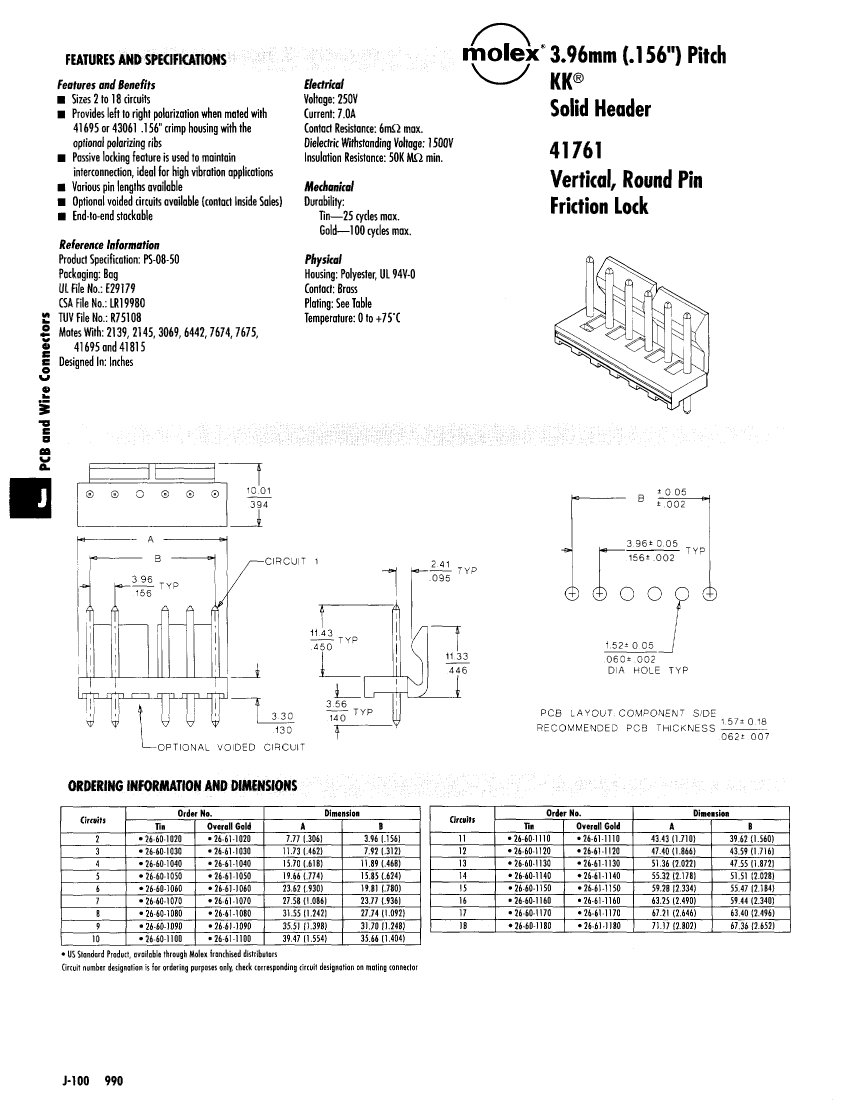

Download Datasheet Parametric View All

26-61-1040 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	26-61-1040	-	-	View	Buy Now

Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Latch, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	KK
body width	0.394 inch
subject depth	0.446 inch
body length	0.618 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	6 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	50000000000 Ω
insulator material	POLYESTER
MIL compliance	NO
Manufacturer's serial number	41761
Plug contact pitch	0.156 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LATCH
Installation option 2	PLASTIC
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	20u inch
polarization key	HOUSING SIDE
Rated current (signal)	7 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.14 inch
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Evacuation force-minimum value	.834 N
Base Number Matches	1
