DCM-37SR datasheet, PDF - EEWORLD Datasheet

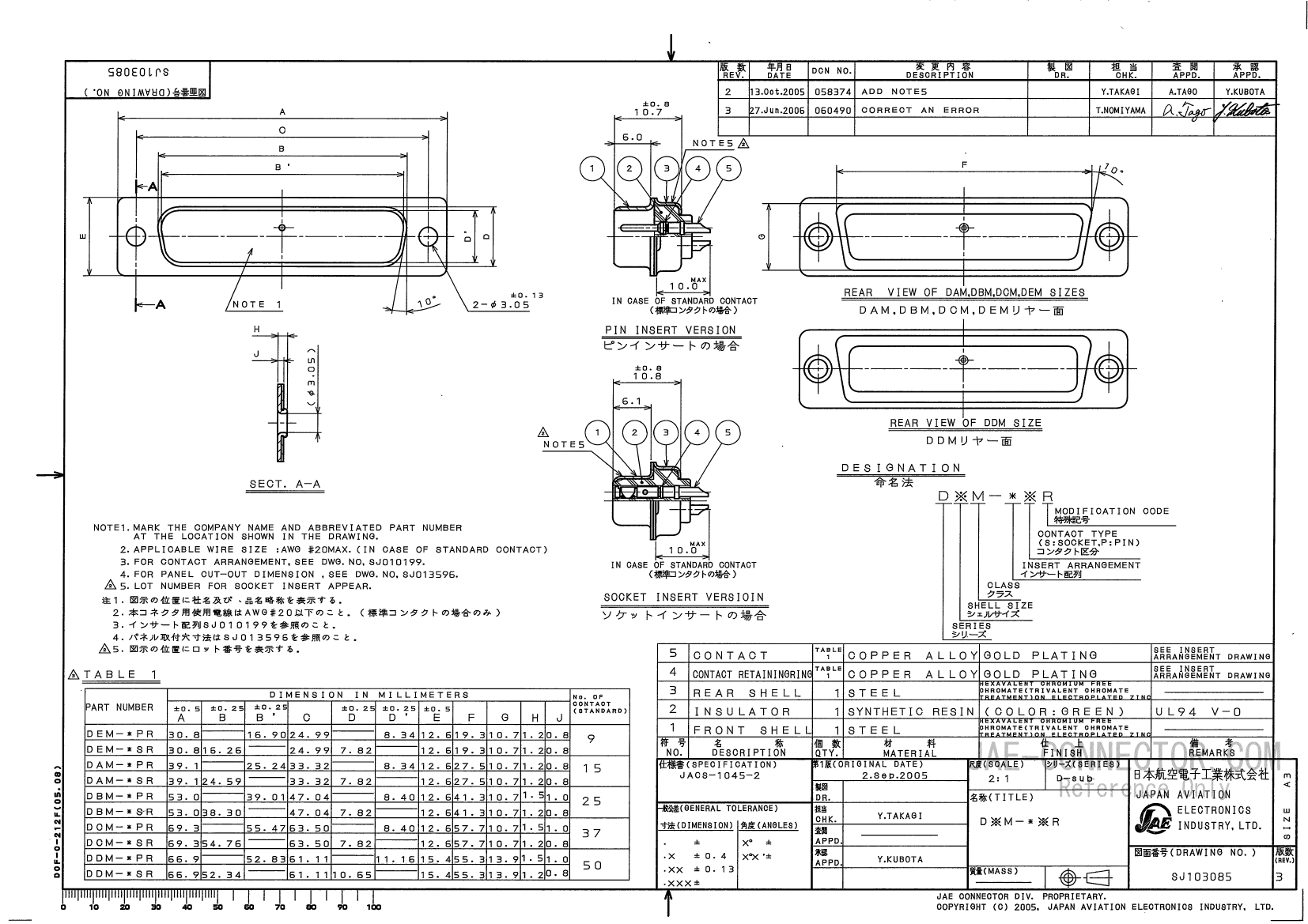

DCM-37SR: DescriptionD Subminiature Connector, 37 Contact(s), Female, Solder Lug Terminal, Hole .112-.124,; CategoryThe connector The connector; File Size154KB，1 Pages; ManufacturerJapan Aviation Electronics Industry Limited; Environmental Compliance

Download Datasheet Parametric View All

DCM-37SR Overview

D Subminiature Connector, 37 Contact(s), Female, Solder Lug Terminal, Hole .112-.124,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown
body width	0.496 inch
body length	2.728 inch
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
contact mode	STAGGERED
Contact resistance	2.7 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1800VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	GREEN
insulator material	DIALLYL PHTHALATE
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation option 1	HOLE .112-.124
Installation option 2	LOCKING
Installation type	PANEL
Maximum operating temperature	120 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	ZINC
Shell material	STEEL
Housing size	4/C
Termination type	SOLDER LUG
Total number of contacts	37
UL Flammability Code	94V-0
Maximum wire diameter	20 AWG
Minimum wire diameter	20 AWG
