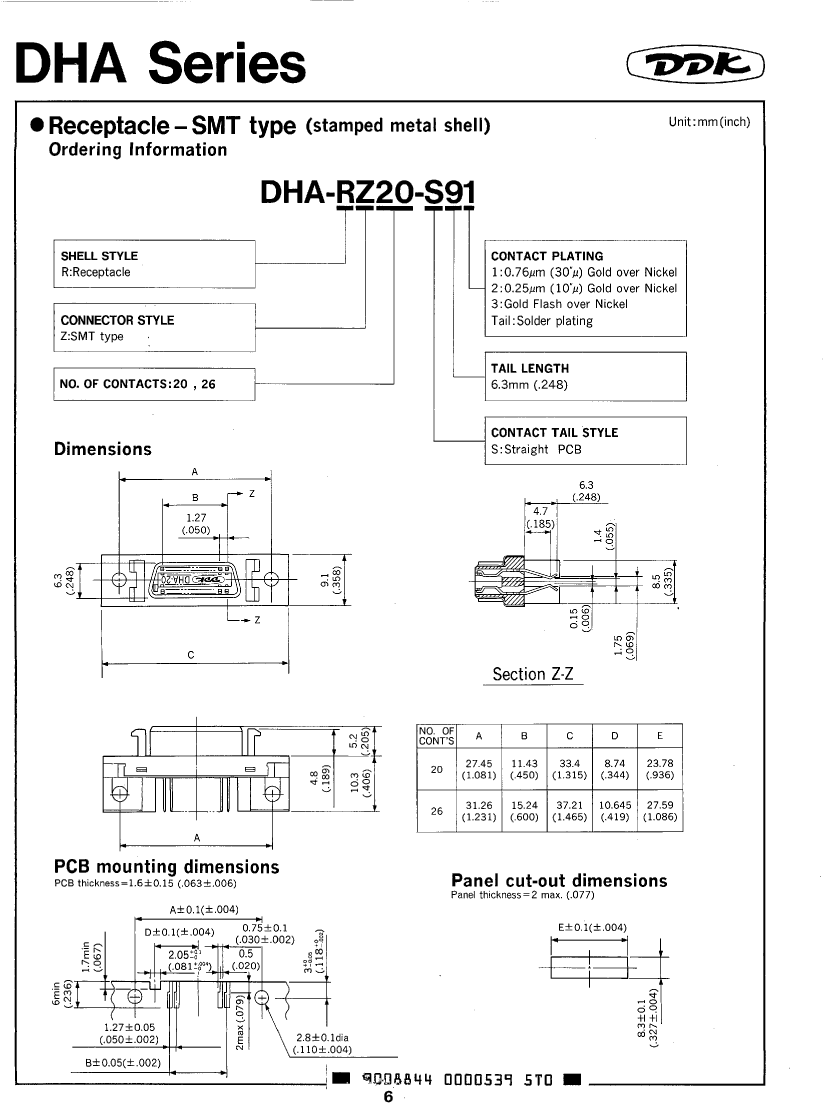

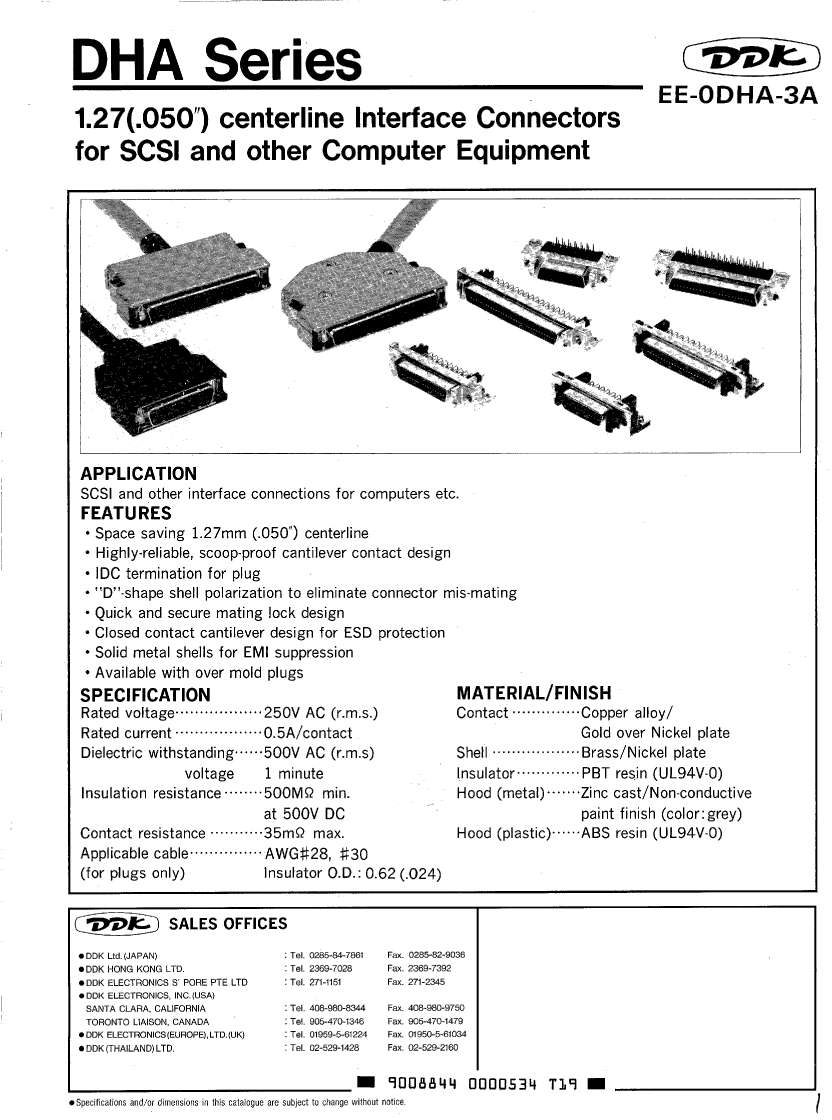

DHA-RZ26-S93: DescriptionD Type Connector, 26 Contact(s), Female, 0.05 inch Pitch, Surface Mount Terminal, Locking Mech, Plug; CategoryThe connector The connector; File Size191KB，2 Pages; ManufacturerDDK; Websitehttp://www.ddknet.co.jp/English/index.html

Download Datasheet Parametric Compare View All

DHA-RZ26-S93 Overview

D Type Connector, 26 Contact(s), Female, 0.05 inch Pitch, Surface Mount Terminal, Locking Mech, Plug

DHA-RZ26-S93 Parametric

Parameter Name	Attribute value
Maker	DDK
Reach Compliance Code	unknown
body width	0.358 inch
subject depth	0.406 inch
body length	1.465 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
Insulation resistance	500000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DHA
Plug contact pitch	0.05 inch
Installation option 1	LOCKING MECH
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	26
