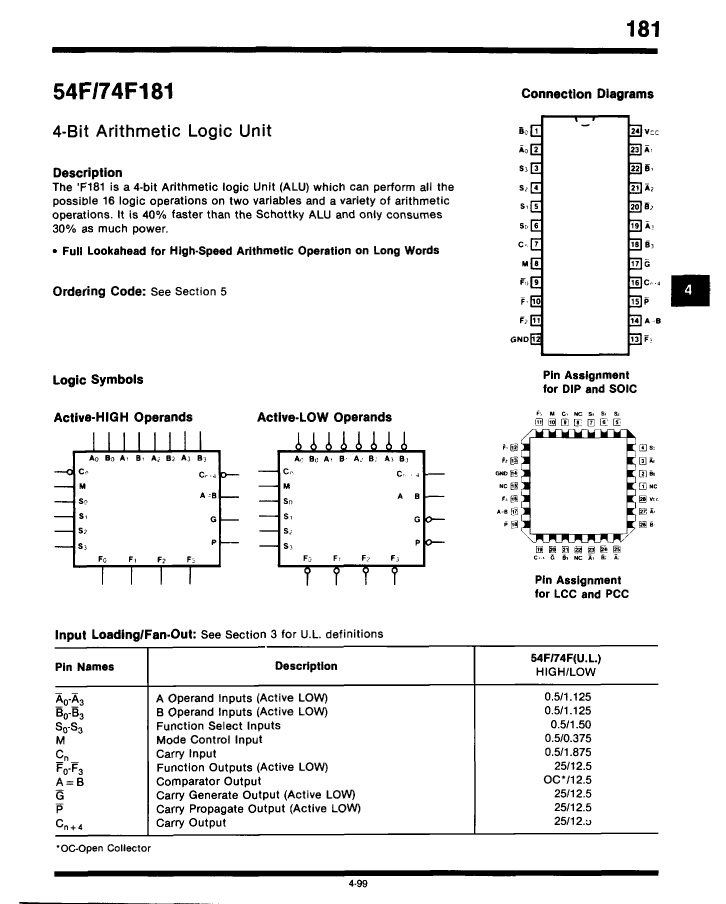

74F181L1CQR datasheet, PDF - EEWORLD Datasheet

74F181L1CQR: DescriptionArithmetic Logic Unit, F/FAST Series, 4-Bit, TTL, CQCC28, CERAMIC, LCC-28; Categorylogic logic; File Size133KB，5 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

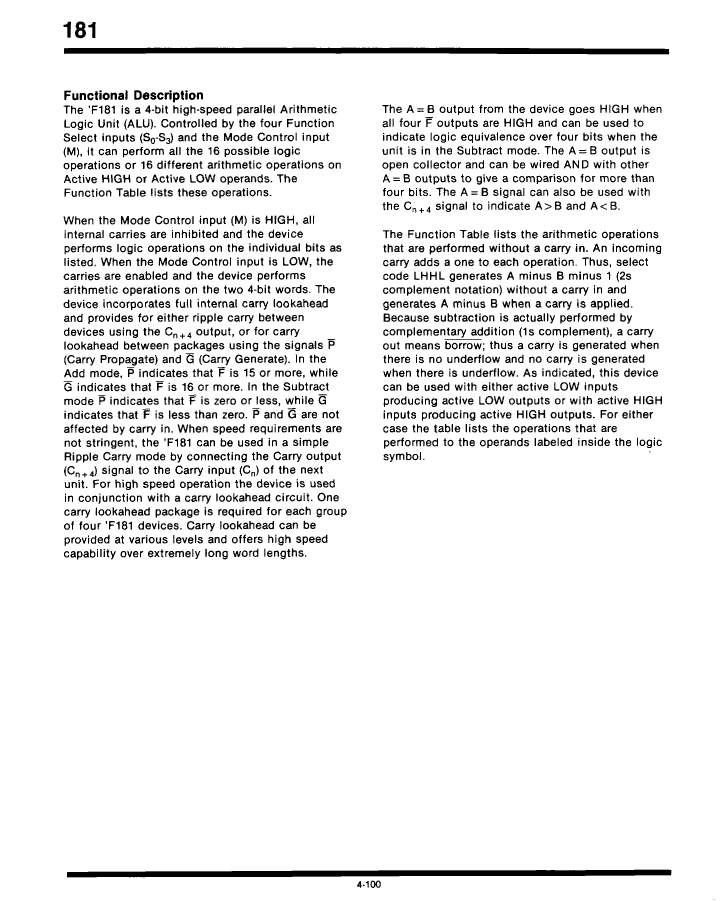

74F181L1CQR Overview

Arithmetic Logic Unit, F/FAST Series, 4-Bit, TTL, CQCC28, CERAMIC, LCC-28

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	28
Reach Compliance Code	unknown

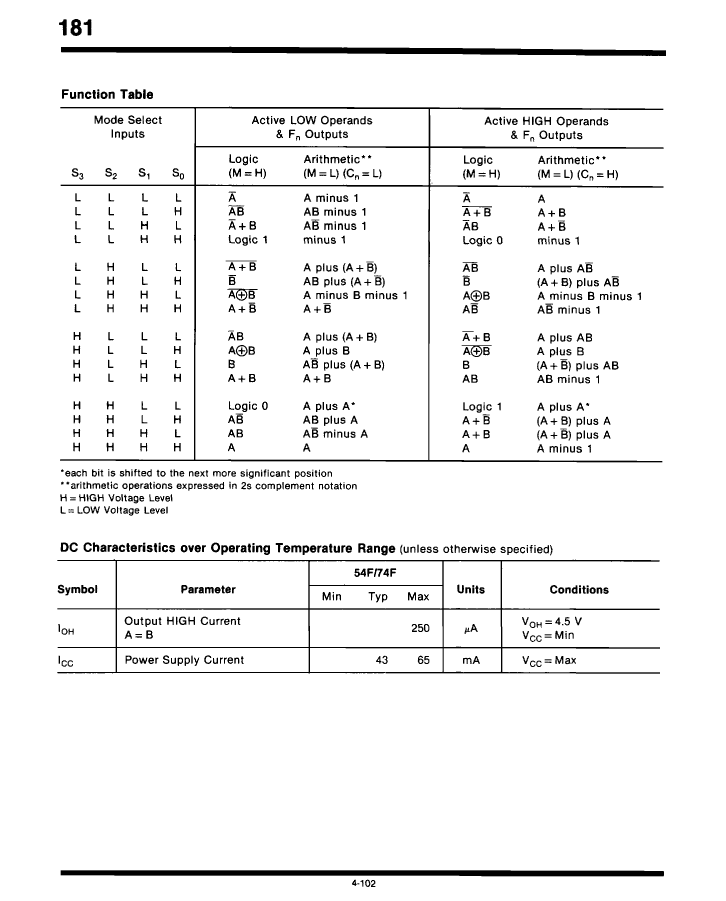

Other features	CAPABLE OF 16 LOGIC AND ARITHMETIC OPERATIONS
series	F/FAST
JESD-30 code	S-CQCC-N28
length	11.43 mm

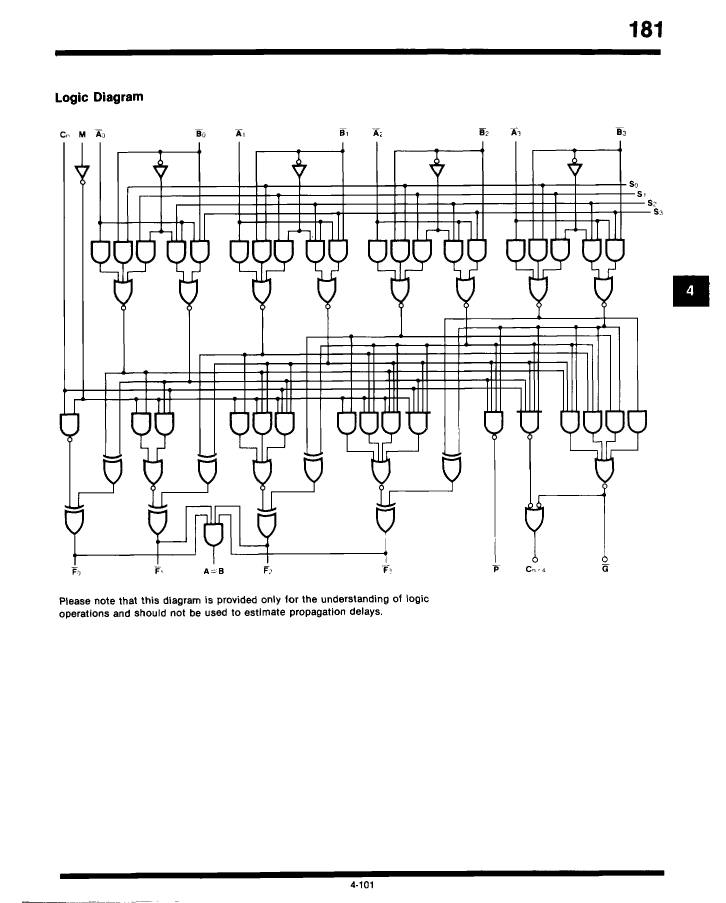

Logic integrated circuit type	ARITHMETIC LOGIC UNIT
Number of digits	4
Number of functions	1
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER

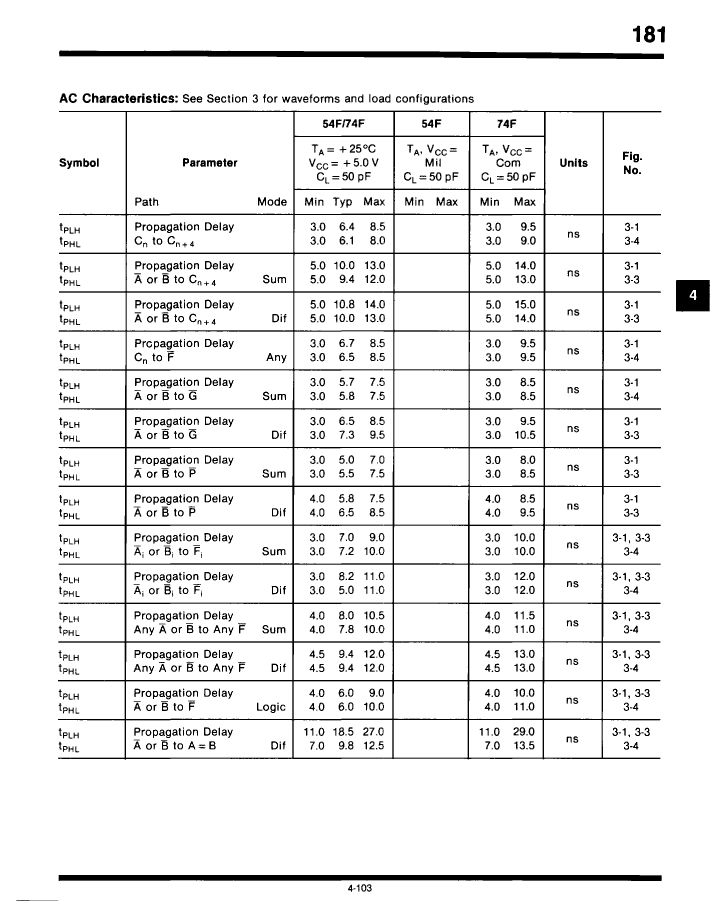

propagation delay (tpd)	14 ns
Certification status	Not Qualified
Maximum seat height	2.54 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.43 mm
