74323-2051: DescriptionMicroCross垄芒 DVI Digital Single Link, High Volume Plug Connector Sub- assemblyESD Type, Gold (Au) Flash, Vertical, with key, 18 Circuits, Lead Free; File Size209KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

74323-2051 Overview

MicroCross垄芒 DVI Digital Single Link, High Volume Plug Connector Sub- assemblyESD Type, Gold (Au) Flash, Vertical, with key, 18 Circuits, Lead Free

Preview

Download Datasheet

View All

This document was generated on 04/02/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Description:

0743232051

Active

MicroCross™ DVI Digital Single Link, High Volume Plug Connector Sub- assembly,

ESD Type, Gold (Au) Flash, Vertical, with key, 18 Circuits, Lead Free

Documents:

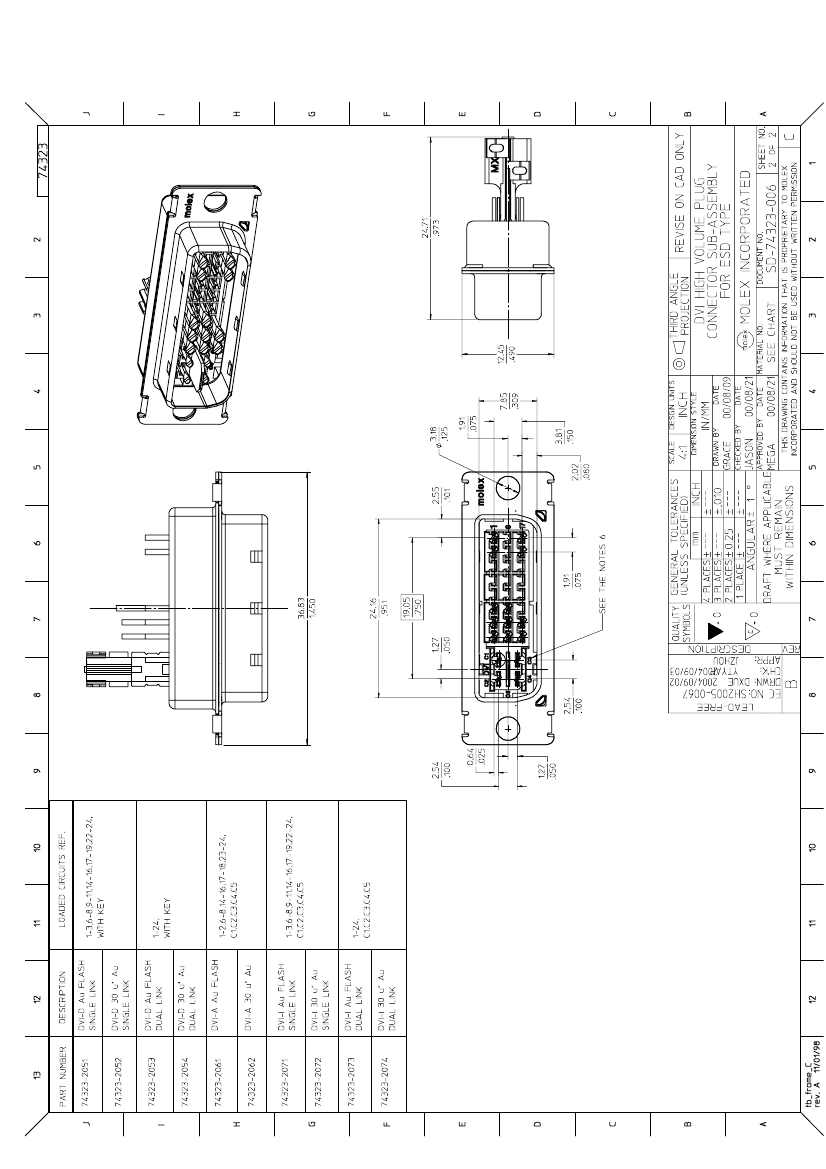

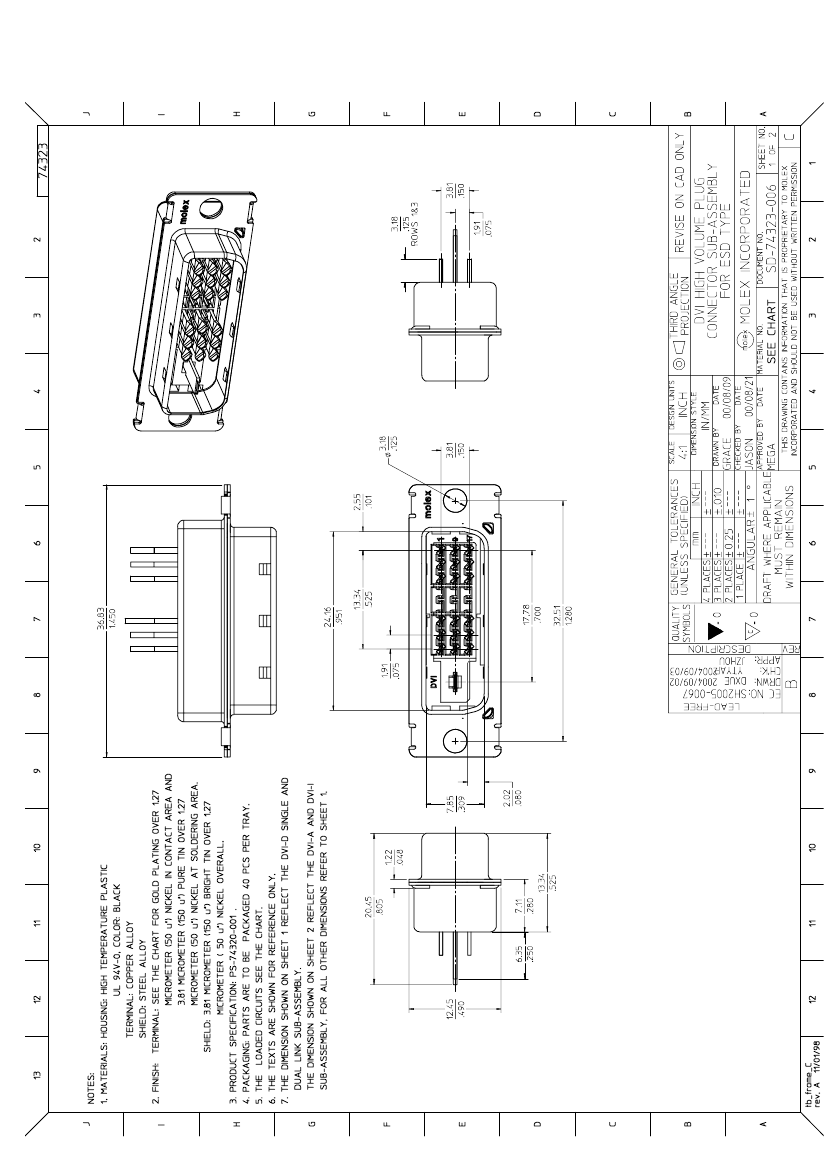

Drawing (PDF)

Product Specification PS-74320-001 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

EU RoHS

ELV and

Complia

REACH S

Not Revi

Halogen

Status

Not Revi

Need mo

environm

General

Product Family

Series

Application

Comments

Component Type

Product Name

Type

I/O Connectors

74323

Wire-to-Board

DDWG (Digital Display Working Group) Standard

I/O Plug Connector Subassembly

MicroCross™DVI

N/A

Email pro

For a mu

Complian

Please vi

non-prod

74323S

Physical

Boot Color

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Color - Resin

Durability (mating cycles max)

Flammability

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Retention

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Ports

Temperature Range - Operating

Termination Interface: Style

Waterproof / Dustproof

N/A

Circuits 1-3,6-8,9-11,14-16,17-19,22-24 are loaded; with

key

Black

100

94V-0

Yes

Copper Alloy

Gold

Tin

High Temperature Thermoplastic

Vertical

None

Tray

N/A

0.075 In, 0.100 In

1.90 mm, 2.54 mm

0.075 In, 0.100 In

1.90 mm, 2.54 mm

0.25

150

3.80

Yes

-20°C to +85°C

Solder or Weld

Mates

Other r

Recept

Applic

Tooling

found b

Crimp H

contain

Specifi

Global

Descri

MicroC

Solderi
