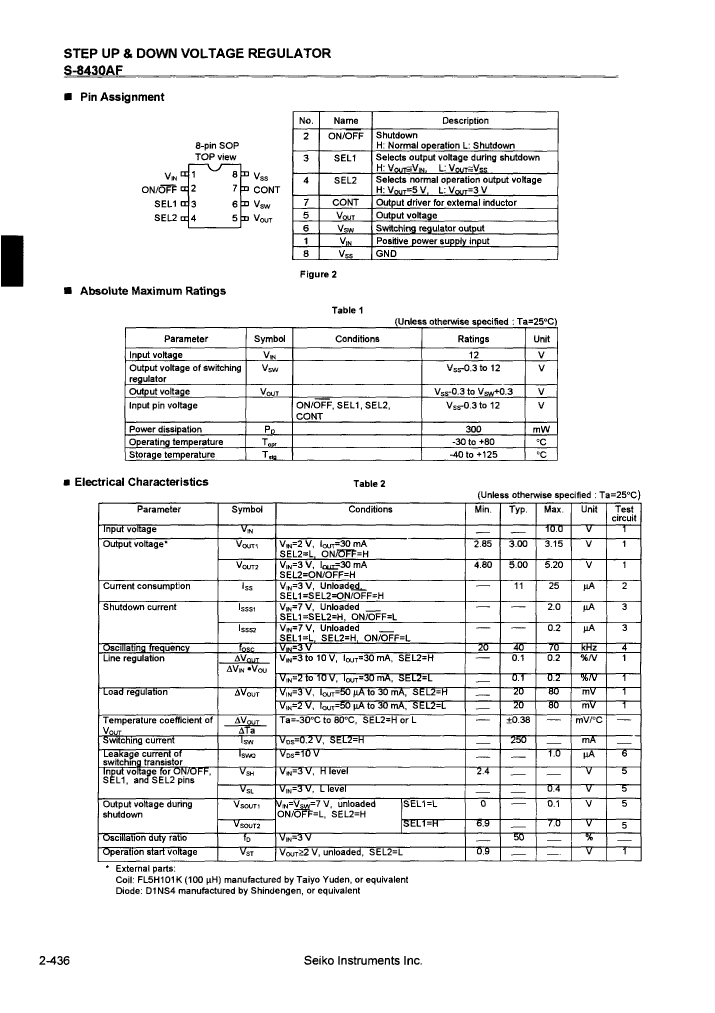

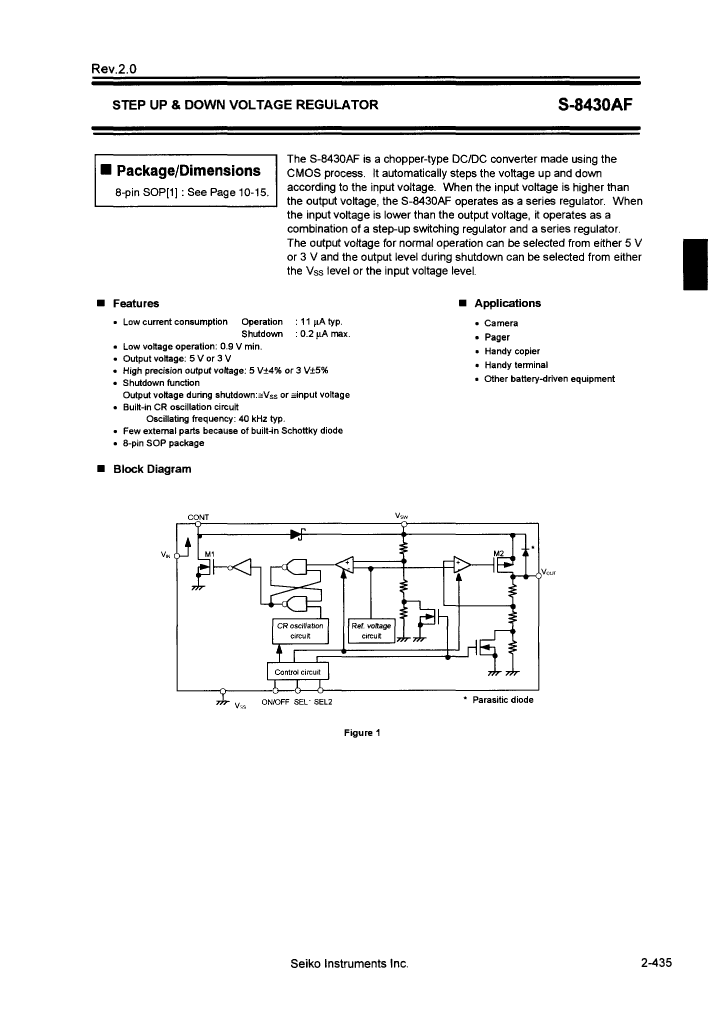

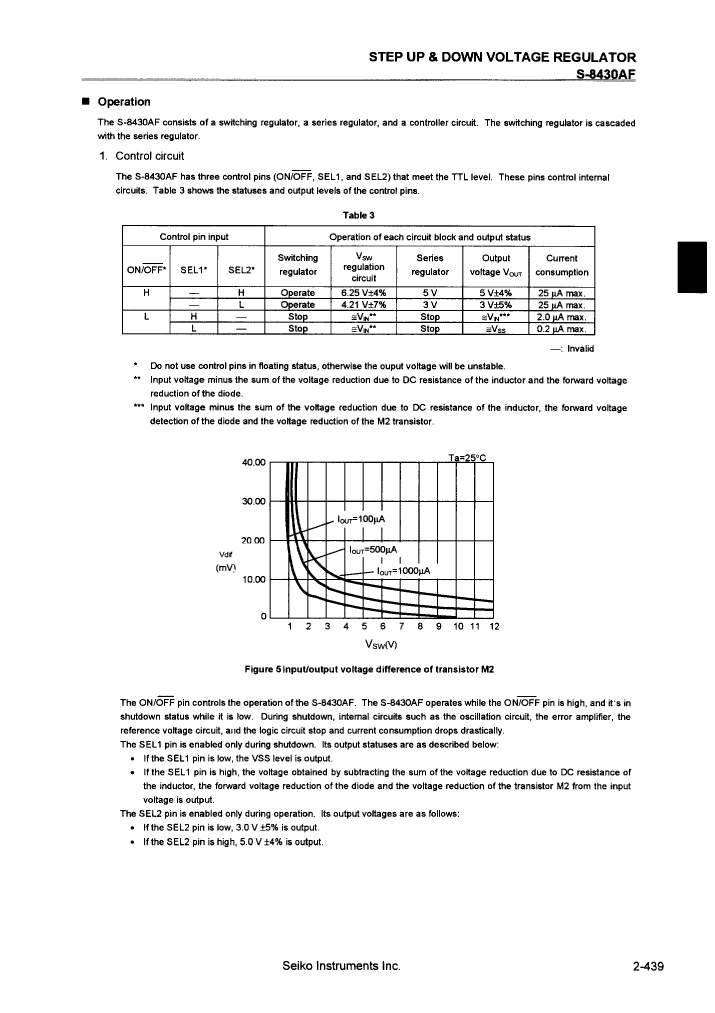

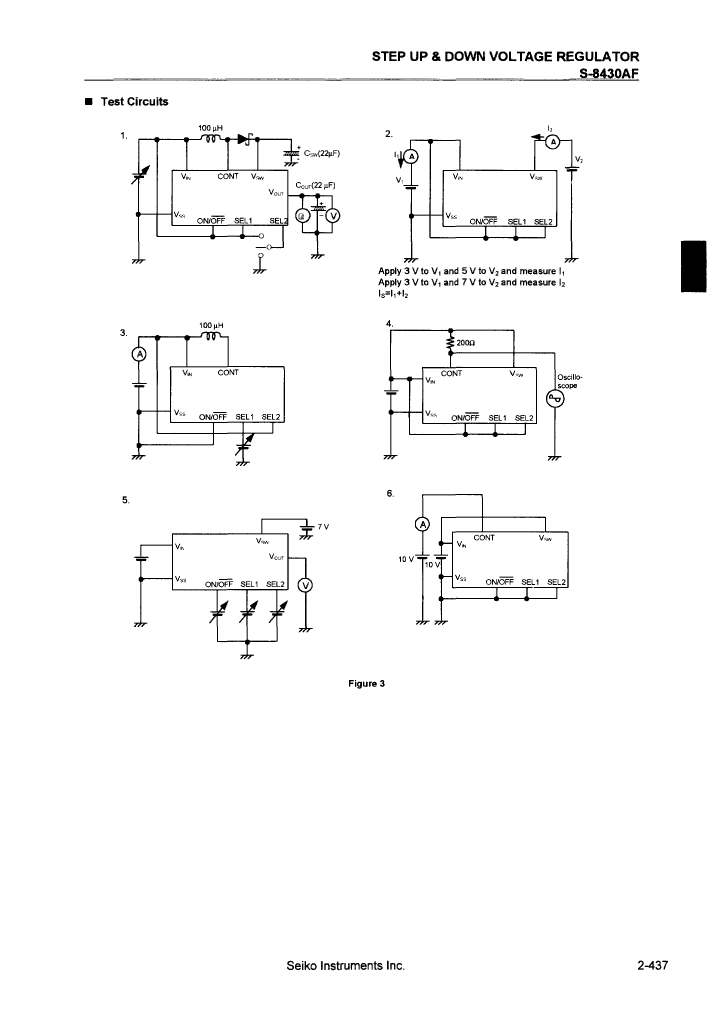

S-8430AF-T2 datasheet, PDF - EEWORLD Datasheet

S-8430AF-T2: DescriptionSwitching Regulator, Voltage-mode, 70kHz Switching Freq-Max, CMOS, PDSO8, SOP-8; CategoryPower/power management The power supply circuit; File Size681KB，21 Pages; ManufacturerABLIC

Download Datasheet Parametric Compare View All

S-8430AF-T2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	S-8430AF-T2	-	-	View	Buy Now

Switching Regulator, Voltage-mode, 70kHz Switching Freq-Max, CMOS, PDSO8, SOP-8

Parameter Name	Attribute value
Maker	ABLIC
Parts packaging code	SOIC
package instruction	LSOP,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	VOLTAGE-MODE
Control Technology	PULSE FREQUENCY MODULATION
Maximum input voltage	10 V
Minimum input voltage	2 V
Nominal input voltage	3 V
JESD-30 code	R-PDSO-G8
length	5.2 mm
Number of functions	1
Number of terminals	8
Maximum operating temperature	80 °C
Minimum operating temperature	-30 °C
Nominal output voltage	5 V
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Certification status	Not Qualified
Maximum seat height	1.7 mm
Maximum supply current (Isup)	0.025 mA
surface mount	YES
Switch configuration	BOOST
Maximum switching frequency	70 kHz
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	4.4 mm

	S-8430AF-T2	S-8430AF-T1
Description	Switching Regulator, Voltage-mode, 70kHz Switching Freq-Max, CMOS, PDSO8, SOP-8	Switching Regulator, Voltage-mode, 70kHz Switching Freq-Max, CMOS, PDSO8, SOP-8
Maker	ABLIC	ABLIC
Parts packaging code	SOIC	SOIC
package instruction	LSOP,	LSOP,
Contacts	8	8
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR	SWITCHING REGULATOR
control mode	VOLTAGE-MODE	VOLTAGE-MODE
Control Technology	PULSE FREQUENCY MODULATION	PULSE FREQUENCY MODULATION
Maximum input voltage	10 V	10 V
Minimum input voltage	2 V	2 V
Nominal input voltage	3 V	3 V
JESD-30 code	R-PDSO-G8	R-PDSO-G8
length	5.2 mm	5.2 mm
Number of functions	1	1
Number of terminals	8	8
Maximum operating temperature	80 °C	80 °C
Minimum operating temperature	-30 °C	-30 °C
Nominal output voltage	5 V	5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSOP	LSOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.7 mm	1.7 mm
Maximum supply current (Isup)	0.025 mA	0.025 mA
surface mount	YES	YES
Switch configuration	BOOST	BOOST
Maximum switching frequency	70 kHz	70 kHz
technology	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
width	4.4 mm	4.4 mm
