ECS-FREQ5-S-5PVX datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> ECS-FREQ5-S-5PVX

Preview

ECS-FREQ5-S-5PVX: DescriptionSeries - Fundamental Quartz Crystal, 9MHz Min, 12.999MHz Max, ROHS COMPLIANT, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size155KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-FREQ5-S-5PVX Overview

Series - Fundamental Quartz Crystal, 9MHz Min, 12.999MHz Max, ROHS COMPLIANT, SMD, 2 PIN

ECS-FREQ5-S-5PVX Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ECS
package instruction	ROHS COMPLIANT, SMD, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Ageing	5 PPM/YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	500 µW
frequency stability	0.005%
frequency tolerance	30 ppm
JESD-609 code	e3
Installation features	SURFACE MOUNT
Maximum operating frequency	12.999 MHz
Minimum operating frequency	9 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
physical size	L11.4XB4.7XH2.6 (mm)/L0.449XB0.185XH0.102 (inch)
Series resistance	60 Ω
surface mount	YES
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

2.6 mm Height

Industry Std. Footprint

Pb Free/RoHS Compliant

CSM-7SSX

Low Profile SMD Crystal

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency Range

Frequency Tolerance

Frequency Stability

Shunt Capacitance

Load Capacitance

Drive Level

Operating Temperature

Storage Temperature

Aging (Per Year)

CONDITIONS

CSM-7SSX

MIN

3.57

TYP

MAX

50.000

± 30

± 50

5

Series

500

+70

+105

±5

UNITS

MHz

ppm

pF

µW

°C

ppm

at +25°C

-10 to +70°C

Specify in P/N

10

-10

-40

@ +25°C ±3°C

20

EQUIVALENT SERIES RESISTANCE/MODE OF OSCILLATION

FREQUENCY RANGE

(MHz)

MODE OF OSC MAX ESR

Ω

FREQUENCY RANGE

(MHz)

MODE OF OSC MAX ESR

Ω

3.57 ~ 4.999

Fundamental

150

13.000 ~ 19.999

Fundamental

50

5.000 ~ 5.999

Fundamental

120

20.000 ~ 30.000

Fundamental

40

6.000 ~ 6.999

Fundamental

100

30.100

~ 39.999

3rd Overtone

100

7.000 ~ 8.999

Fundamental

80

40.000 ~ 50.000

3rd Overtone

80

9.000 ~ 12.999

Fundamental

60

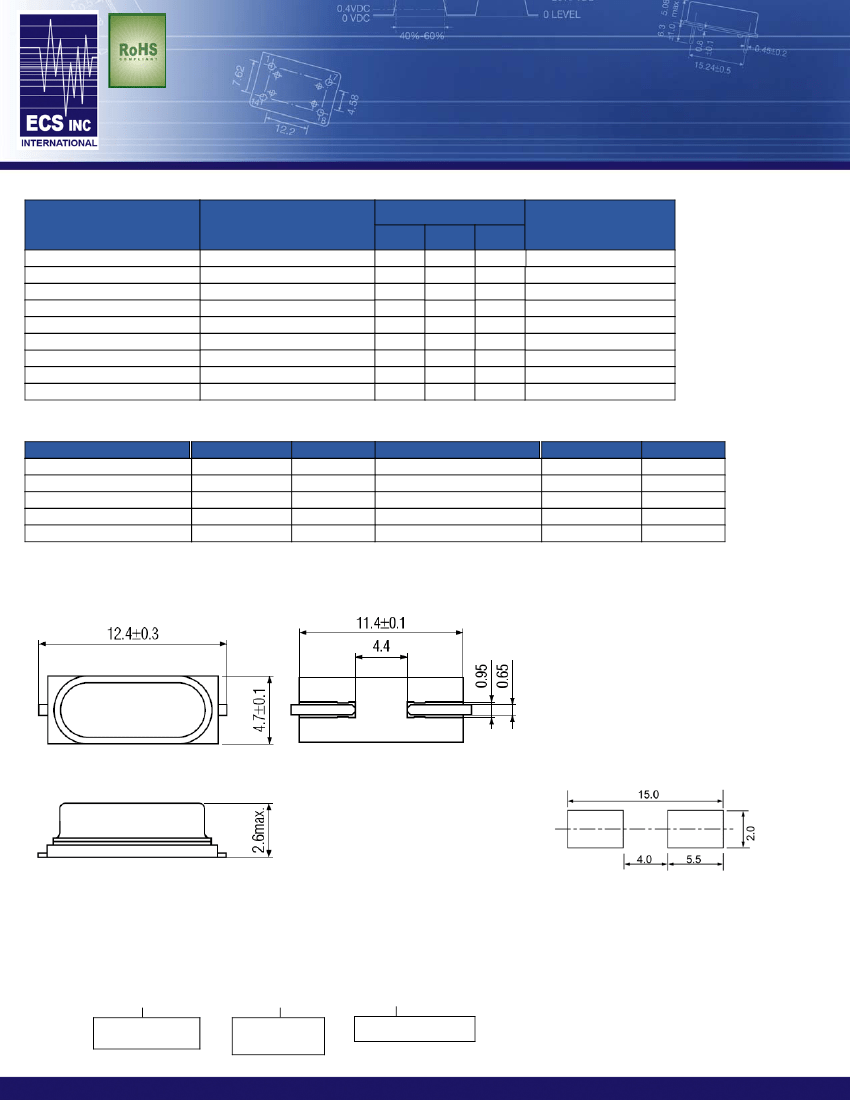

DIMENSIONS (mm)

Figure 1) Top, Side and Bottom views

Figure 2) Suggested Land Pattern

PART NUMBERING GUIDE: Example ECS-200-20-5PVX

ECS - Frequency Abbreviation - Load Capacitance

200 = 20.000 MHz

See P/N Guide

20 =20 pF

S=Series

- Package

5PVX = CSM-7SSX

1105 South Ridgeview Road

Olathe, KS 66062

Phone: 913.782.7787

Fax: 913.782.6991

www.ecsxtal.com
