85013-0361 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 85013-0361

85013-0361: Description32 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER; CategoryThe connector The connector; File Size117KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

85013-0361 Overview

32 CONTACT(S), MALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER

85013-0361 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknow
Other features	STANDARD: DIN 41612
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD (24) OVER NICKEL
Contact completed and terminated	GOLD (24) OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	85013
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/17/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0850130361

Active

din_41612

2.54mm (.100") Pitch DIN 41612 Header, Style R Reverse,0.6µm (24µ") Selective Gold

(Au), 32 Circuits

Documents:

3D Model

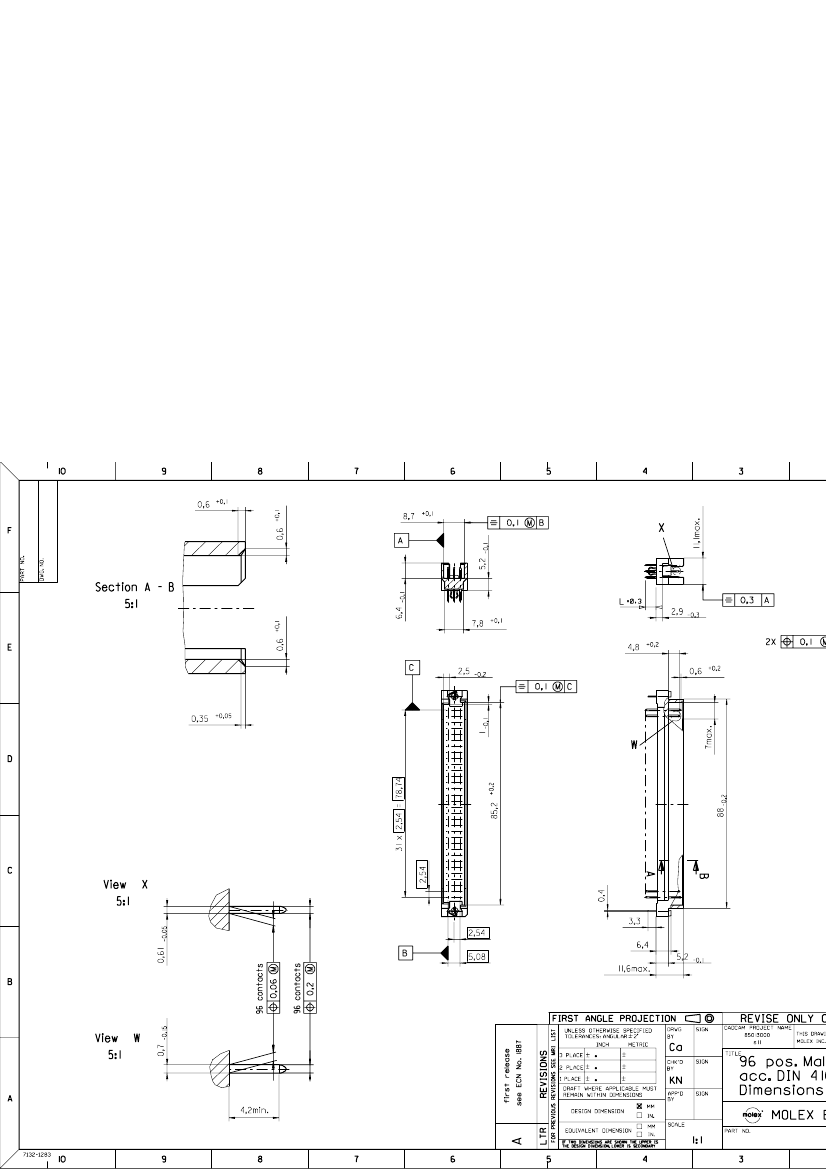

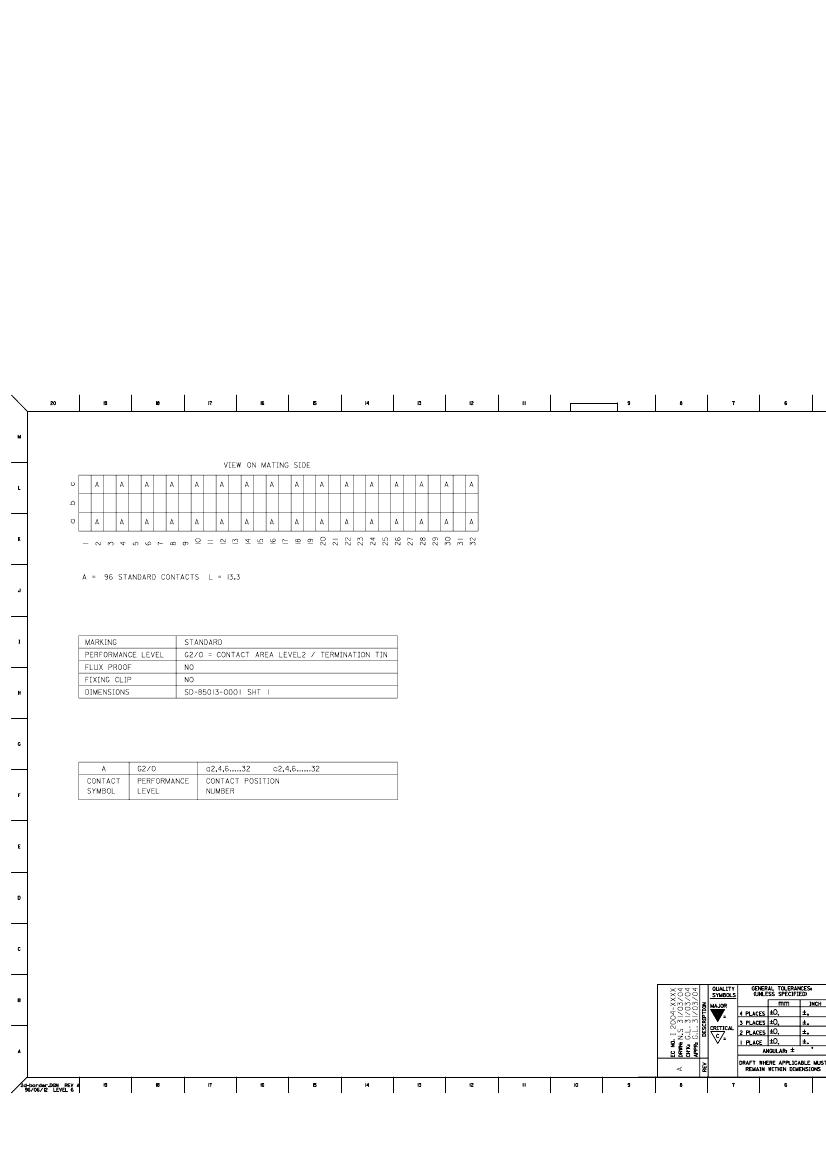

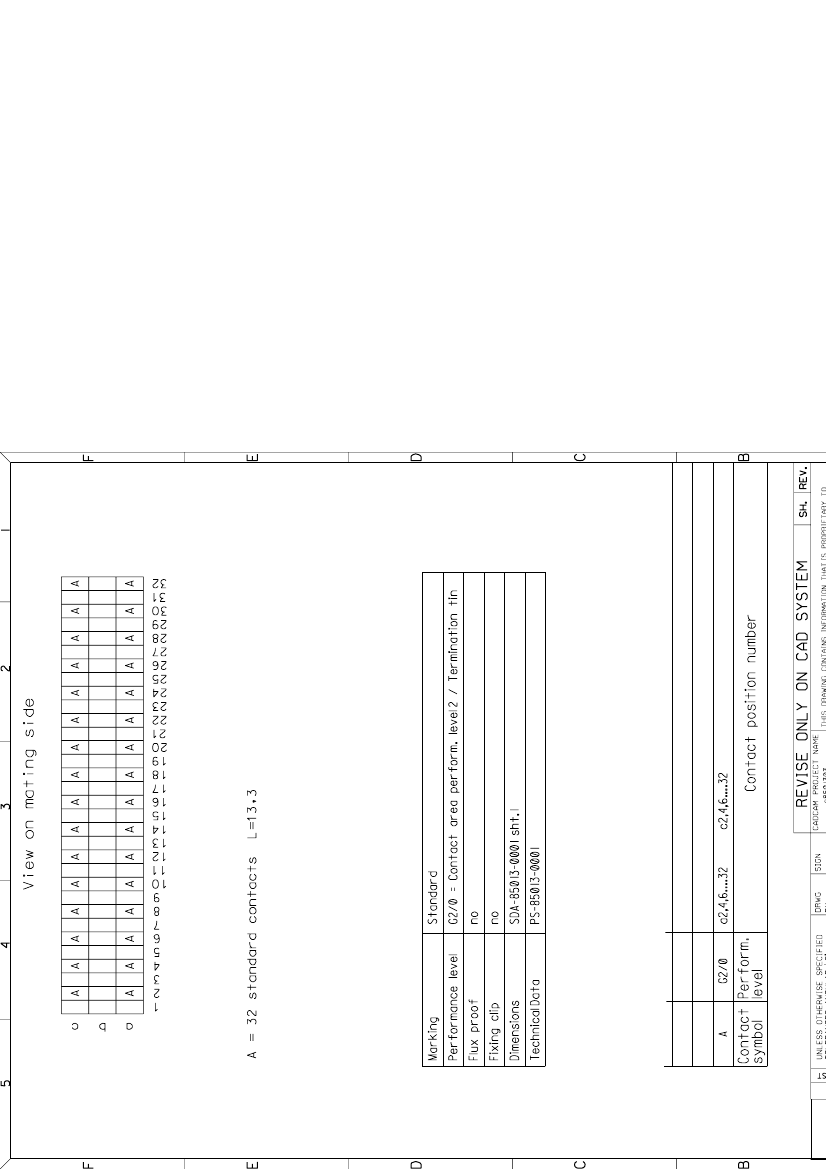

Drawing (PDF)

Product Specification PS-85013-0001 (PDF)

RoHS Certificate of Compliance (PDF)

EU RoHS

Complia

Not Revi

REACH S

Not Revi

Halogen

Status

Not Revi

Need mo

environm

Agency Certification

CSA

LR19980

E29179

Email pro

For a mu

Complian

General

Product Family

Series

Application

Component Type

Overview

Product Name

Style

Backplane Connectors

85013

Backplane

PCB Header

din_41612

IEC 603-2/DIN 41612

Please vi

non-prod

85013S

Physical

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Durability (mating cycles max)

Flammability

Guide to Mating Part

Keying to Mating Part

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Surface Mount Compatible (SMC)

Temperature Range - Operating

Rows A & C

400

94V-0

Yes

Open Pin Field

Vertical

0.524 In

13.30 mm

Yes

0.062 In

1.60 mm

Tray

0.100 In

2.54 mm

0.100 In

2.54 mm

-55°C to +125°C

Mates

85042

Header

Electrical

Current - Maximum per Contact

Data Rate

Voltage - Maximum

2.5A

622.0 Mbps

1000V (RMS)

Material Info

Reference - Drawing Numbers
