SDR951DCT/3 datasheet, PDF - EEWORLD Datasheet

SDR951DCT/3: DescriptionRectifier Diode, 1 Phase, 2 Element, 120A, 150V V(RRM), Silicon, TO-3,; CategoryDiscrete semiconductor diode; File Size206KB，2 Pages; ManufacturerSSDI; Websitehttp://www.ssdi-power.com/

Download Datasheet Parametric Compare View All

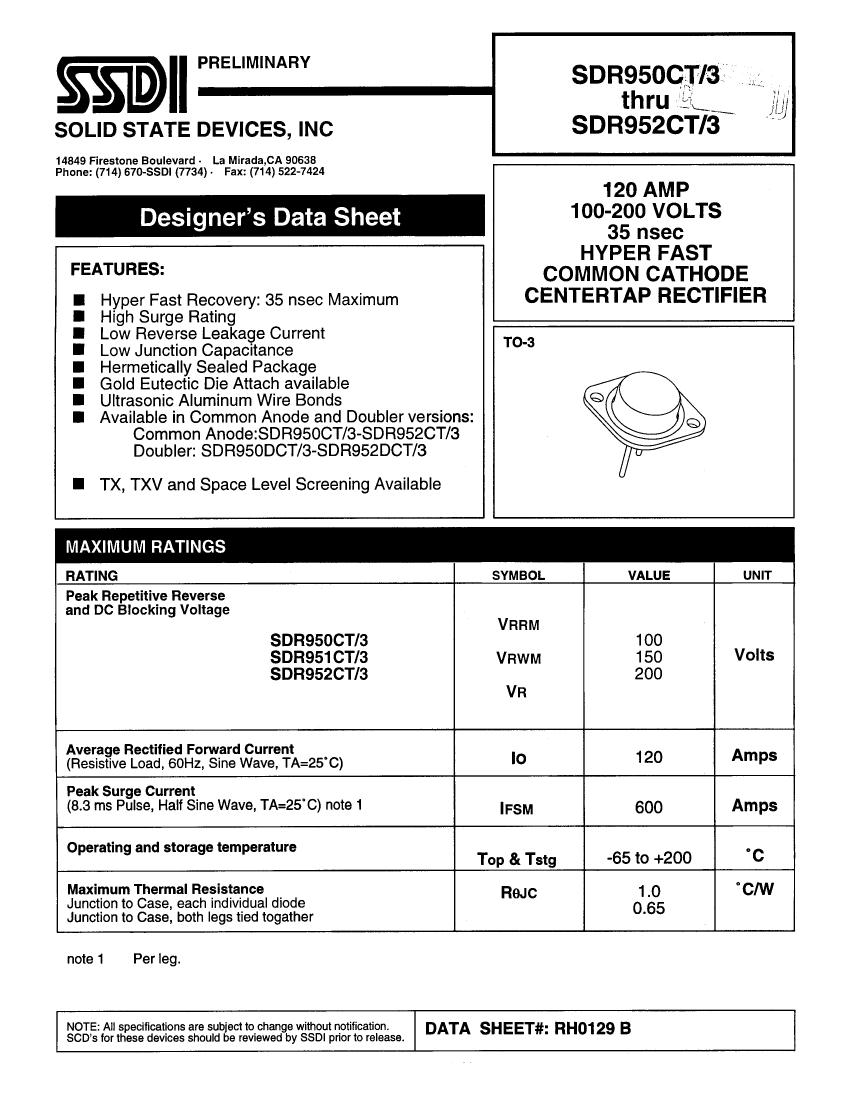

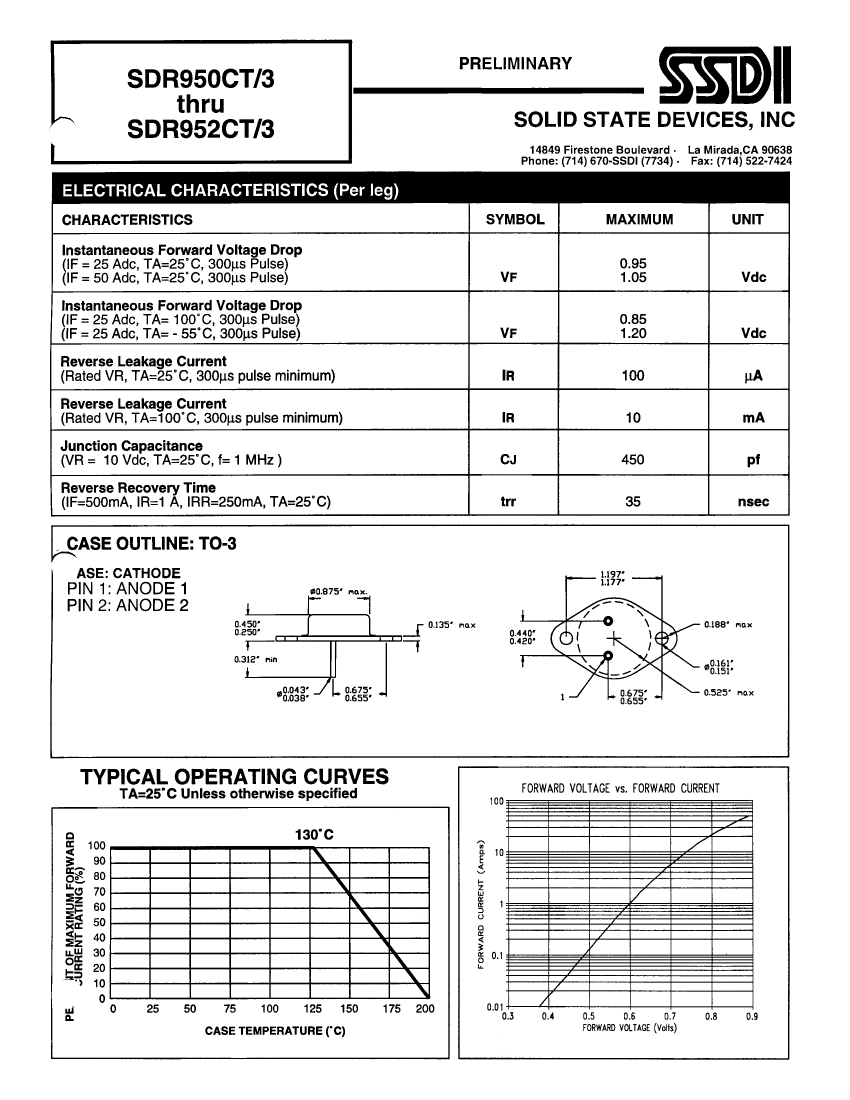

SDR951DCT/3 Overview

Rectifier Diode, 1 Phase, 2 Element, 120A, 150V V(RRM), Silicon, TO-3,

Parameter Name	Attribute value
Maker	SSDI
Reach Compliance Code	compliant
ECCN code	EAR99
application	HYPER FAST RECOVERY
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	TO-3
JESD-30 code	O-MBFM-P2
Maximum non-repetitive peak forward current	600 A
Number of components	2
Phase	1
Number of terminals	2
Maximum output current	120 A
Package body material	METAL
Package shape	ROUND
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	150 V
Maximum reverse recovery time	0.035 µs
surface mount	NO
Terminal form	PIN/PEG
Terminal location	BOTTOM

	SDR951DCT/3	SDR952DCT/3
Description	Rectifier Diode, 1 Phase, 2 Element, 120A, 150V V(RRM), Silicon, TO-3,	Rectifier Diode, 1 Phase, 2 Element, 120A, 200V V(RRM), Silicon, TO-3,
Maker	SSDI	SSDI
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
application	HYPER FAST RECOVERY	HYPER FAST RECOVERY
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	TO-3	TO-3
JESD-30 code	O-MBFM-P2	O-MBFM-P2
Maximum non-repetitive peak forward current	600 A	600 A
Number of components	2	2
Phase	1	1
Number of terminals	2	2
Maximum output current	120 A	120 A
Package body material	METAL	METAL
Package shape	ROUND	ROUND
Package form	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	150 V	200 V
Maximum reverse recovery time	0.035 µs	0.035 µs
surface mount	NO	NO
Terminal form	PIN/PEG	PIN/PEG
Terminal location	BOTTOM	BOTTOM
