DC-DC Regulated Power Supply Module, 1 Output, 6W

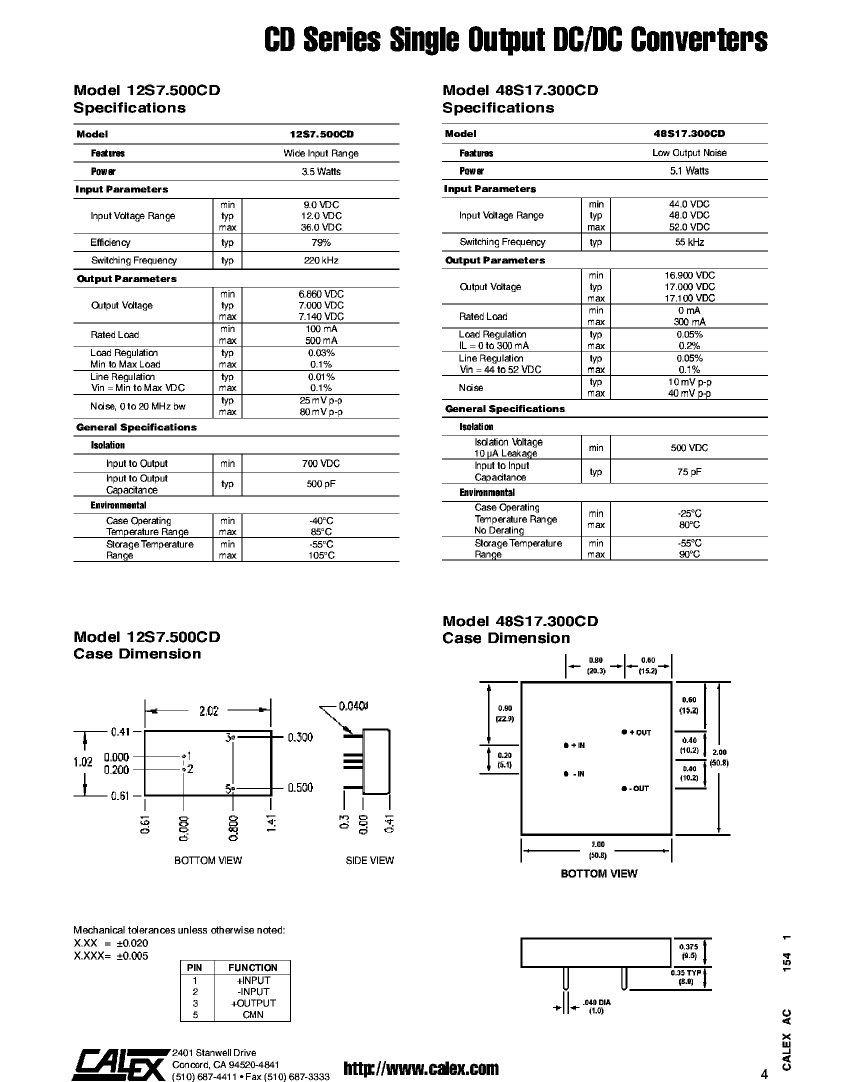

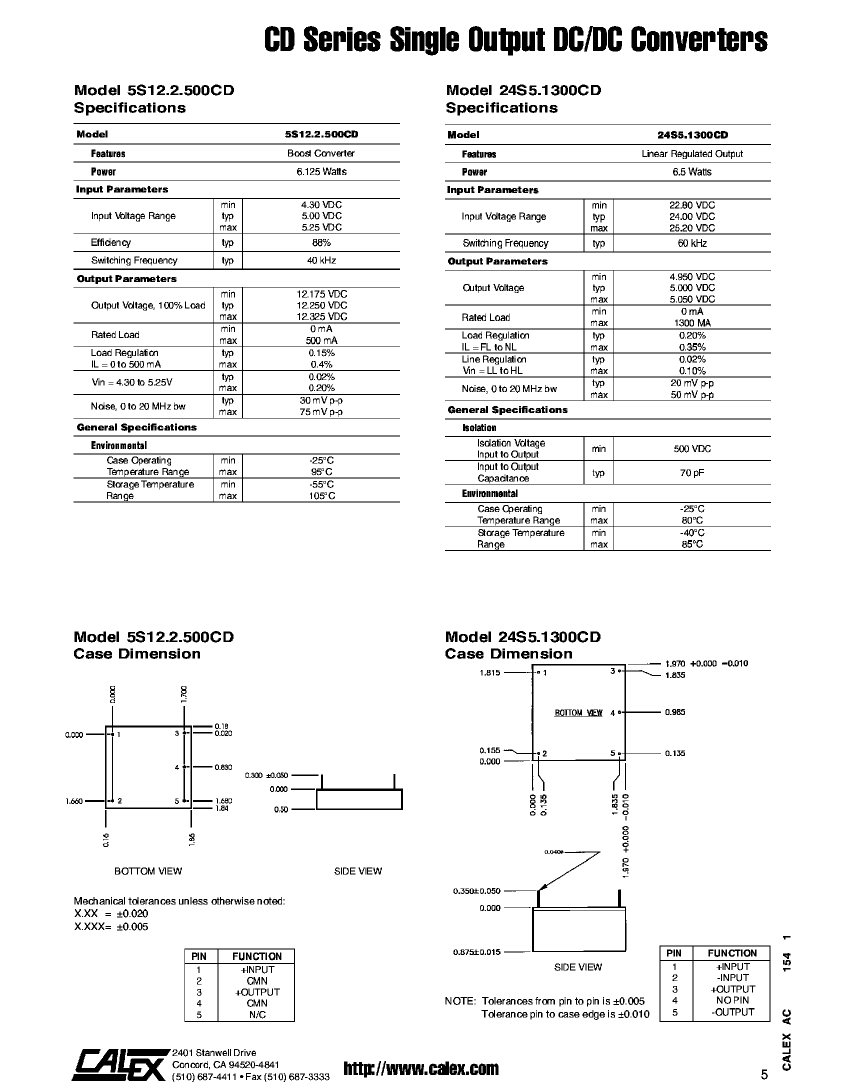

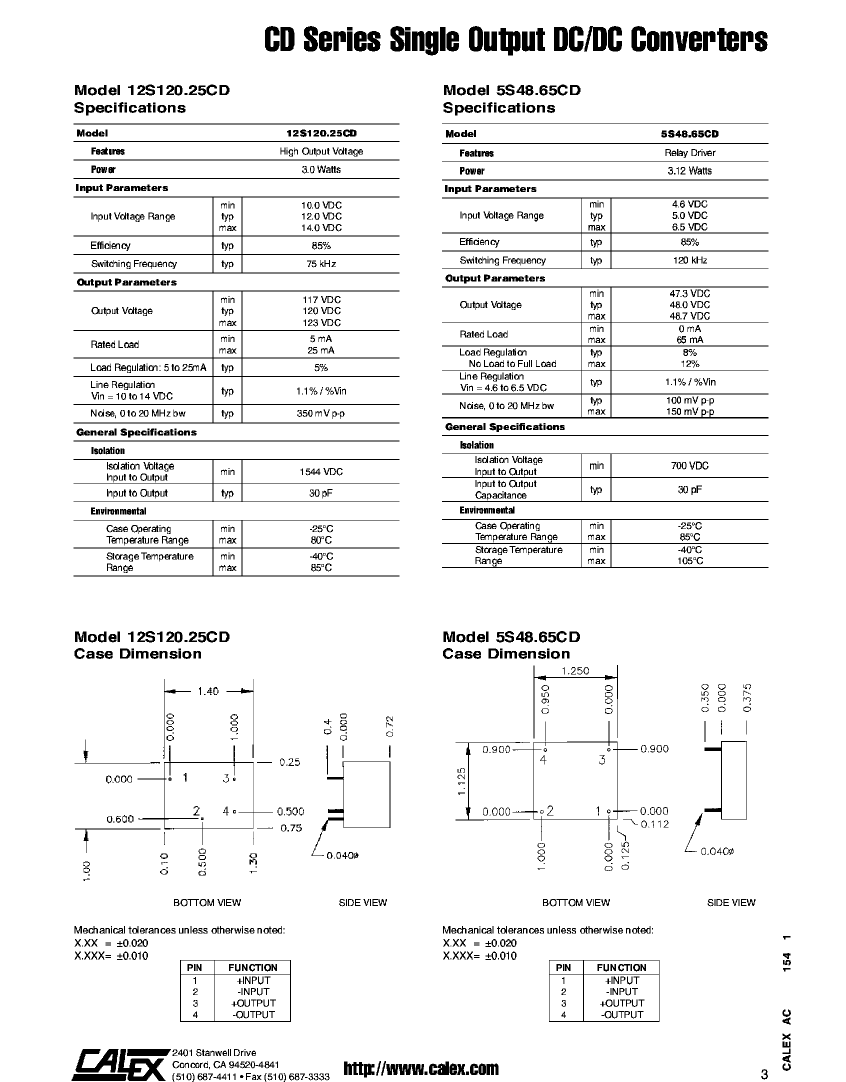

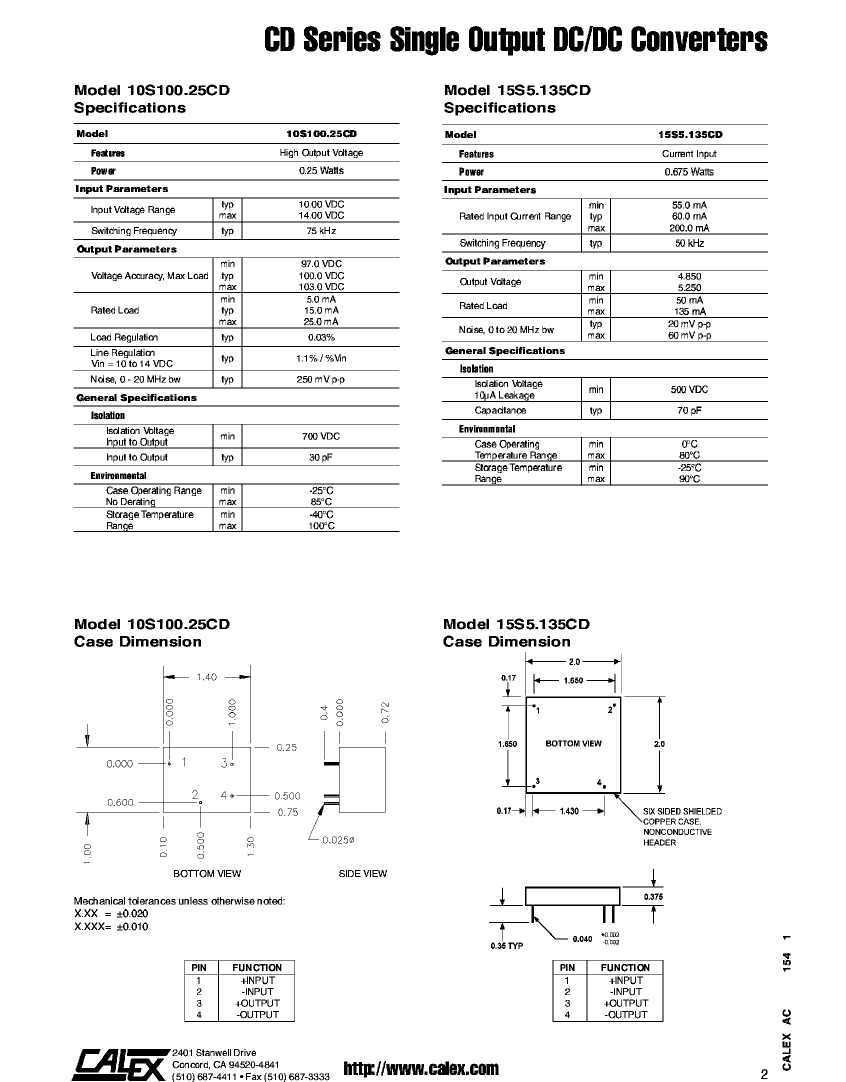

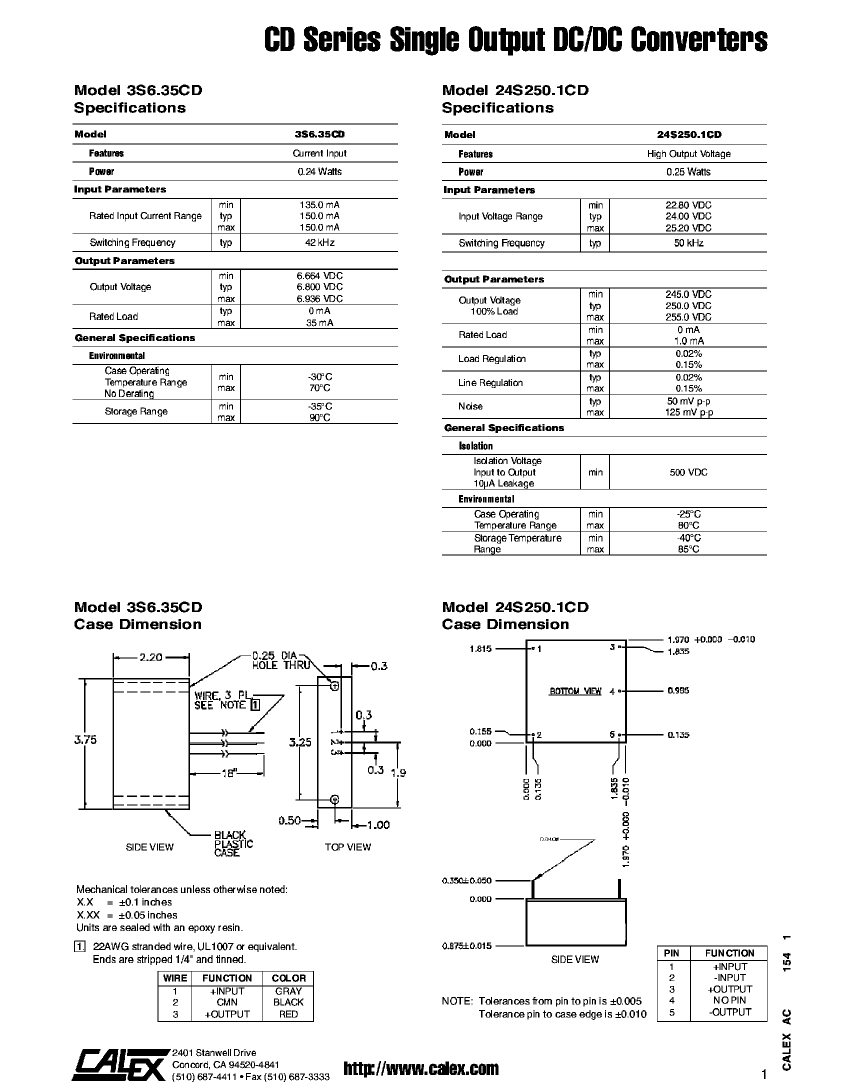

| Parameter Name | Attribute value |
| Maker | Calex Mfg Co Inc. |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Analog Integrated Circuits - Other Types | DC-DC REGULATED POWER SUPPLY MODULE |
| Maximum input voltage | 5.25 V |
| Minimum input voltage | 4.75 V |
| Nominal input voltage | 5 V |
| JESD-30 code | S-XDIP-P4 |
| Maximum load regulation | 0.2% |
| Number of functions | 1 |
| Output times | 1 |
| Number of terminals | 4 |
| Maximum output voltage | 12.1 V |
| Minimum output voltage | 11.9 V |
| Nominal output voltage | 12 V |
| Package body material | UNSPECIFIED |
| Package shape | SQUARE |
| Package form | IN-LINE |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal form | PIN/PEG |
| Terminal location | DUAL |
| Maximum total power output | 6 W |
| Fine-tuning/adjustable output | NO |
| 5S12.500CD | 12S120.25CD | 10S100.25CD | 24S250.1CD | 24S5.1300CD | 3S6.35CD | 5S12.2.500CD | 48S17.300CD | |
|---|---|---|---|---|---|---|---|---|
| Description | DC-DC Regulated Power Supply Module, 1 Output, 6W | DC-DC Regulated Power Supply Module, 1 Output, 3W | DC-DC Regulated Power Supply Module, 1 Output, 0.25W | DC-DC Regulated Power Supply Module, 1 Output, 0.25W | DC-DC Regulated Power Supply Module, 1 Output, 6.5W | DC-DC Regulated Power Supply Module, 1 Output, 0.24W | DC-DC Regulated Power Supply Module, 1 Output, 6.125W | DC-DC Regulated Power Supply Module, 1 Output, 5.2W |
| Reach Compliance Code | compliant | compli | compli | compli | compli | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Analog Integrated Circuits - Other Types | DC-DC REGULATED POWER SUPPLY MODULE | DC-DC REGULATED POWER SUPPLY MODULE | DC-DC REGULATED POWER SUPPLY MODULE | DC-DC REGULATED POWER SUPPLY MODULE | DC-DC REGULATED POWER SUPPLY MODULE | DC-DC REGULATED POWER SUPPLY MODULE | DC-DC REGULATED POWER SUPPLY MODULE | DC-DC REGULATED POWER SUPPLY MODULE |
| JESD-30 code | S-XDIP-P4 | R-XQIP-P4 | R-XQIP-P4 | S-XDIP-P5 | S-XDIP-P5 | R-PSIP-P3 | S-XDIP-P5 | S-XDIP-P4 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Output times | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 4 | 4 | 4 | 5 | 5 | 3 | 5 | 4 |
| Maximum output voltage | 12.1 V | 123 V | 103 V | 255 V | 5.05 V | 6.936 V | 12.325 V | 17.1 V |
| Minimum output voltage | 11.9 V | 117 V | 97 V | 245 V | 4.95 V | 6.664 V | 12.175 V | 16.9 V |
| Nominal output voltage | 12 V | 120 V | 100 V | 250 V | 5 V | 6.8 V | 12.25 V | 17 V |
| Package body material | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | PLASTIC/EPOXY | UNSPECIFIED | UNSPECIFIED |
| Package shape | SQUARE | RECTANGULAR | RECTANGULAR | SQUARE | SQUARE | RECTANGULAR | SQUARE | SQUARE |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO |
| Terminal form | PIN/PEG | PIN/PEG | PIN/PEG | PIN/PEG | PIN/PEG | PIN/PEG | PIN/PEG | PIN/PEG |
| Terminal location | DUAL | QUAD | QUAD | DUAL | DUAL | SINGLE | DUAL | DUAL |
| Maximum total power output | 6 W | 3 W | 0.25 W | 0.25 W | 6.5 W | 0.24 W | 6.125 W | 5.2 W |
| Fine-tuning/adjustable output | NO | NO | NO | NO | NO | NO | NO | NO |
| Maximum input voltage | 5.25 V | 14 V | 14 V | 25.2 V | 25.2 V | - | 5.25 V | 52 V |
| Minimum input voltage | 4.75 V | 10 V | - | 22.8 V | 22.8 V | - | 4.3 V | 44 V |
| Nominal input voltage | 5 V | 12 V | 10 V | 24 V | 24 V | - | 5 V | 48 V |
| Maximum load regulation | 0.2% | - | - | 0.15% | 0.35% | - | 0.4% | 0.2% |
| Base Number Matches | - | 1 | 1 | 1 | 1 | 1 | 1 | - |
