45971-0163 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 45971-0163

45971-0163: Description114 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size1MB，12 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

45971-0163 Overview

114 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER, RECEPTACLE

45971-0163 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknow
ECCN code	EAR99
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	45971
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	6
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	114
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

This document was generated on 05/25/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Description:

0459710163

Active

1.27mm (.050") by 1.27mm (.050") Pitch SEARAY* Receptacle, 114 Circuits, 5.00mm

(.196") Unmated Height, 6 Rows, With Pegs, Solder Charge™

Documents:

3D Model

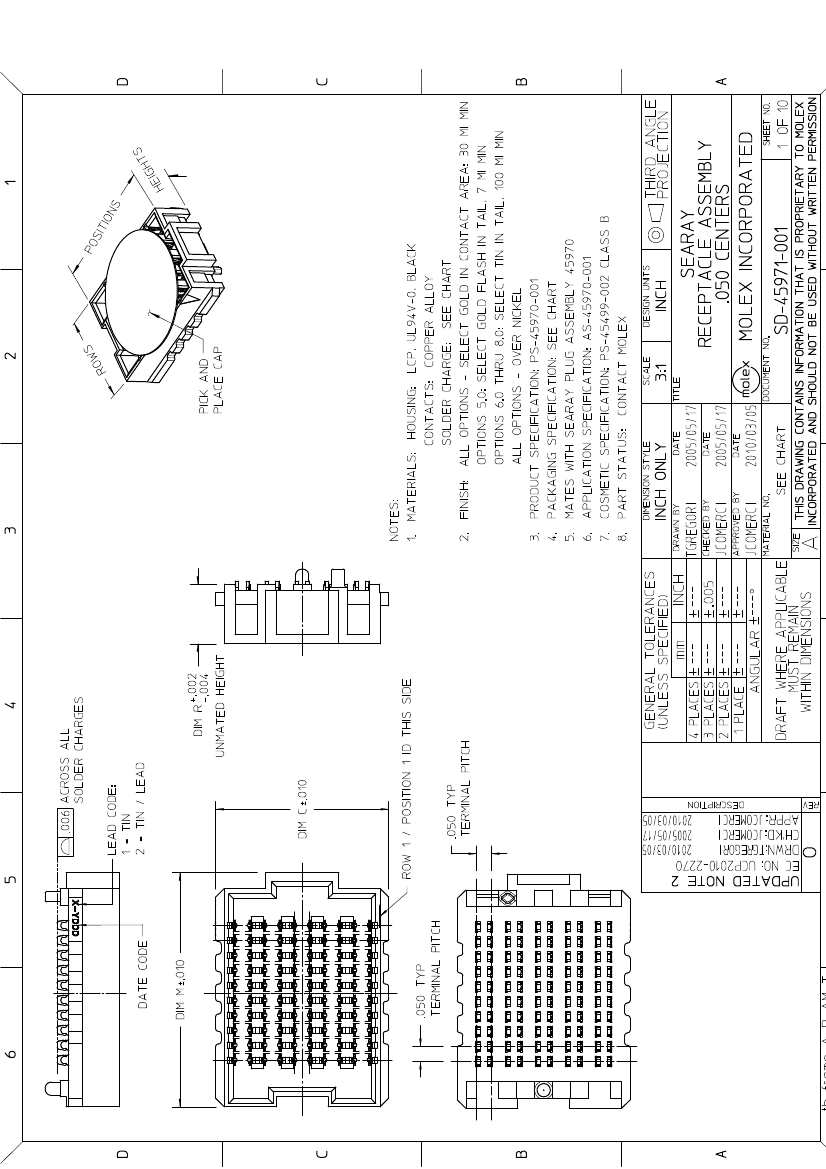

Drawing (PDF)

Product Specification PS-45970-001 (PDF)

Product Specification PS-45970-002 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Product Name

PCB Receptacles

45971

Board-to-Board

SEARAY*

EU RoHS

Not RoH

REACH S

Not Revie

Halogen

Status

Not Revi

Physical

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Robotic Placement

Stackable

114

Black

100

94V-0

None

Copper Alloy

Gold

Tin-Lead

High Temperature Thermoplastic

Vertical

0.086 In

2.18 mm

Yes

0.062 In

1.57 mm

Tray

0.050 In

1.27 mm

0.050 In

1.27 mm

0.75

100

2.5

Yes

Pick and Place Cap

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

45971S

Mates

45970
