45985-1922: Description12.00mm (0.472") Pitch, EXTreme LPHPower Header, Right Angle, 10 Power Contacts, Select Gold (Au) Plating; File Size330KB，7 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

45985-1922 Overview

12.00mm (0.472") Pitch, EXTreme LPHPower Header, Right Angle, 10 Power Contacts, Select Gold (Au) Plating

Preview

Download Datasheet

View All

This document was generated on 05/25/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0459851933

Active

extreme_lphpower

12.00mm (0.472") Pitch, EXTreme LPHPower™ Header, Right Angle, 10 Power

Contacts, Select Gold (Au) Plating, for 1.57mm (.062") Thick PC Board, with Press-fit

Plastic Pegs

Documents:

3D Model

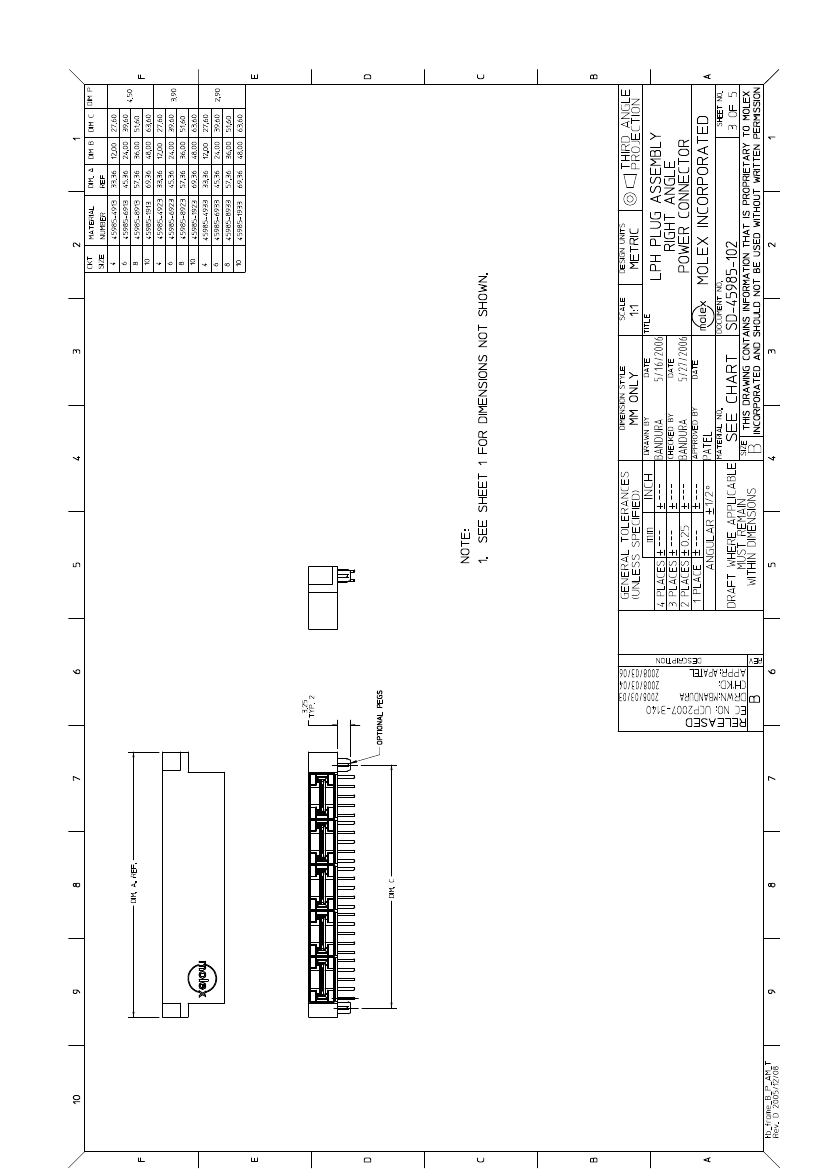

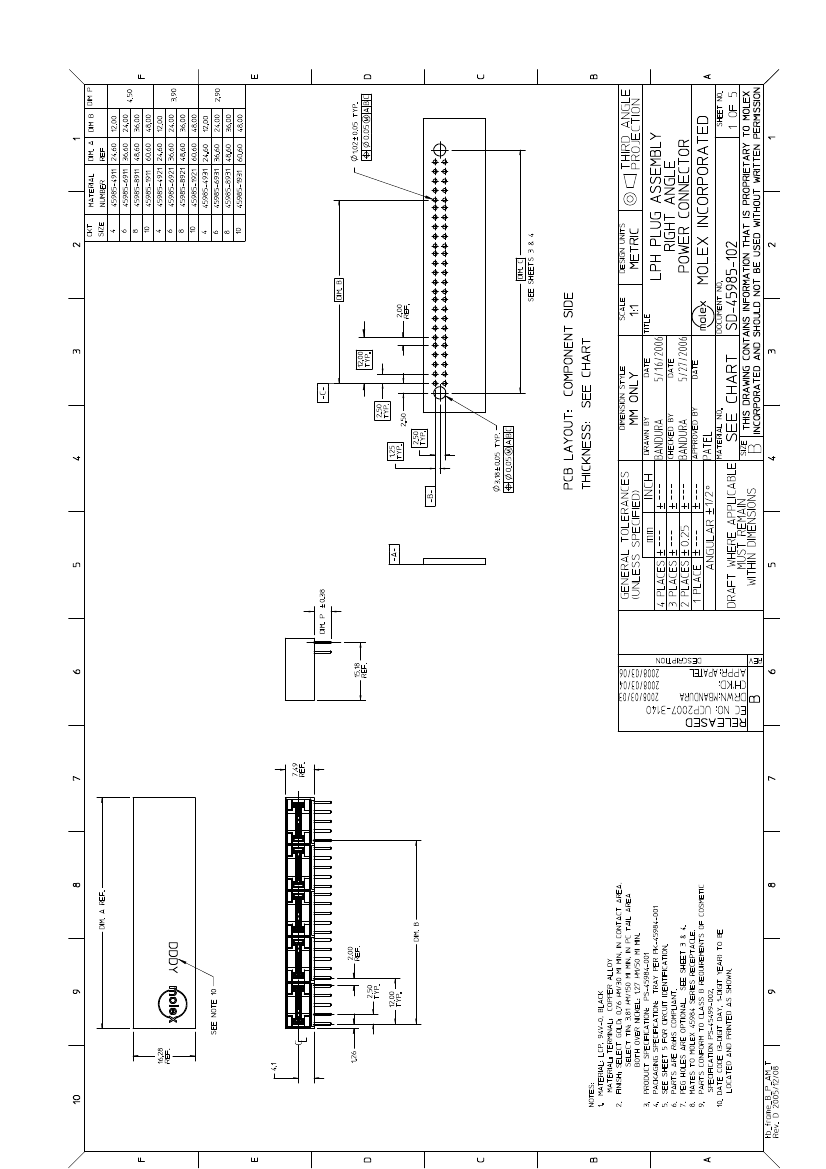

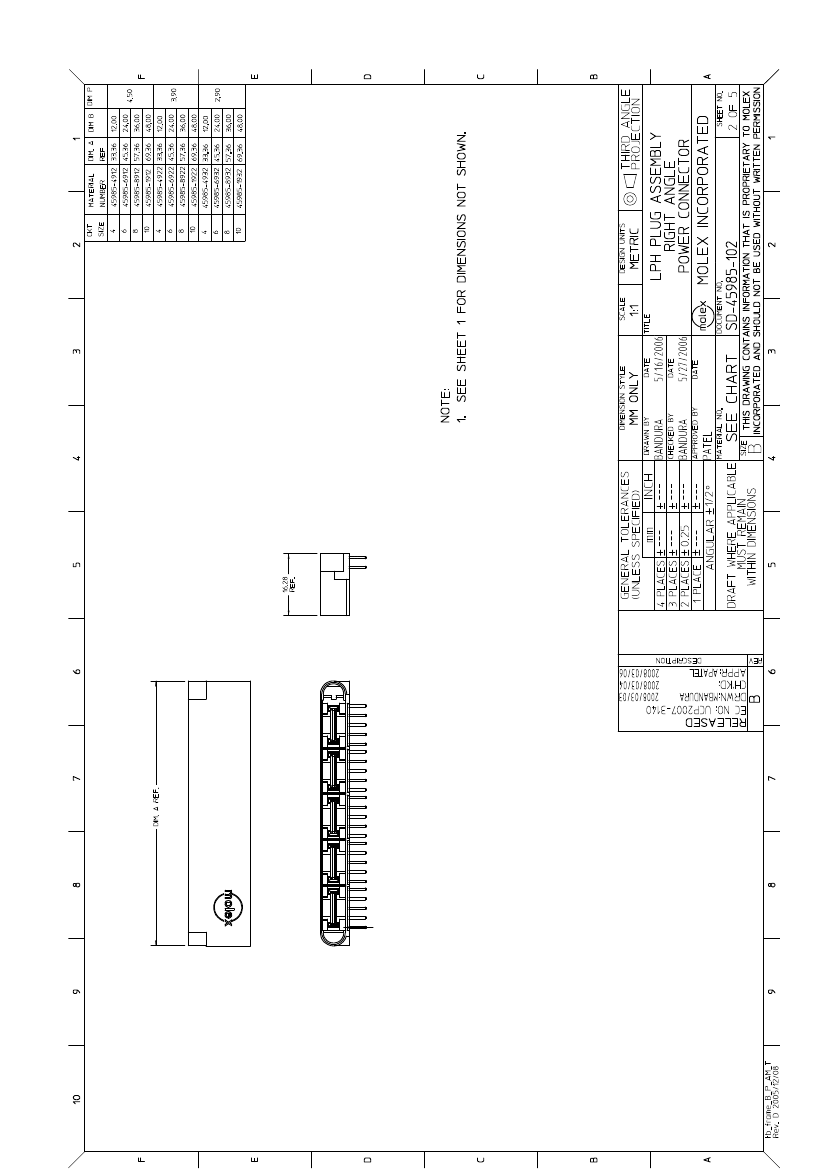

Drawing (PDF)

Product Specification PS-45984-001 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

TUV

LR19980

30683046

E29179

General

Product Family

Series

Application

Comments

Overview

Product Name

PCB Headers

45985

Board-to-Board

10 Power Blades

extreme_lphpower

EXTreme LPHPower™

EU RoHS

ELV and

Complia

REACH S

Not Revie

Halogen

Status

Not Revi

Need mo

environm

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

10 Power, No Signal

Black

250

Yes

94V-0

None

High Performance Alloy (HPA)

Gold

Tin

High Temperature Thermoplastic

Right Angle

0.114 In

2.90 mm

Yes

0.062 In

1.57 mm

Tray

0.472 In

12.00 mm

0.079 In, 0.098 In

2.00 mm, 2.50 mm

0.75

Email pro

For a mu

Complian

Please vi

non-prod

45985S

Mates

45984

Recept

45985-1922 Related Products

	45985-1922	45985-1933
Description	12.00mm (0.472") Pitch, EXTreme LPHPower Header, Right Angle, 10 Power Contacts, Select Gold (Au) Plating	12.00mm (0.472") Pitch, EXTreme LPHPower Header, Right Angle, 10 Power Contacts, Select Gold (Au) Plating
