3-221128-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-221128-2

3-221128-2: DescriptionCABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG; CategoryThe connector The connector; File Size284KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

3-221128-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-221128-2	-	-	View	Buy Now

3-221128-2 Overview

CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG

3-221128-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
Other features	APPLICABLE CABLES: RG 188/U; RG 316/U-0
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.2 dB
insulator material	POLYETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	221128
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.3
Base Number Matches	1

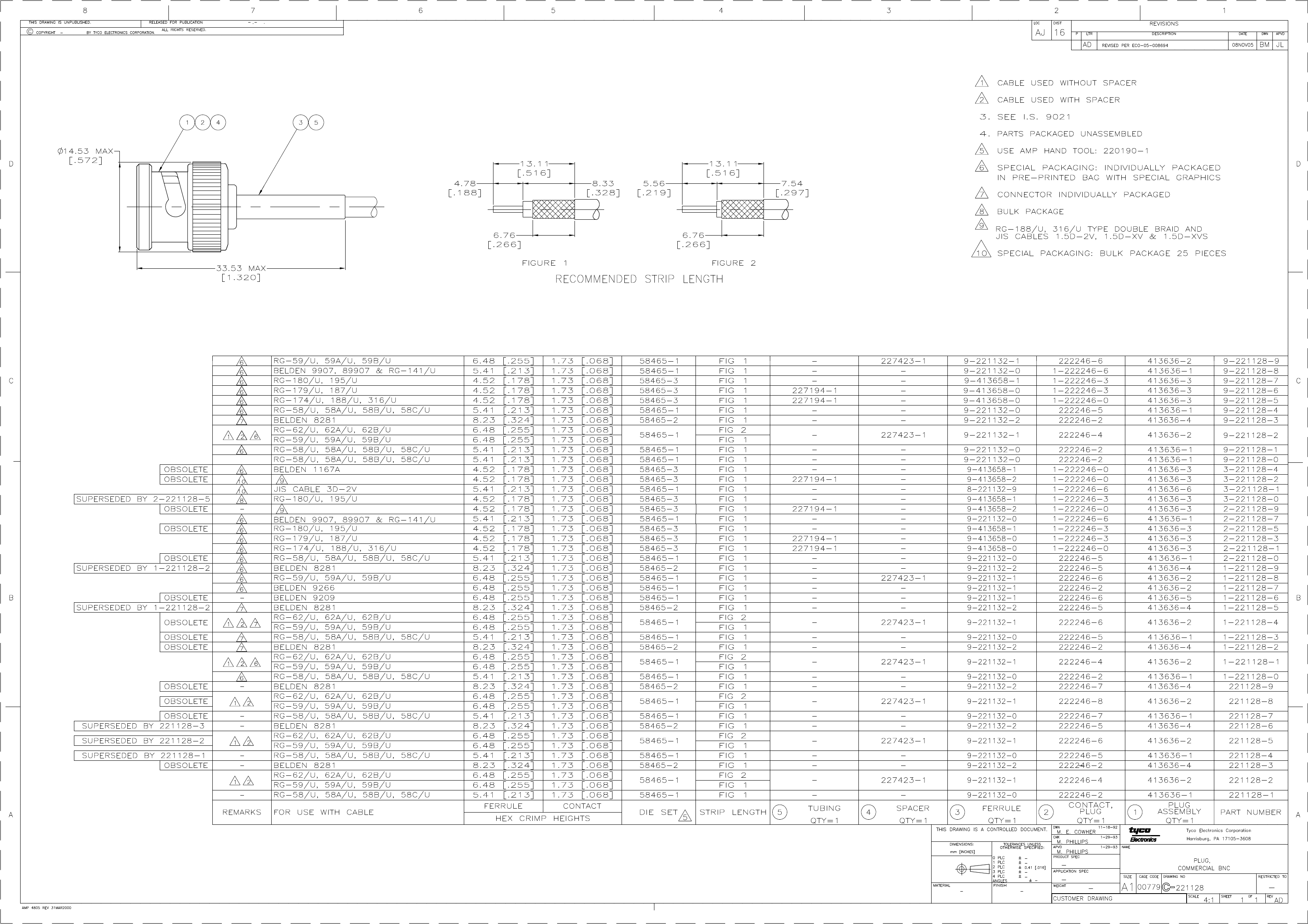

Preview

Download Datasheet

View All

3-221128-2 Related Products

	3-221128-2	1-221128-5	9-221128-4	9-221128-3	221128-4	9-221128-7	3-221128-0	221128-3
Description	CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG	CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG	CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG	CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG	CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG	CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG	CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG	CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknown	unknow
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact to complete cooperation	GOLD	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Coupling type	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	221128	221128	221128	221128	221128	221128	221128	221128
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO	NO	NO	NO	NO
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Other features	APPLICABLE CABLES: RG 188/U; RG 316/U-0	-	APPLICABLE CABLES: RG 58/U; RG 58A/U; RG 58B/U; RG 58C/U	-	APPLICABLE CABLES: RG 58/U; RG 58A/U; RG 58B/U; RG 58C/U	APPLICABLE CABLES: RG 180/U; RG 195/U-3	APPLICABLE CABLES: RG 180/U; RG 195/U-3	-
Base Number Matches	1	1	1	1	1	1	1	-
