850420268 Overview

2.54mm (.100") Pitch DIN 41612 Receptacle, Style C, 64 Circuits

This document was generated on 05/17/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
Documents:
3D Model

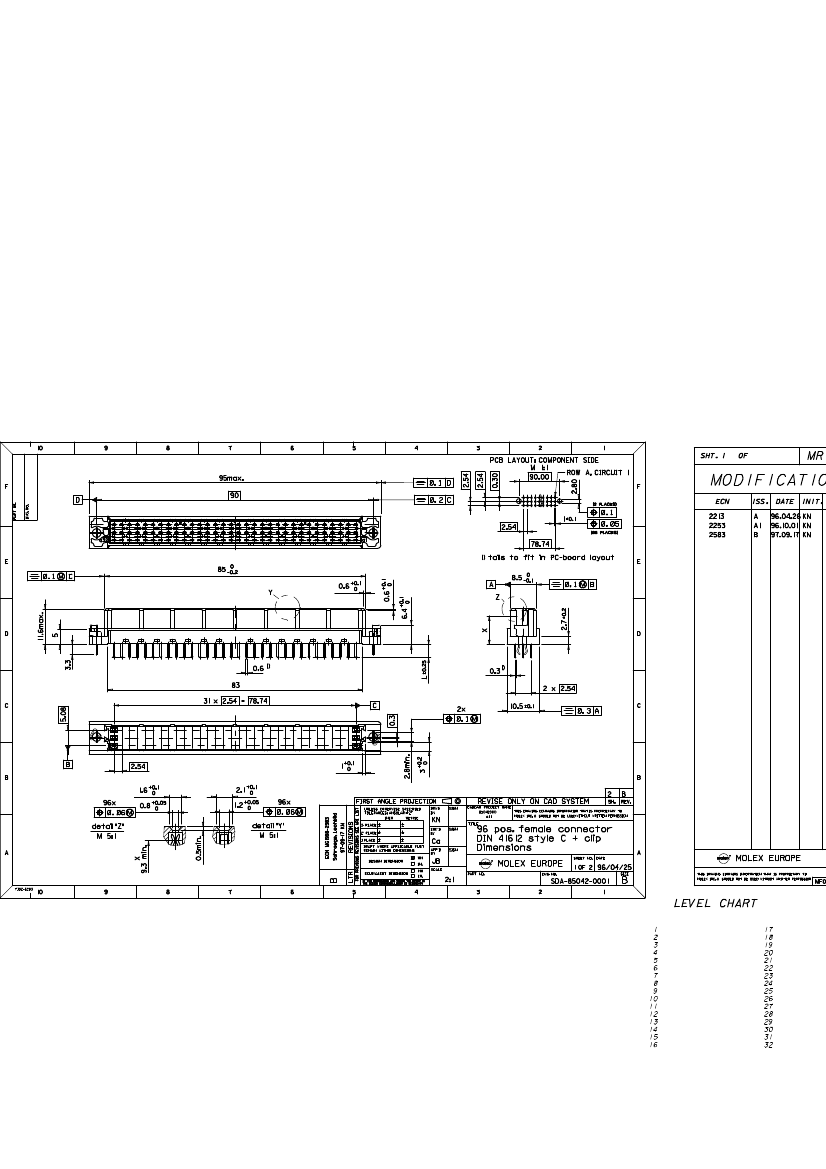

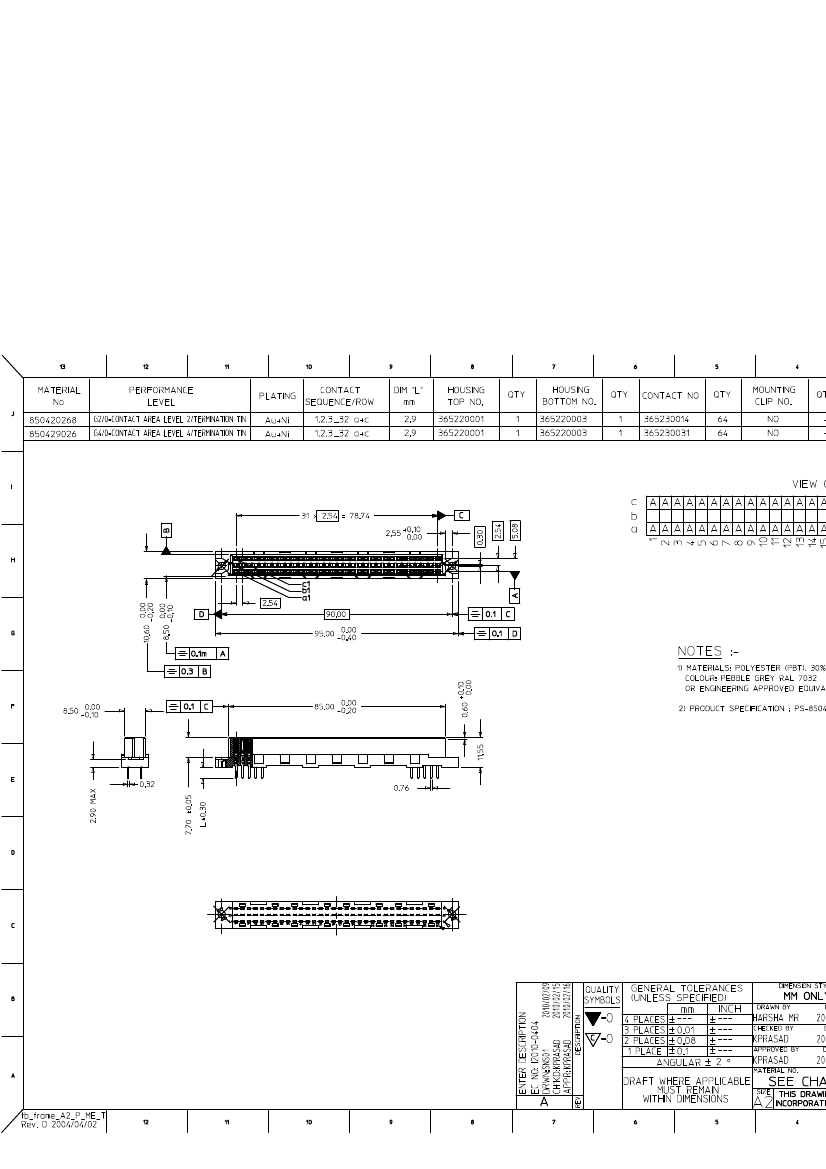

Drawing (PDF)
0850420268
Active
din_41612
2.54mm (.100") Pitch DIN 41612 Receptacle, Style C, 64 Circuits
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Application
Component Type
Overview
Product Name
Style
Backplane Connectors
85042
Daughtercard
PCB Receptacle
din_41612
IEC 603-2/DIN 41612
C
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
Physical
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Durability (mating cycles max)
First Mate / Last Break
Flammability
Guide to Mating Part
Keying to Mating Part
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
64
96
Rows A & C
400
No
94V-0
No
Yes
32
Open Pin Field
3
Vertical
0.114 In
2.90 mm
No
Yes
Tray
0.100 In
2.54 mm
0.100 In
2.54 mm
Yes
No
No
-55°C to +125°C
Email pro
For a mu
Complian
Please vi
non-prod
Search
85042S
Mates
DIN 41
Electrical
Current - Maximum per Contact
Data Rate
Real Signals (per 25mm)
Shielded
Voltage - Maximum
2.5A
622.0 Mbps
29
No
250V AC (RMS)
