A-44472-0857: Description4.20mm (.165") Pitch Mini-Fit HCS Header, Dual Row, Vertical, without Snap-in Plastic Peg PCB; File Size212KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

A-44472-0857 Overview

4.20mm (.165") Pitch Mini-Fit HCS Header, Dual Row, Vertical, without Snap-in Plastic Peg PCB

Preview

Download Datasheet

View All

This document was generated on 04/09/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Description:

0444720857

Active

4.20mm (.165") Pitch Mini-Fit HCS™ Header, Dual Row, Vertical, without Snap-in

Plastic Peg PCB Lock, 8 Circuits, PA Polyamide Nylon 6/6 94V-0, with Drain Holes

Documents:

3D Model

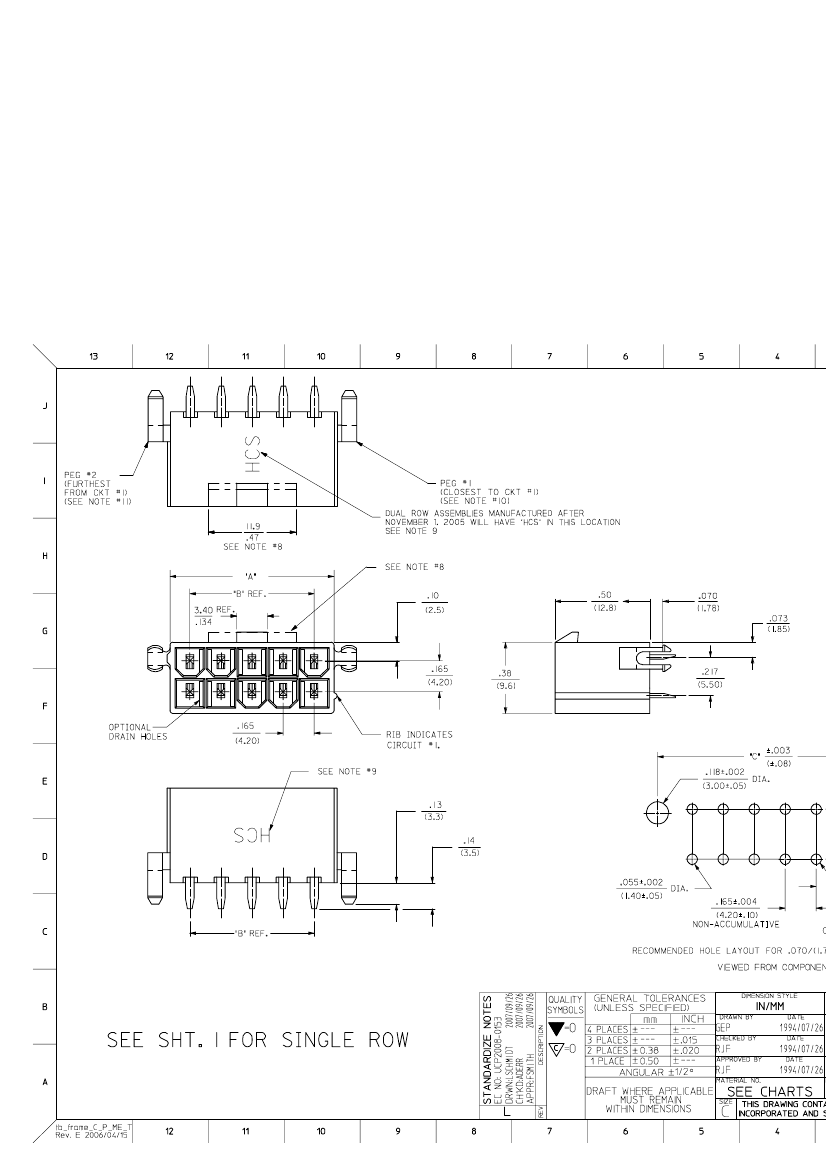

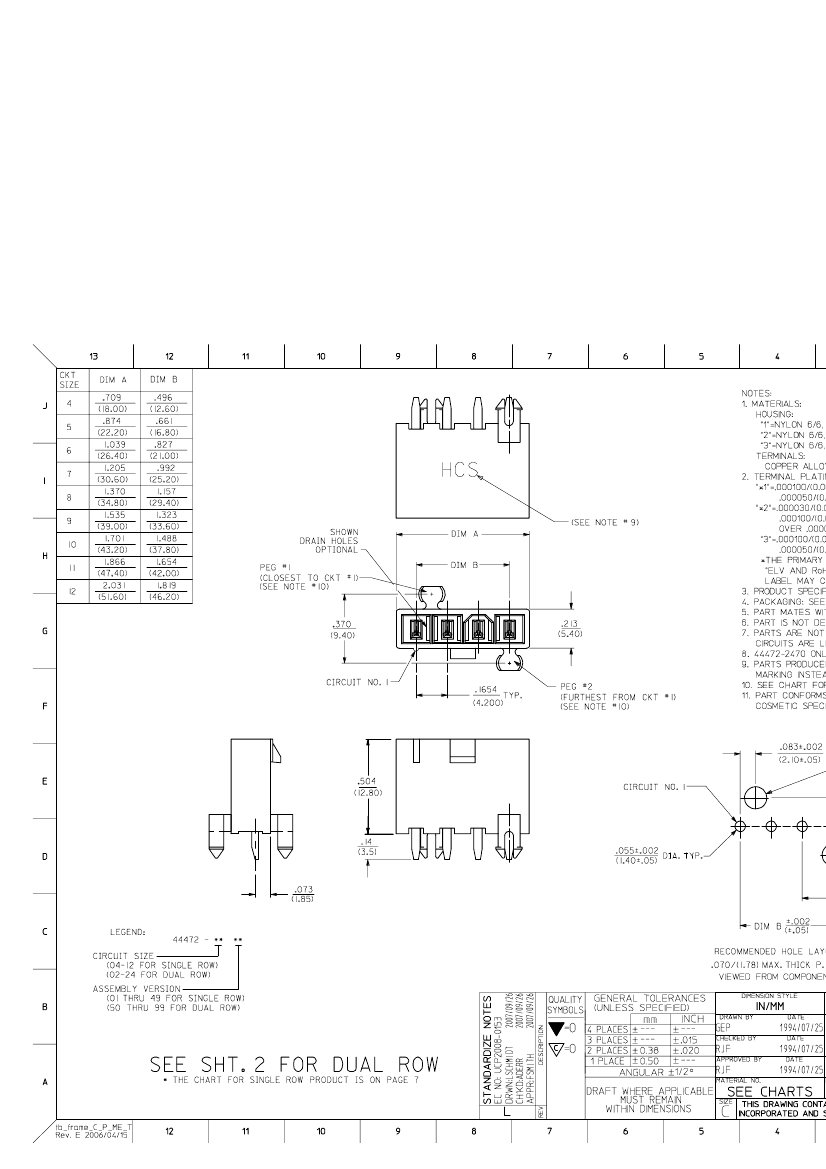

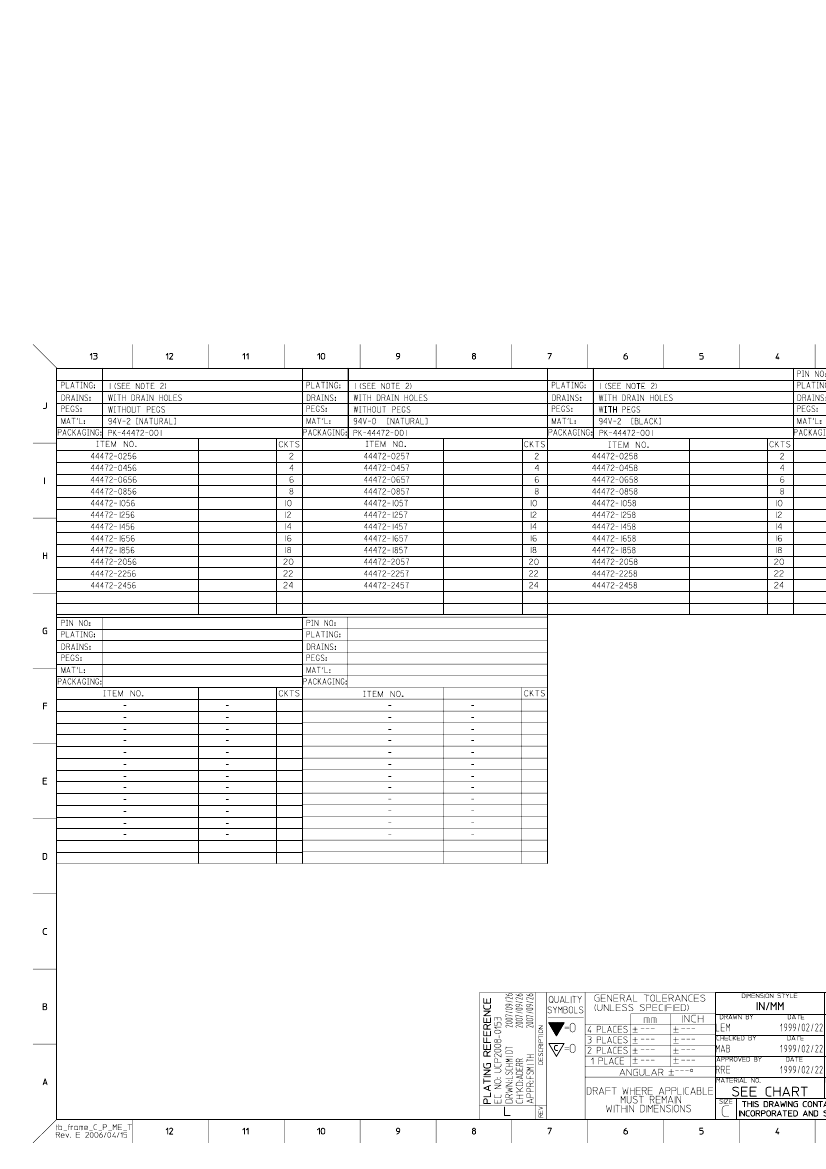

Drawing (PDF)

Packaging Specification (PDF)

Product Specification PS-44476-001 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Comments

Product Name

PCB Headers

44472

Wire-to-Board

Square Pin|Solder Type

Mini-Fit HCS™

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Natural (White)

94V-0

High Performance Alloy (HPA)

Tin

Nylon

Vertical

Yes

None

0.070 In

1.80 mm

Tray

0.165 In

4.20 mm

100

2.50

100

2.50

Yes

Partial

-40°C to +105°C

Through Hole

EU RoHS

ELV and

Complia

REACH S

Not Revie

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

44472S

Mates

5557d

Electrical

Current - Maximum per Contact

Voltage - Maximum

11A

600V

Recommended Resources

Power supply circuit design optimized for digital light projectors

One-way operation energy consumption braking circuit 5

STK1039 power amplifier circuit diagram

Foreign language automatic reader circuit

Analog voltage divider circuit for wideband X input

TA7205AP power amplifier circuit
