LS5-101K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> LS5-101K

LS5-101K: DescriptionGeneral Purpose Inductor, 100uH, 10%, 1 Element, Ferrite-Core; CategoryPassive components inductor; File Size22KB，1 Pages; ManufacturerInductor Supply Inc

Download Datasheet Parametric Compare View All

LS5-101K Overview

General Purpose Inductor, 100uH, 10%, 1 Element, Ferrite-Core

LS5-101K Parametric

Parameter Name	Attribute value
Maker	Inductor Supply Inc
Reach Compliance Code	unknown
ECCN code	EAR99
core material	FERRITE
DC Resistance	3.1 Ω
Nominal inductance(L)	100 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	LS5
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Minimum quality factor (at nominal inductance)	70
Maximum rated current	0.28 A
self resonant frequency	20 MHz
Shape/Size Description	TUBULAR PACKAGE
shield	YES
surface mount	NO
Terminal location	AXIAL
Terminal shape	PRINTED WIRING PIN
Test frequency	2.5 MHz
Tolerance	10%

Preview

Download Datasheet

View All

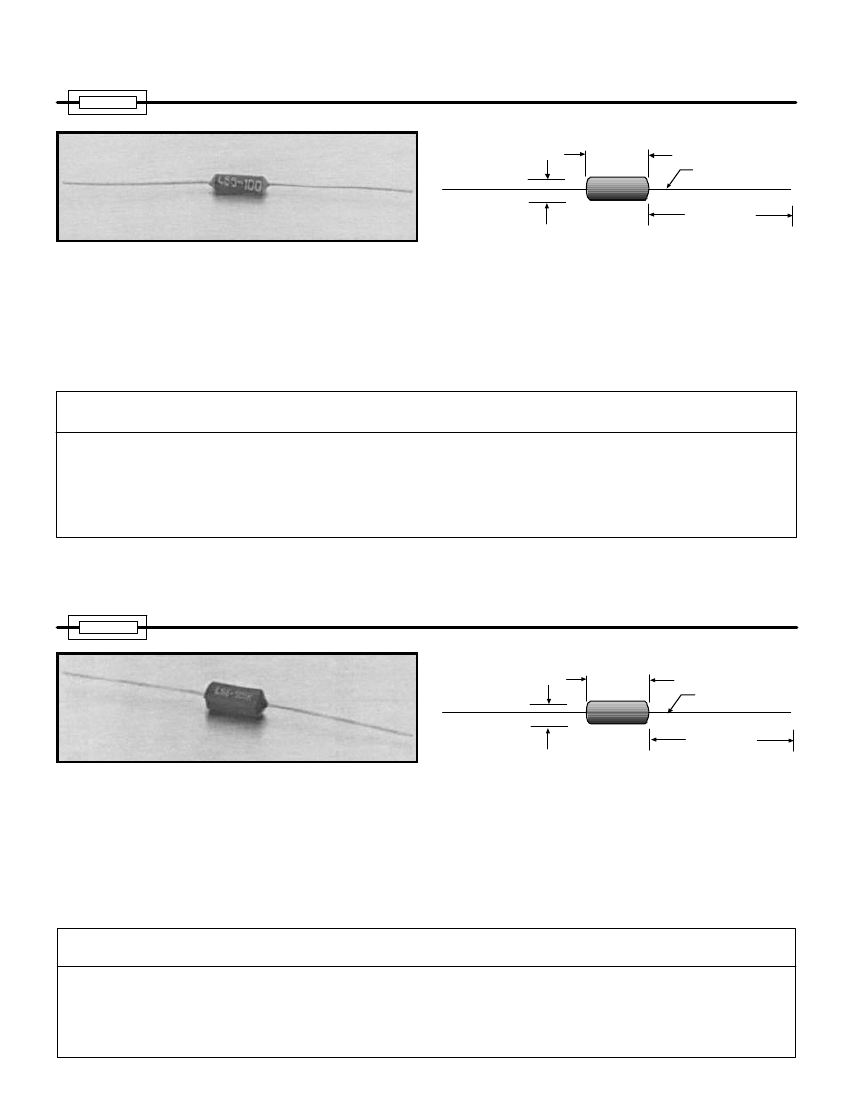

LS5

Miniature

Shielded Chokes

.450" max

22 AWG/TCW

1.15"nominal

0.15" max

Reliable miniature shielded chokes especially suited to filtering aplications where small size, low DC resistance, magnetic

shielding and medium-to-high stability characteristics are required.

INDUCTANCES 1.0µH to 100µH

CURRENT RATING Based on 0.33 watt power dissipation for

approximately 20°C temperature rise.

INDUCTANCE TOLERANCE ±10% over entire inductance

range.

DIELECTRIC WITHSTANDING VOLTAGE 1000Vms.

OPERATING TEMPERATURE RANGE -55°C to +105°C.

PART

NUMBER

LS5-1R0K

LS5-2R5K

LS5-5R0K

LS5-100K

LS5-250K

LS5-500K

LS5-101K

INDUCTANCE

(µH)

1.0

2.5

5.0

100

MINIMUM

CONSTRUCTION Epoxy encapsulated, tinned copper wire

leads, ferrite shield.

TESTING Inductance measured on Q meter at specified

frequency. DCR measured with Milliohm meter.

MARKING 5 Band Color Code

PACKAGING Bulk only

SELF RESONANT

FREQUENCY

MINIMUM (MHz)

200

115

DC RESISTANCE

OHMS

MAXIMUM (Ω )

.05

.08

.12

.42

.80

1.50

3.10

RATED DC

CURRENT MAX

(mA)

2200

1700

1400

770

560

400

280

TEST

FREQUENCY

(MHz)

7.9

2.5

LS6

Shielded

Chokes

.530" max

22 AWG/TCW

1.15"nominal

0.27" max

Reliable shielded chokes for filtering applications. All feature small size, low DC resistance, magnetic shieldingand medium-

to-high stability.

INDUCTANCES 250µH to 1000µH

CURRENT RATING Based on 0.43 watt power dissipation for

approximately 20°C temperature rise.

INCREMENTAL CURRENT Is thecurrent at whichtheinductance

will be decreased b 5% fr

om its initial (zero-DC) value.

INDUCTANCE TOLERANCE ±10% o

ver entire inductance

range.

PART

NUMBER

LS6-251K

LS6-501K

LS6-102K

INDUCTANCE

(µH)

250

500

1000

TEST

FREQUENCY

1kHz

DIELECTRIC WITHSTANDING VOLTAGE 1000Vms.

CONSTRUCTION Epoxy encapsulated, tinned copper wire

leads, ferrite shield.

TESTING Inductance measured 1kHz withGenRad 1658 RLC

Digit Bridge. DCR measured with Milliohm meter.

MARKING Part number printed on part

PACKAGING Bulk only

DC RESISTANCE

OHMS

MAXIMUM (Ω )

.17

.39

.80

RATED DC

CURRENT MAX

(mA)

1330

880

610

INCREMENT AL

CURRENT (mA)

LS5-101K Related Products

	LS5-101K	LS5-500K	LS6-102K	LS5-250K	LS5-5R0K
Description	General Purpose Inductor, 100uH, 10%, 1 Element, Ferrite-Core	General Purpose Inductor, 50uH, 10%, 1 Element, Ferrite-Core	General Purpose Inductor, 1000uH, 10%, 1 Element, Ferrite-Core	General Purpose Inductor, 25uH, 10%, 1 Element, Ferrite-Core	General Purpose Inductor, 5uH, 10%, 1 Element, Ferrite-Core
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
core material	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE
DC Resistance	3.1 Ω	1.5 Ω	0.8 Ω	0.8 Ω	0.12 Ω
Nominal inductance(L)	100 µH	50 µH	1000 µH	25 µH	5 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	FILTER CHOKE	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	LS5	LS5	LS6	LS5	LS5
Number of functions	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum rated current	0.28 A	0.4 A	0.61 A	0.56 A	1.4 A
Shape/Size Description	TUBULAR PACKAGE	TUBULAR PACKAGE	TUBULAR PACKAGE	TUBULAR PACKAGE	TUBULAR PACKAGE
shield	YES	YES	YES	YES	YES
surface mount	NO	NO	NO	NO	NO
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Terminal shape	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN
Test frequency	2.5 MHz	2.5 MHz	0.001 MHz	2.5 MHz	7.9 MHz
Tolerance	10%	10%	10%	10%	10%
Maker	Inductor Supply Inc	-	-	Inductor Supply Inc	Inductor Supply Inc
Maximum operating temperature	105 °C	105 °C	-	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C	-55 °C
Minimum quality factor (at nominal inductance)	70	60	-	55	35
self resonant frequency	20 MHz	27 MHz	-	35 MHz	90 MHz
