CD54HC354H/3A datasheet, PDF - EEWORLD Datasheet

CD54HC354H/3A: DescriptionHC/UH SERIES, 8 LINE TO 1 LINE MULTIPLEXER, COMPLEMENTARY OUTPUT, UUC20; Categorylogic logic; File Size296KB，10 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric View All

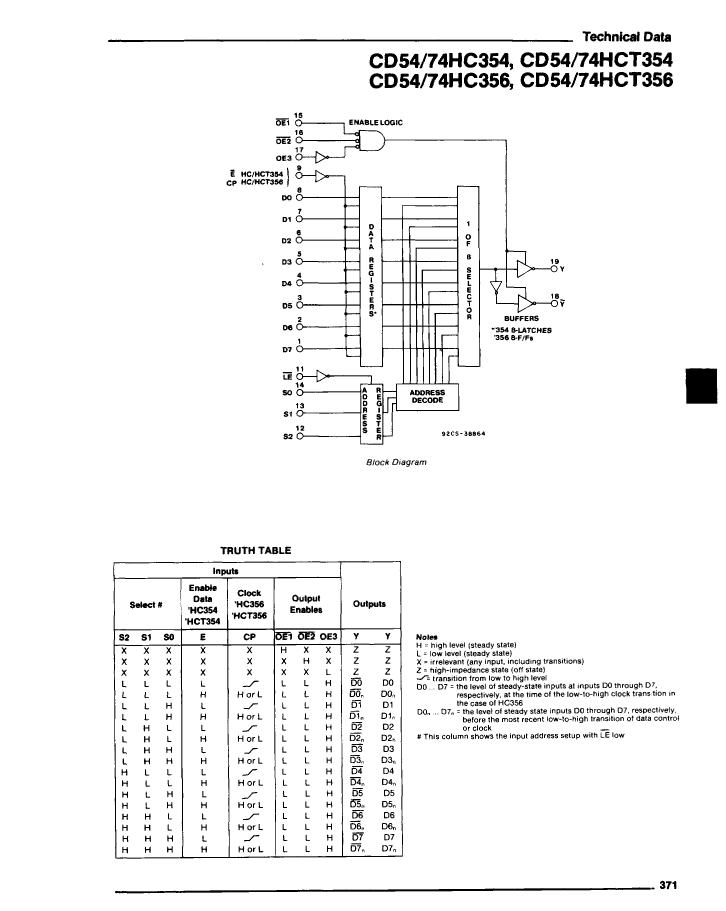

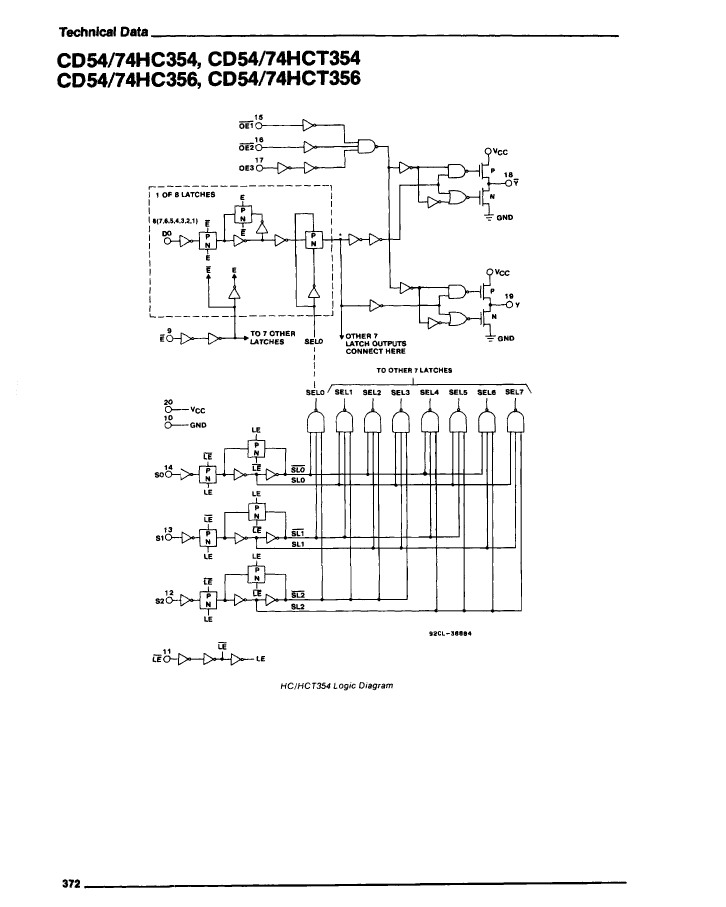

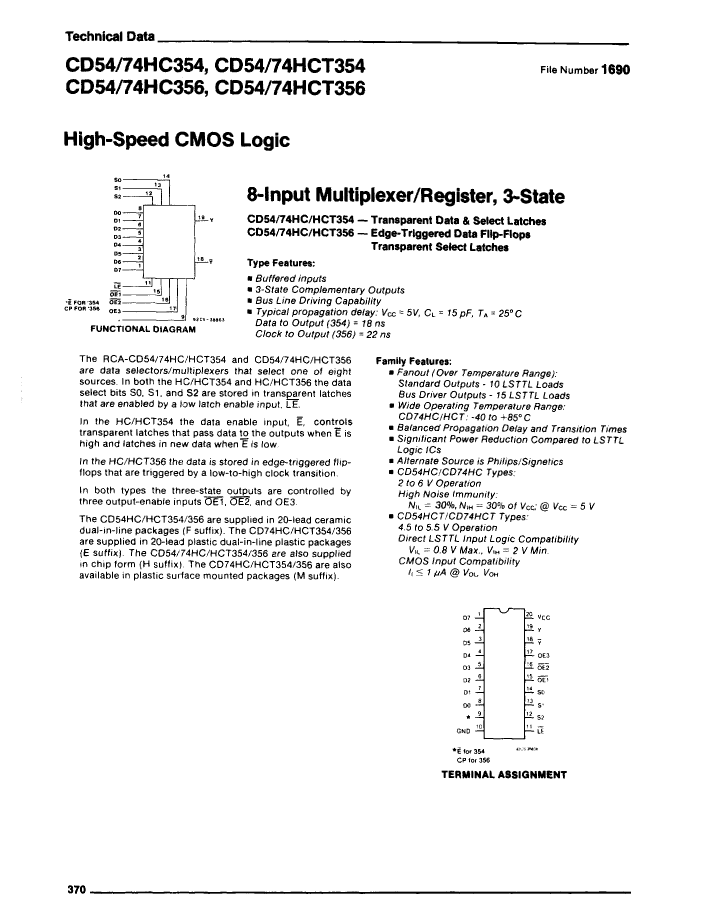

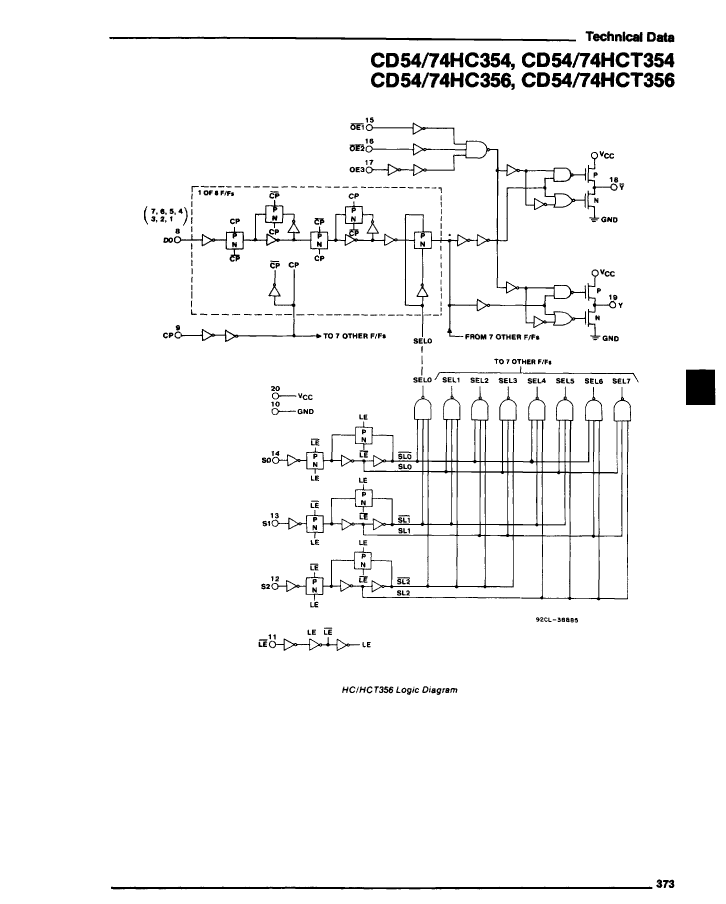

CD54HC354H/3A Overview

HC/UH SERIES, 8 LINE TO 1 LINE MULTIPLEXER, COMPLEMENTARY OUTPUT, UUC20

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
package instruction	DIE,
Reach Compliance Code	unknown
Other features	TRANSPARENT ADDRESS LATCHES; REGISTERED DATA INPUTS
series	HC/UH
JESD-30 code	X-XUUC-N20
Logic integrated circuit type	MULTIPLEXER
Number of functions	1
Number of entries	8
Output times	1
Number of terminals	20

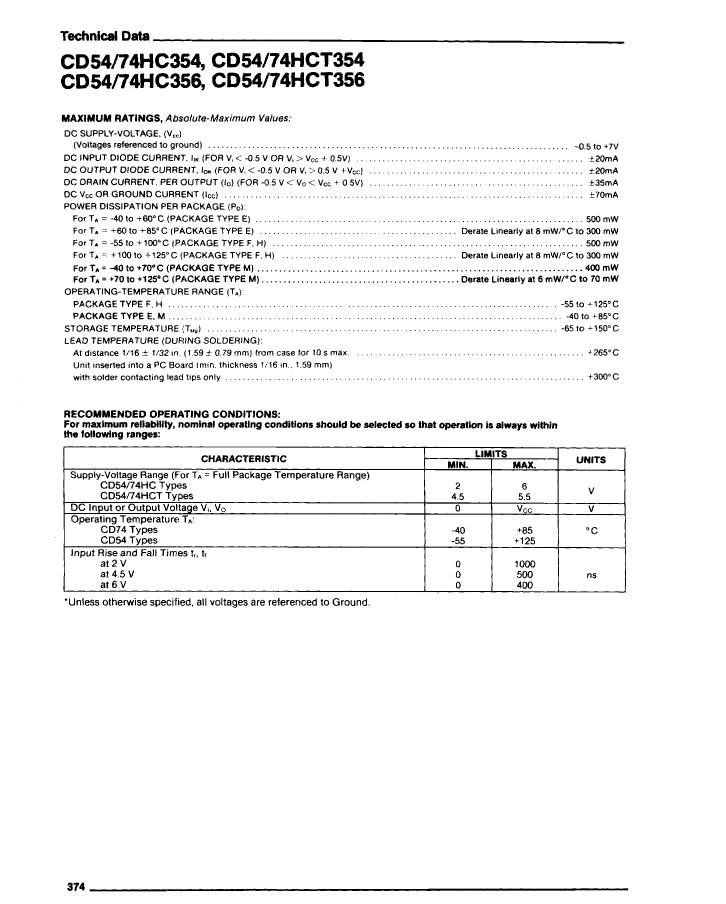

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	COMPLEMENTARY
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	UNSPECIFIED
Package form	UNCASED CHIP
propagation delay (tpd)	390 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	UPPER
