AR25A thru AR25M
Taiwan Semiconductor
CREAT BY ART
FEATURES
- Diffused junction
- Low leakage
- High surge capability
- Low cost construction utilizing void-free molded plastic technique
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
High Current Button Rectifiers
MECHANICAL DATA
Case:
AR
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test
Weight:
1.8 g (approximately)
AR
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25
o
C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@ 25 A
Maximum reverse current @ Rated VR T
J
=25
o
C
T
J
=125
o
C
Typical reverse recovery time (Note 2)
Typical junction capacitance (Note 3)
Typical Thermal Resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
Note 2: Reverse Recovery Time Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
trr
Cj
R
θJC
T
J
T
STG
AR
25A
50
35
50
AR
25B
100
70
100
AR
25D
200
140
200
AR
25G
400
280
400
25
400
1.0
5
250
3
300
1
- 50 to +175
- 50 to +175
O
AR
25J
600
420
600
AR
25K
800
560
800
AR
25M
1000
700
1000
UNIT
V
V
V
A
A
V
μA
μs
pF
C/W
O
O
C
C
Document Number: DS_D1409003
Version: D14
AR25A thru AR25M
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
AR25x
(Note 1)
PACKING CODE
PACKING CODE
SUFFIX
B0
G
AR
1,000 / Bulk packing
PACKAGE
PACKING
Note 1: "x" defines voltage from 50V (AR25A) to 1000V (AR25M)
EXAMPLE
PREFERRED P/N
AR25M B0
AR25M B0G
PART NO.
AR25M
AR25M
PACKING CODE
B0
B0
G
Green compound
PACKING CODE
SUFFIX
DESCRIPTION

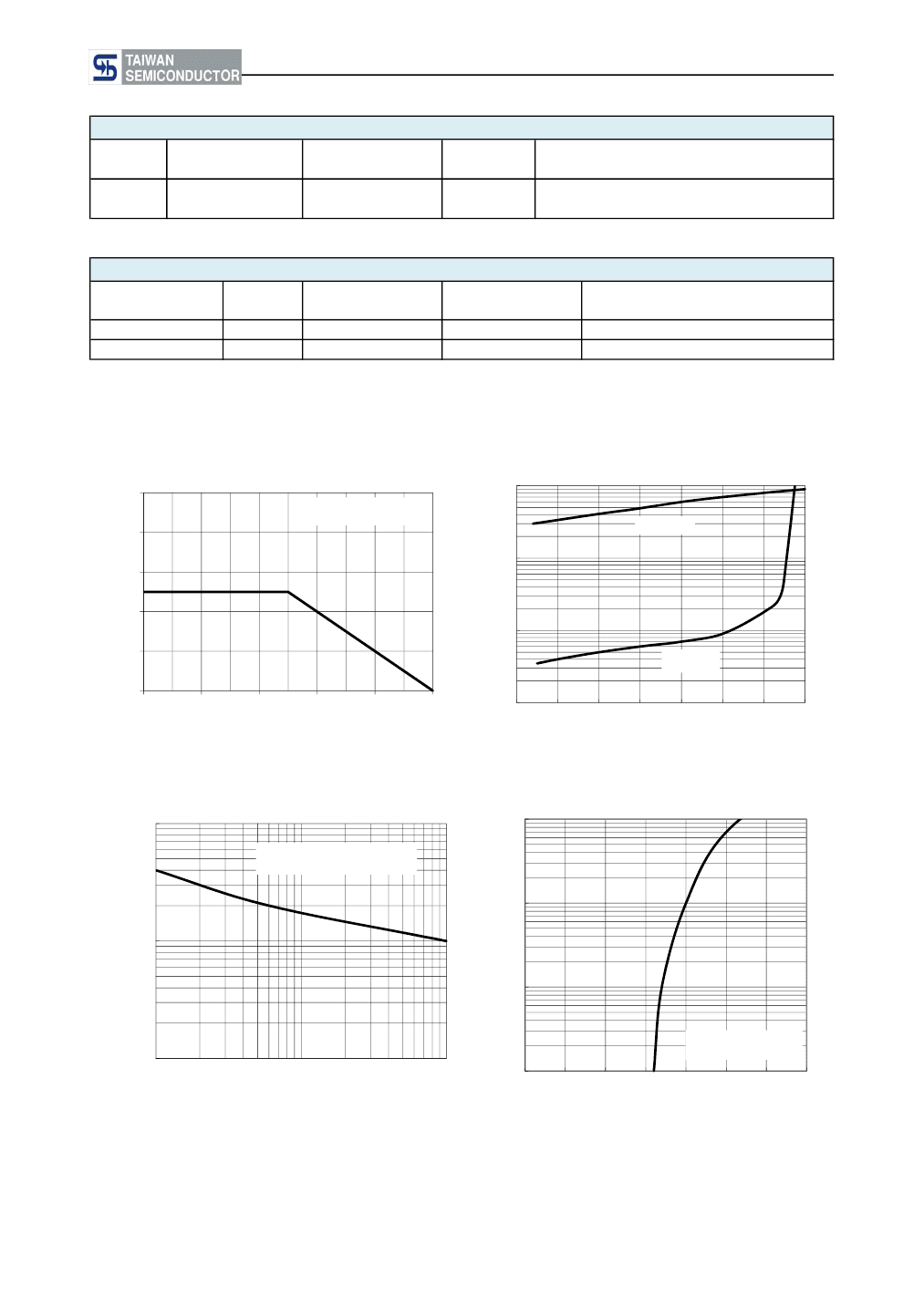

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25
o
C unless otherwise noted)
FIG.1- MAXMUM FORWARD CURRENT DERATING
CURVE
RESISTIVE OR
INDUCTIVE LOAD
40
INSTANTANEOUS REVERSE CURRENT (μA)
50
AVERAGE FORWARD CURRENT(A)
100
FIG. 2- TYPICAL REVERSE CHARACTERISTICS
T
J
=125
o
C
10
30
20
1
T
J
=25
o
C
10
0
125
135
145
155
165
175
CASE TEMPERATURE(
o
C)
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
FIG. 3- MAXIMUM NON-REPETITIVE PEAK FORWARD
SURGE CURRENT
1000
8.3ms Single Half Sine Wave
100
Fig. 4 TYPICAL FORWARD CHARACTERISTICS
INSTANTANEOUS FORWARD CURRENT(A)
PEAK FORWARD SURGE CURRENT(A)
10
100
1
10
1
10
NUMBER OF CYCLES AT 60 Hz
100
PULSE WIDTH-300μs
1% DUTY CYCLE
0.1
0
0.2
0.4
0.6
0.8
1
1.2
1.4
FORWARD VOLTAGE (V)
Document Number: DS_D1409003
Version: D14
AR25A thru AR25M
Taiwan Semiconductor

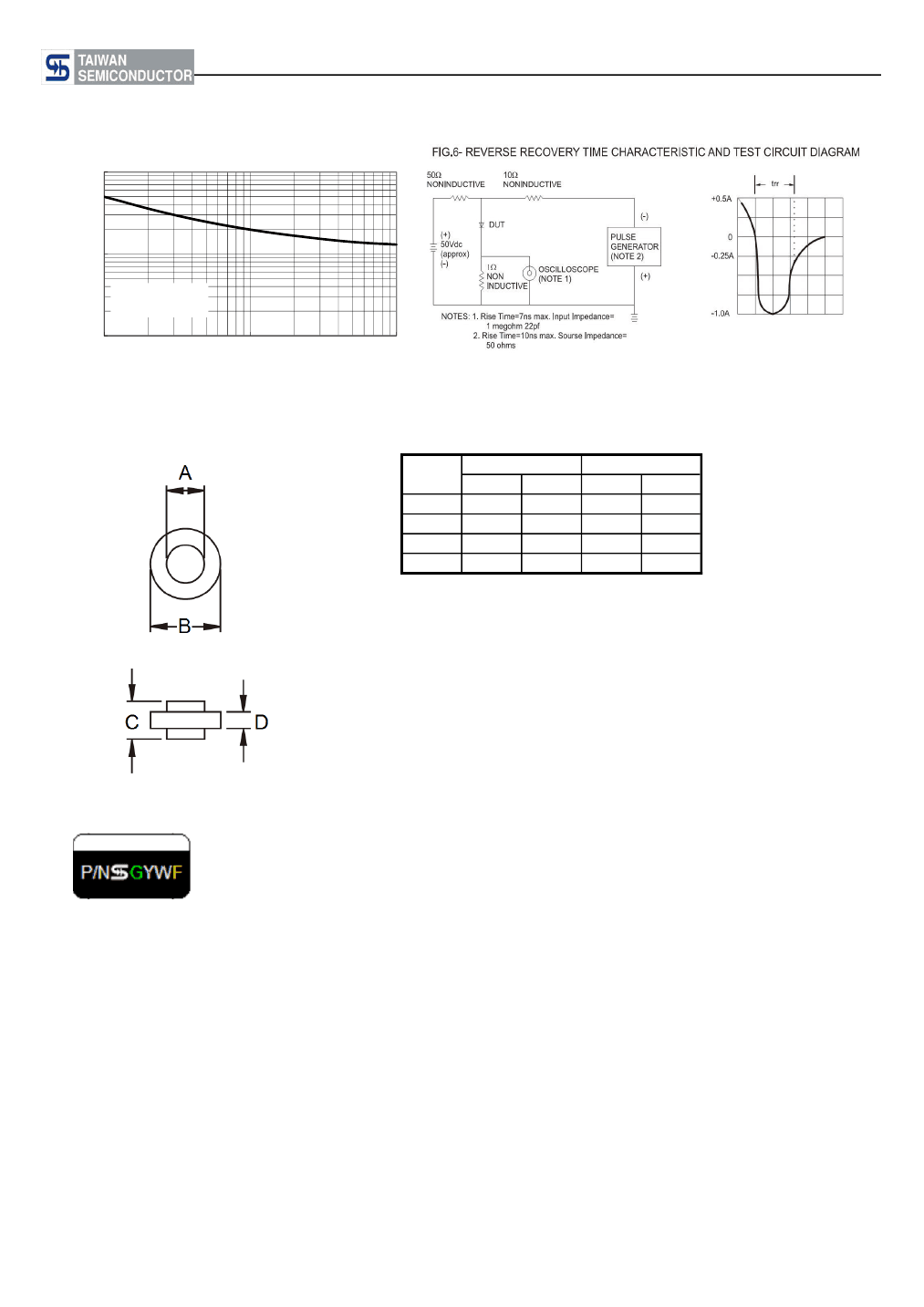

FIG. 5 TYPICAL JUNCTION CAPACITANCE
1000
JUNCTION CAPACITANCE (pF)
100
f=1.0MHz
Vsig=50m Vp-p
10
1
10
REVERSE VOLTAGE (V)
100
PACKAGE OUTLINE DIMENSIONS
AR
DIM.
A
B
C
D
Unit (mm)
Min
5.50
9.70
6.00
4.20
Max
5.70
10.40
6.40
4.70
Unit (inch)
Min
0.217
0.382
0.236
0.165
Max
0.224
0.409
0.252
0.185
MARKING DIAGRAM
P/N =
G=
YW =
F=
Specific Device Code
Green Compound
Date Code
Factory Code
Document Number: DS_D1409003
Version: D14
AR25A thru AR25M
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied,to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or seling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1409003
Version: D14
