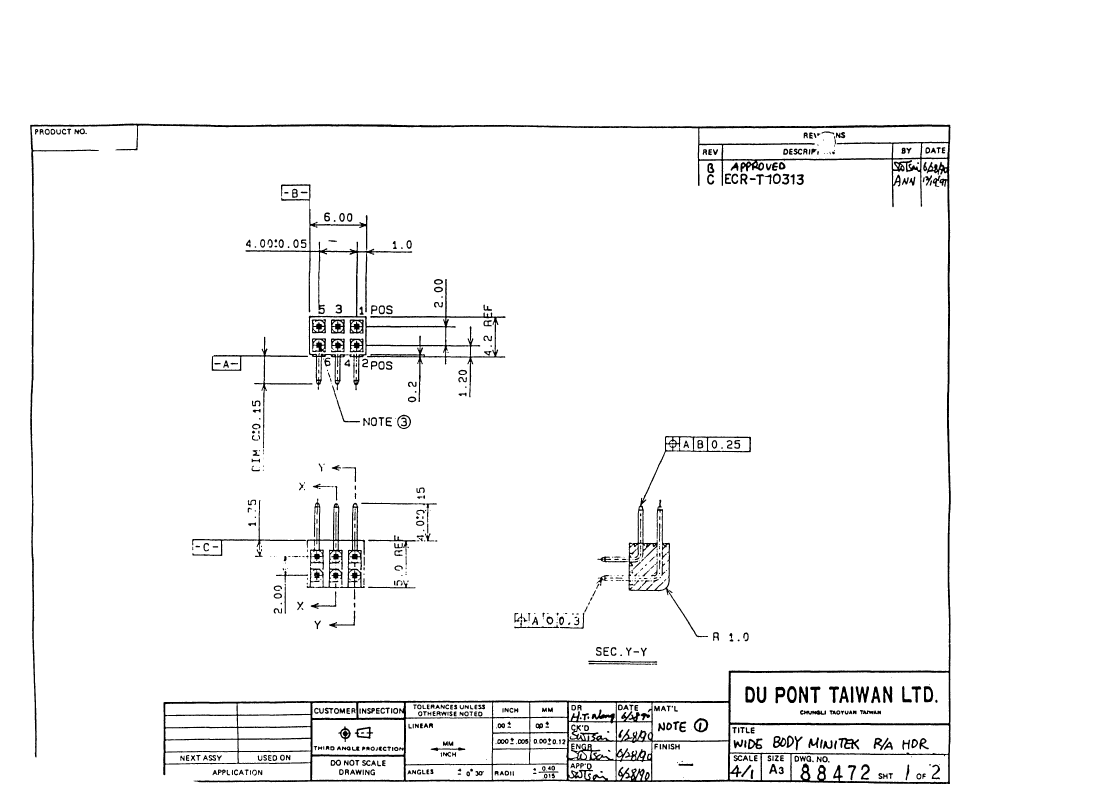

Preview

88472-004: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size179KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

88472-004 Overview

Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal

88472-004 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Other features	POLARIZED
Connector type	BOARD CONNECTOR
Contact completed and terminated	NICKEL PALLADIUM GOLD (30)
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	88472
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

88472-004 Related Products

	88472-004	88472-001	88472-002	88472-003	88472-005	88472-006
Description	Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact completed and terminated	NICKEL PALLADIUM GOLD (30)	NICKEL PALLADIUM GOLD (30)	NICKEL PALLADIUM GOLD (30)	NICKEL PALLADIUM GOLD (30)	NICKEL PALLADIUM GOLD (30)	NICKEL PALLADIUM GOLD (30)
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	88472	88472	88472	88472	88472	88472
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	6	6	6	6	6	6
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Other features	POLARIZED	POLARIZED	POLARIZED	-	-	POLARIZED
