440500007: Description8 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, JACK; CategoryThe connector The connector; File Size258KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

440500007 Overview

8 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, JACK

440500007 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Other features	1 PORT, 8-POSITION EACH
Board mount options	SPLIT BOARD LOCK
body width	0.515 inch
subject depth	0.829 inch
body length	0.622 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	35.584 N
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYAMIDE
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
Number of ports	1
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 06/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

Documents:

3D Model

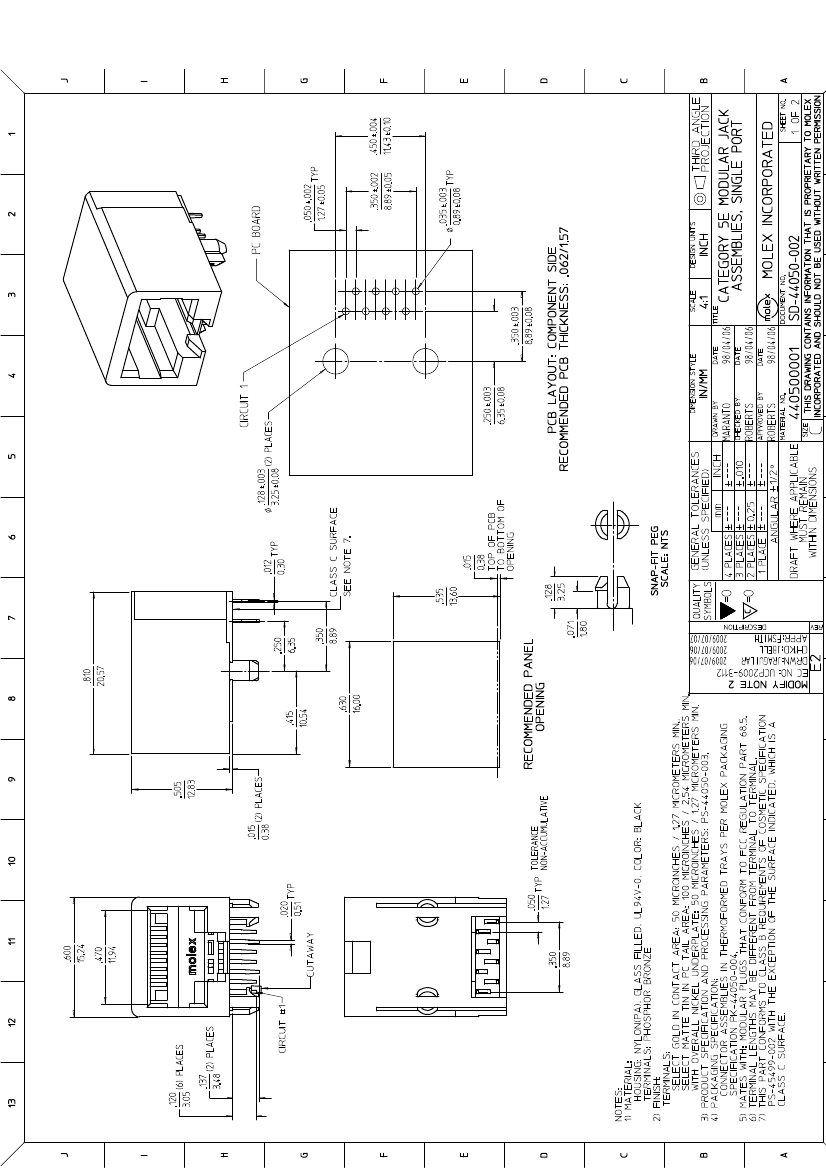

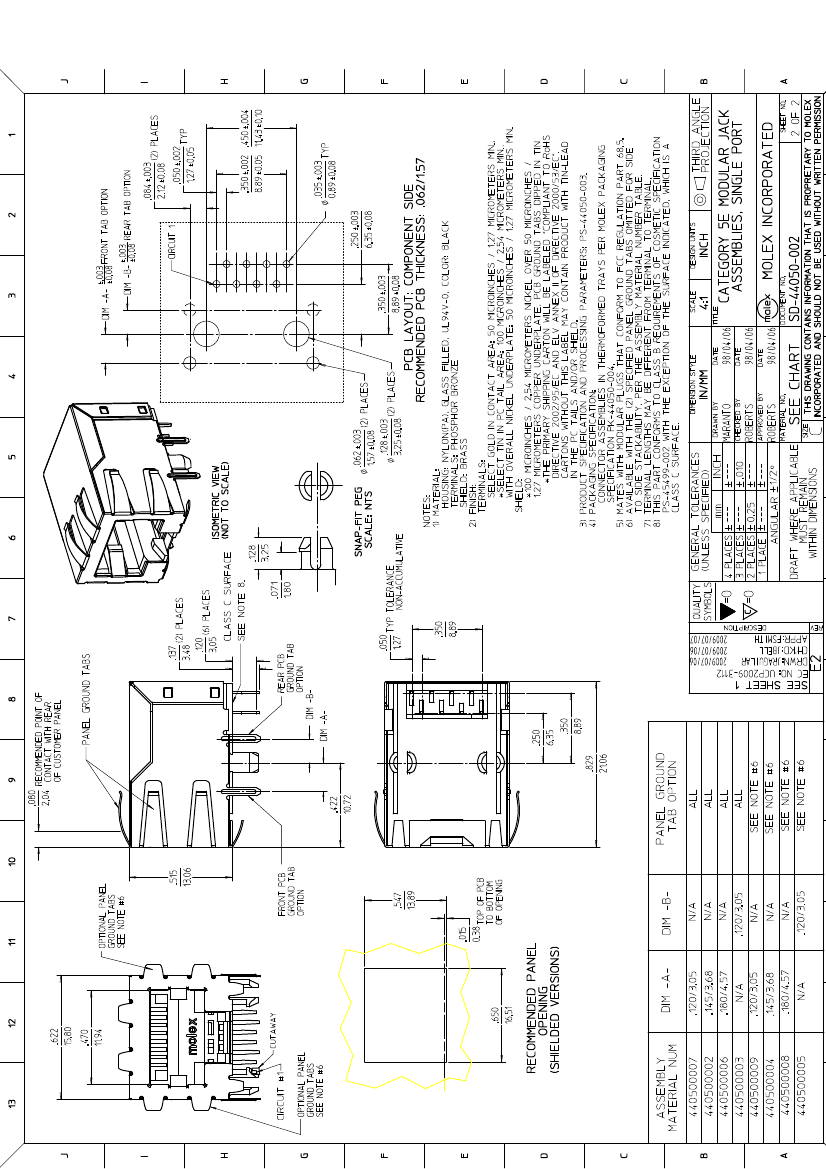

Drawing (PDF)

0440500002

Active

modular_plugs_jacks

Modular Jack, Right Angle, Low Profile, 8/8

Product Specification PS-44050-003 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E107635

General

Product Family

Series

Component Type

Magnetic

Overview

Performance Category

Power over Ethernet (PoE)

Product Name

Modular Jacks/Plugs

44050

PCB Jack

modular_plugs_jacks

N/A

RJ45

EU RoHS

ELV and

Complia

REACH S

Contains

Halogen

Status

Not Halo

Need mo

environm

Physical

Boot Color

Color - Resin

Durability (mating cycles max)

Flammability

Inverted / Top Latch

Lightpipes/LEDs

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Orientation

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Ports

Positions / Loaded Contacts

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Waterproof / Dustproof

Wire/Cable Type

N/A

Black

500

94V-0

None

Brass, Phosphor Bronze

Gold

Tin

High Temperature Thermoplastic

Right Angle (Side Entry)

Yes

0.062 In

1.57 mm

Tray

0.040 In

1.02 mm

0.050 In

1.27 mm

1.25

100

2.5

8/8

Yes

-40°C to +85°C

Through Hole

N/A

Email pro

For a mu

Complian

Please vi

non-prod

44050S

Mates

FCC 68

440500007 Related Products

	440500007	SD-44050-002
Description	8 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, JACK	8 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, JACK
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD AND PANEL	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	BRASS	BRASS, NICKEL PLATED
Total number of contacts	8	8
